Pentair Backwash Valve 1-1/2" Models 5015011 SKT & 5016011 FPT Part Schematic

Part Selector:

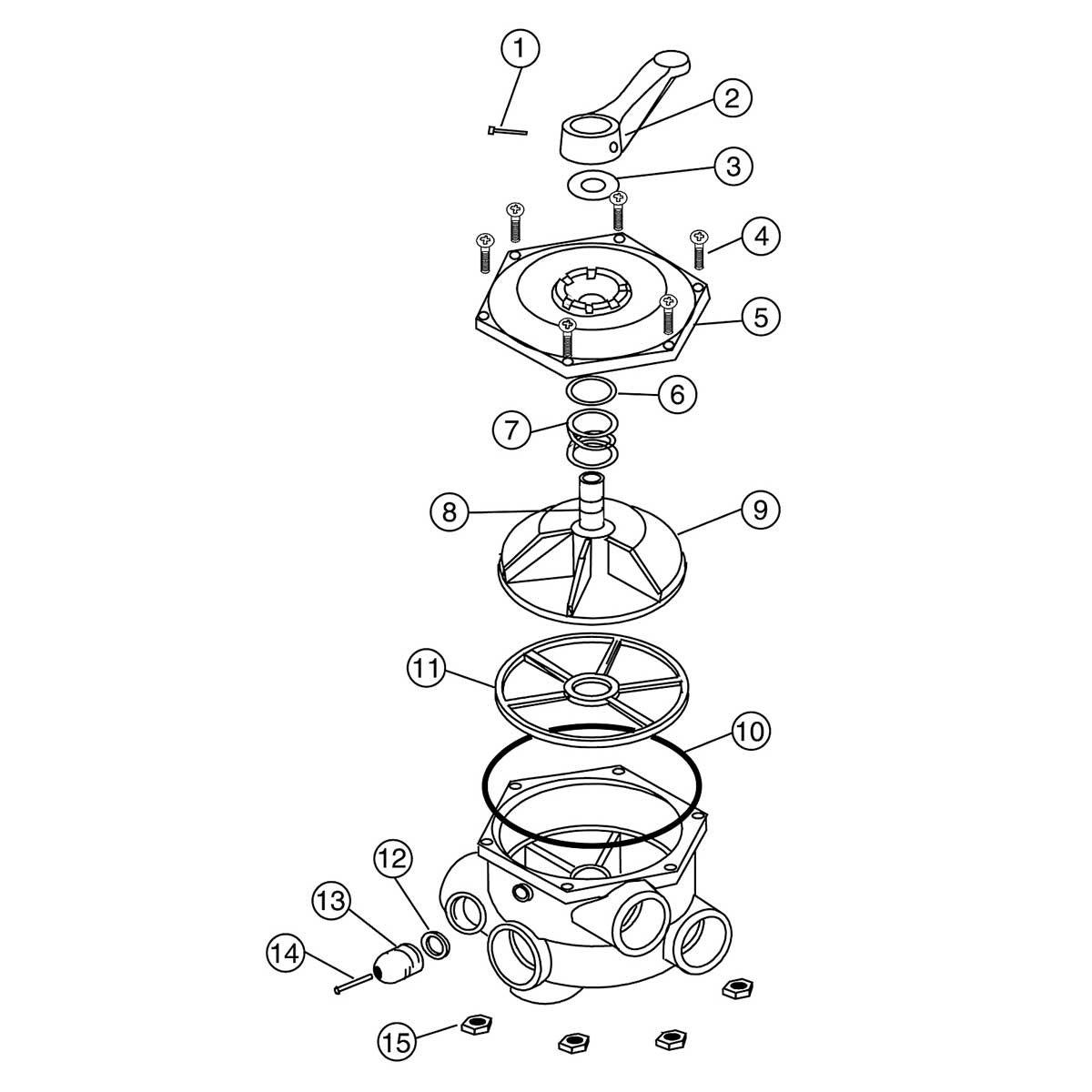

Pentair Backwash Valve 1-1/2" Models 5015011 SKT & 5016011 FPT Part Schematic
(Click to view larger)

Parts:

#1 Pentair - Screw, Handle
Pentair - Screw, Handle
SKU: 44332
Details: SCREW, HANDLE
Availability: In Stock
$2.99

#4 Pentair - Screw, Pan Head
Pentair - Screw, Pan Head
SKU: 609047
Details: SCREW, PAN HEAD
Availability: In Stock
$3.49

#5
Pentair - Lid, Valve with Label
Pentair - Lid, Valve with Label
SKU: 44365
Details: LID, VALVE W/LABEL
Availability: This item is currently not available
$68.99
Out of Stock

#6 Pentair - Washer, 1-15/16in. OD, 1-5/16in. ID, 1/32in. Thick, SS
Pentair - Washer, 1-15/16in. OD, 1-5/16in. ID, 1/32in. Thick, SS
SKU: 602959
Details: WASHER,1-15/16" OD,1-5/16" ID,1/32" THICK,SS
Availability: In Stock
$8.99

#7 Pentair - Spring
Pentair - Spring
SKU: 44792
Details: SPRING
Availability: In Stock
$14.99

#8 Epp - O-Ring, Air Relief Plug
Epp - O-Ring, Air Relief Plug
SKU: 364933
Availability: In Stock
$3.99

#9 Pentair - Rotor
Pentair - Rotor
SKU: 44570
Details: ROTOR
Availability: In Stock
$51.99

#10 All Seals - Replacement O-Ring, Lid, Square Ring, 6-1/8" ID, 6-5/8" OD
All Seals - Replacement O-Ring, Lid, Square Ring, 6-1/8" ID, 6-5/8" OD
SKU: 66715
Details: All Seals Replacement O-Ring, Lid (Square Ring) for Pentair Multiport Valve 1-1/2" Models 5015011 SKT & 5016011 FPT
Availability: In Stock
$5.99

#11 Epp - Replacement Gasket Spider (b)
Epp - Replacement Gasket Spider (b)
SKU: 361977
Details: Shop the Replacement Gasket Spider (b) O-392A online
Availability: In Stock
$9.99

#13 Pentair - Sight Glass
Pentair - Sight Glass
SKU: 44733
Details: SIGHT GLASS
Availability: In Stock
$12.99

#14 Pentair - Screw, Sight Glass
Pentair - Screw, Sight Glass
SKU: 609046
Details: SCREW, SIGHT GLASS
Availability: In Stock
$2.99

#15 Pentair - Nut
Pentair - Nut
SKU: 602960
Details: NUT
Availability: In Stock
$3.99

#0 Pentair - Top Assembly (Lid, Handle, Rotor)
Pentair - Top Assembly (Lid, Handle, Rotor)
SKU: 602078
Details: TOP ASSY.(LID, HANDLE, ROTOR)
Availability: In Stock
$173.99
