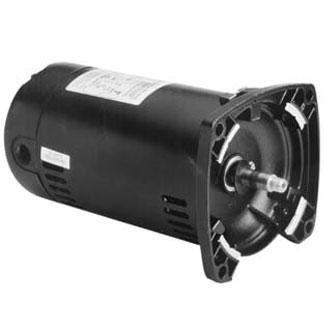

Century A.O. Smith - UQS1102R 48Y Square Flange 1 or 1/6 HP Dual Speed Up-Rated Pool and Spa Pump Motor, 6.1/2.1A 230V
$529.99
The A.O. Smith UQS1102R Two-Compartment Square Flange Pool Motor works efficiently with its two-speed design
More Details
Membership Available
The A.O. Smith UQS1102R Two-Compartment Square Flange Pool Motor works efficiently with its two-speed design
- All Copper Windings
- Auto Protector - Single Speed
- Open Dripproof
- Rotation: CCW Pump End
- Class B Insulation
- 303 Stainless Steel Threaded Shaft
- 50C Ambient
- 60 Hertz
- Capacitor Start Low Speed, PSC High Speed
- UL1081
- Ensure the pool motor is compatible with your pool pump.
- Turn pump power off during replacement.
- Check voltage requirements on your current setup.
- Always replace the mechanical pump seal. It's recommended to replace all gaskets when replacing the motor.
- Turn on the pump to test for leaks and pump operation.
- Please reference additional installation instructions in owner's manual in Guides and Documentation section below.
- Please Note: We recommend professional installation or the manufacturer warranty may be void. See Warranty section below.
The A.O. Smith Two-Compartment Square Flange Pool Motor works efficiently with its two-speed design. It boasts a CCW Rotation on the pump end for installation and is Energy Efficient capacitor start delivers enhanced performance. With horsepower ratings ranging from 3/4-1/8"P to 2-1/3HP, the Two-Compartment Square Flange Pool Motor comes in Full or Up-Rated models and provides long lasting and trustworthy performance. The Two-Compartment Square Flange Pool Motor is used on many Sta-Rite, Red Jacket, Sears Jet and Pool Pumps products. Equipped with the ability to withstand ambient temperatures up to 50C and constructed with and open drip proof enclosure, the Two-Compartment Square Flange Pool Motor is sure to last. This motor does not include a hi/lo switch but the end cover and switch assembly may be purchased separately for remote operation. The Two-Compartment Square Flange Pool Motor also meets California Energy Commission Appliance Regulations 2008 for ultimate efficiency.
Single Phase wiring is basic with an alternating current that delivers efficient operation. Little maintenance is required and provides reliable performance
The different frame types include: C, J, Y, Z, JM, JP, or TCZ. These letters are combined with numbers to define standard specifications including the way the motor mounts onto the pump, its shaft height, and diameter
This motor is designed with standard efficiency, running at a single speed for consistent and reliable operation
| Horsepower: | 1 or 1/6 HP |
| Shaft Type: | Threaded |
| Flange Type: | Square Flange |
| Service Factor: | 1.00 - 1.25 |
| Installation Type: | Residential |
| Phase Type: | Single Phase |
| Voltage: | 230V |
| Speed Settings: | Dual Speed |
| Pool Type: | Spa/Hot Tub |
| Rating Type: | Up-Rated |
| Product Type: | Pool Motor |
| Energy Efficiency: | Standard |
| Motor Frame: | 48 Frame |
| Compatible Pumps: | SP32102EE |
| Compatible Pumps: | 012485 |
| Compatible Pumps: | P2RA5Y |
| Manufacturer: | Century A.O. Smith |
| Warranty: | 1-Year |
| Product Type: | Pool Part |
One Year Warranty from Installation or Two Year Warranty from Manufacture Date, see Owner's Manual for a full description of warranty claims and coverage details.
