Jacuzzi® - TEFC 2 HP Squared Single Speed Pool Motor
$519.99

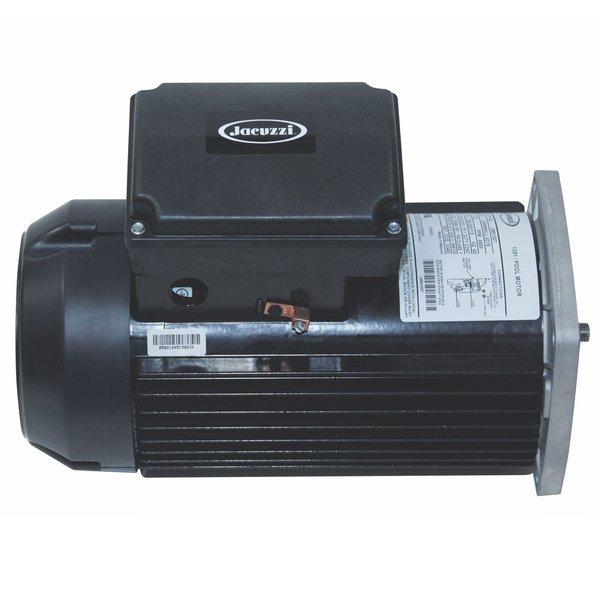

Jacuzzi® 38711 TEFC 2 HP Squared Single Speed Pool Motor provides superior design and technology for in-ground swimming pool pumps.
More Details
Membership Available
Jacuzzi® 38711 TEFC 2 HP Squared Single Speed Pool Motor provides superior design and technology for in-ground swimming pool pumps.
Installation Instructions:
Pool Motor Features
- Replaces the following motors: Regal Beloit SQ1202, A.O. Smith B2843, Bluffton 16361
- Top Mounted Conduit Box Easy to access wiring compartment make install easier than ever
- Totally Enclosed Construction Prevents the intrusion of outside air, debris, and moisture which can help reduce winding failures which is the #1 cause of motor failure
- Finned Aluminum Frame Aluminum fins are naturally corrosion resistant and help dissipate heat promoting cooler operation
- Total HP Rated Ratings in THP make finding the direct replacement motor easy
- Voltage Selection Switch Easily switch voltage on dual voltage models
- Ensure the pool motor is compatible with your pool pump.
- Turn pump power off during replacement.
- Check voltage requirements on your current setup.
- Always replace the mechanical pump seal. It's recommended to replace all gaskets when replacing the motor.
- Turn on the pump to test for leaks and pump operation.
- Please reference additional installation instructions in owner's manual in Guides and Documentation section below.
- Please Note: We recommend professional installation or the manufacturer warranty may be void. See Warranty section below.
Jacuzzi® 38711 TEFC 2 HP Squared Single Speed Pool Motor provides superior design and technology for in-ground swimming pool pumps.
| Horsepower: | 2 HP |
| Voltage: | 208 - 230V |
| Pump Speed: | Single |
| Product Type: | Pool Motor |
| Pool Type: | In Ground |
| Manufacturer: | Jacuzzi |
| Total Horsepower: | 2.60 THP |
