Intermatic - Subpanel with T104M and 300W Transformer
Membership Available

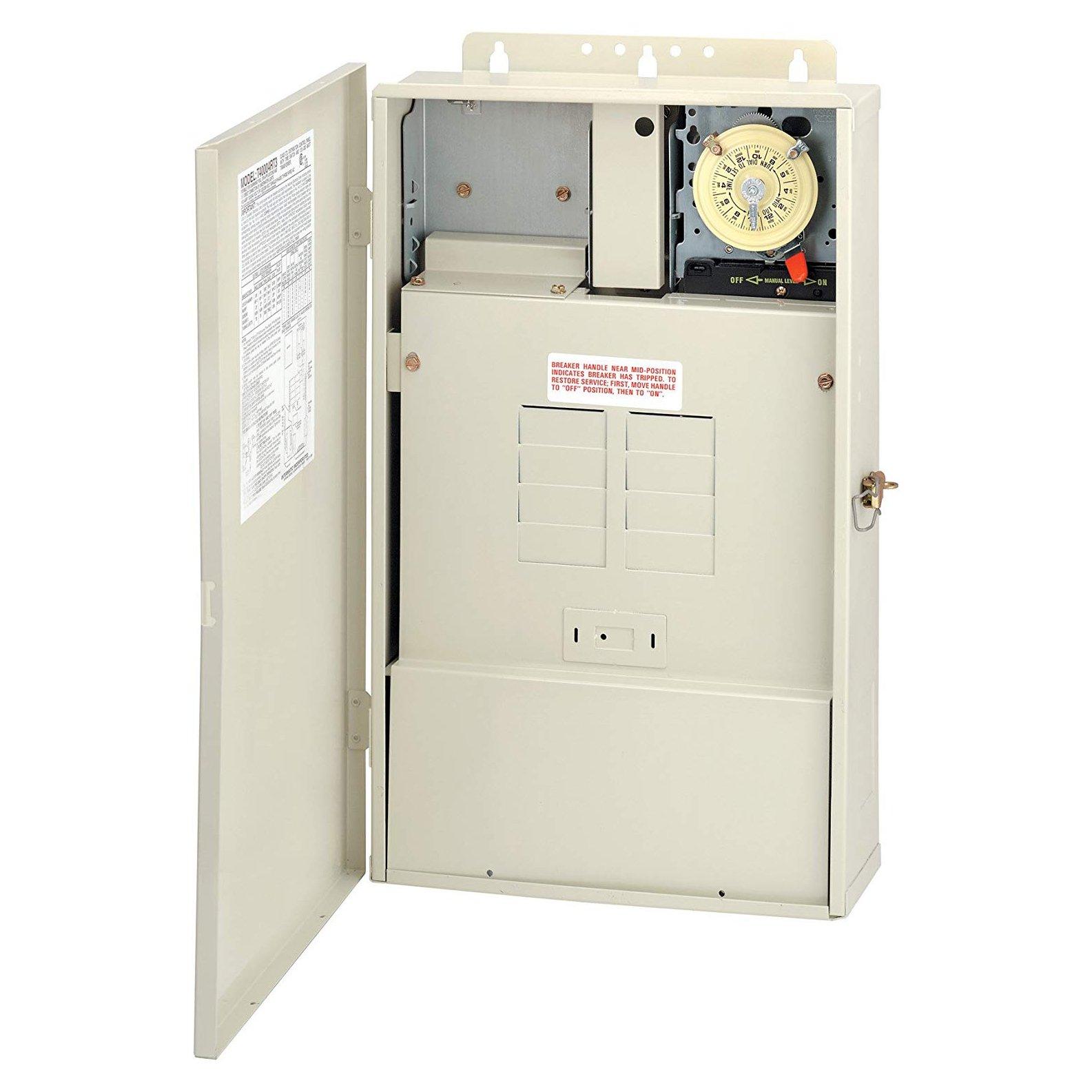

Intermatic Subpanel with T104M and 300W Transformer - T40004RT3
- Case: 20-3/4" (52.7 cm) high x 12-3/4" (32.4 cm) wide x 4-1/4" (10.8 cm) deep, 0.048" steel with electrostatically applied light beige finish.
- Panel Rating T40000RT Series 100 Amp 120-240 VAC or 120-208 VAC single phase 60 HZ
- Time Switch Rating 30 Amp Resistive Inductive, Tungsten or 1000 VA pilot duty each pole 120/208/240 VAC; 2 HP (24 FLA) 120 VAC; 5 HP (28 FLA) 240 VAC
These Panels with Transformer offer an all-in-one, easy to wire and extremely cost effective electrical control center for any pool or spa installation. Inside the enclosure are the time switch, the transformer and other components needed for the completion of this installation. The T4000RT Series panels will accept additional Intermatic mechanisms and/or components.
| Control System Type: | Power Center |
| Voltage: | 120V |
| Product Type: | Automatic Control |
| Manufacturer: | Intermatic |
| Warranty: | 1-Year |
One (1) Year Limited Warranty on Product, see Owner's Manual for a full description of warranty claims and coverage details.
