Pentair Meteor Top Mount Filter System, Post 2009 Part Schematic

Part Selector:

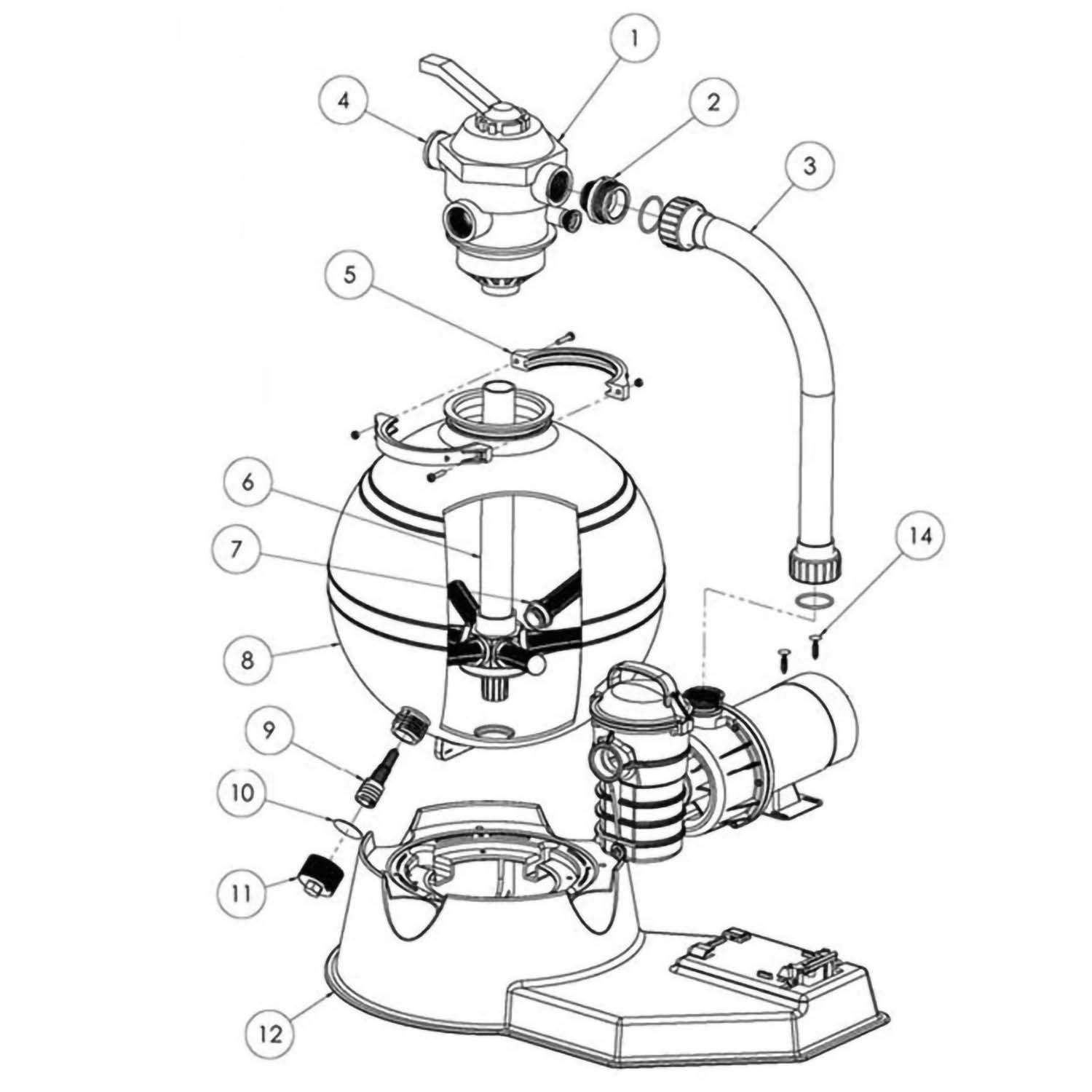

Pentair Meteor Top Mount Filter System, Post 2009 Part Schematic
(Click to view larger)

Parts:

#1 Pentair - 262506 Top Mount Multiport Valve 1-1/2" for Sand Filters
Pentair - 262506 Top Mount Multiport Valve 1-1/2" for Sand Filters
SKU: 223696
Details: The Pentair 262506 Top Mount Multiport Valve 1-1/2" for Sand Filters is designed for maximum performance. For use with Tagelus and Sand Dollar Top Mount Filters
Availability: In Stock
$269.99

#2 Pentair - Adaptor, NPT to Buttress
Pentair - Adaptor, NPT to Buttress
SKU: 365203
Details: Pentair Pac Fab Purex Letro American Adpt Int Thrd To Buttres
Availability: In Stock
$34.99

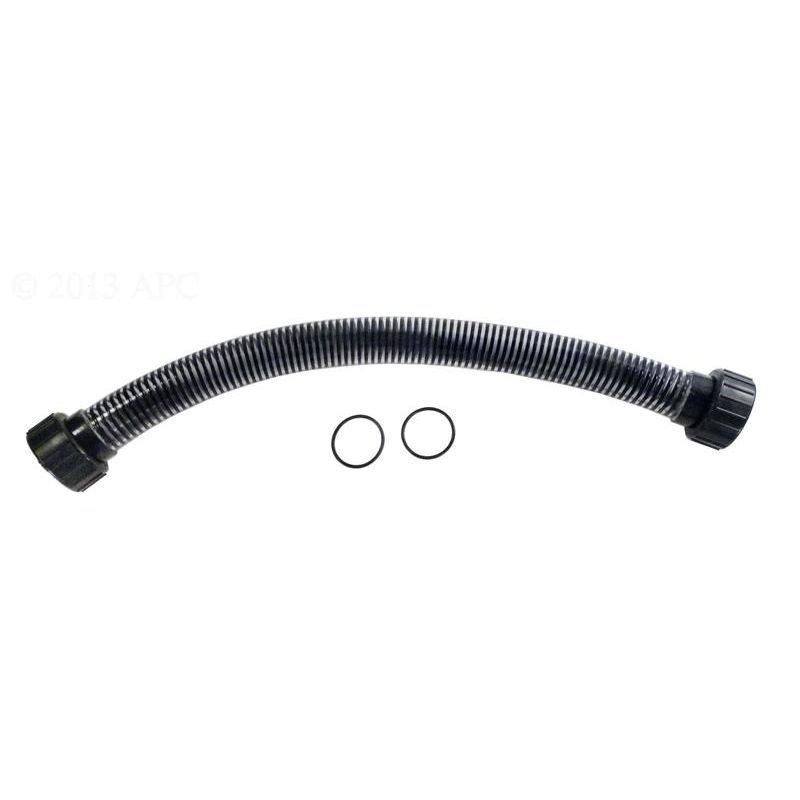

#3 Pentair - Pump to Filter Hose Kit 18in. Meteor 2009/Current
Pentair - Pump to Filter Hose Kit 18in. Meteor 2009/Current
SKU: 675749
Details: PUMP TO FILTER HOSE KIT 18" METEOR 2009/CURRENT
Availability: In Stock
$89.99

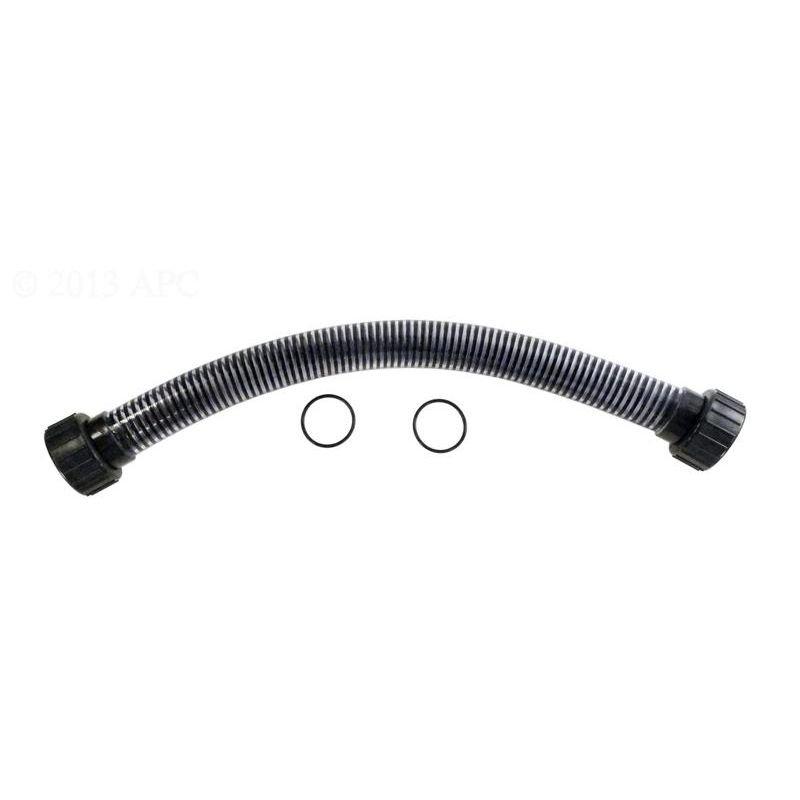

#3 Pentair - Pump to Filter Hose Kit 20in. Meteor 2009/Current
Pentair - Pump to Filter Hose Kit 20in. Meteor 2009/Current
SKU: 632425
Details: PUMP TO FILTER HOSE KIT 20" METEOR 2009/CURRENT
Availability: In Stock
$99.99

#3 Pentair - Pump to Filter Hose Kit 22in. Meteor 2009/Current
Pentair - Pump to Filter Hose Kit 22in. Meteor 2009/Current
SKU: 315855
Details: PUMP TO FILTER HOSE KIT 22" METEOR 2009/CURRENT
Availability: In Stock
$105.99

#5 Pentair - Valve Clamp, Plastic
Pentair - Valve Clamp, Plastic
SKU: 603418
Details: VALVE CLAMP, PLASTIC
Availability: In Stock
$33.99

#6
Pentair - Asy Stndp Metr22
Pentair - Asy Stndp Metr22
SKU: 407962
Details: Pentair Asy Stndp Metr22 is a replacement pool part to keep your equipment running strong.
Availability: This item is currently not available
$187.99
Out of Stock

#6 Pentair - Standpipe Assembly, 20in. Meteor After 10-2004
Pentair - Standpipe Assembly, 20in. Meteor After 10-2004
SKU: 631232
Details: STANDPIPE ASSEMBLY, 20" METEOR AFTER 10-2004
Availability: In Stock
$209.99

#6 Pentair - Standpipe Assembly, 18in. Meteor After 10-2004
Pentair - Standpipe Assembly, 18in. Meteor After 10-2004
SKU: 315851
Details: STANDPIPE ASSEMBLY, 18" METEOR AFTER 10-2004
Availability: In Stock
$145.99

#7 Pentair - Lateral, for Ta/Tr/Sd60 and Sd80 1/4 Turn Twist
Pentair - Lateral, for Ta/Tr/Sd60 and Sd80 1/4 Turn Twist
SKU: 622309
Details: LATERAL, FOR TA/TR/SD60 AND SD80 1/4 TURN TWIST
Availability: In Stock
$11.99

#7 Pentair - Lateral, Sd35, Sd40
Pentair - Lateral, Sd35, Sd40
SKU: 622281
Details: LATERAL, SD35, SD40
Availability: In Stock
$9.99

#8
Pentair - Replacement Tank 18"  (e)
Pentair - Replacement Tank 18" (e)
SKU: 403210
Details: Replacement Replacement Tank 18" (e) for the Pentair Meteor Top Mount Filter.
Availability: This item is currently not available
$399.99
Out of Stock

#10 Pentair - Gasket, Sand Drain
Pentair - Gasket, Sand Drain
SKU: 631238
Details: GASKET, SAND DRAIN
Availability: In Stock
$7.99

#11
Pentair - Drain Cap
Pentair - Drain Cap
SKU: 622424
Details: DRAIN CAP
Availability: This item is currently not available
$30.99
Out of Stock

#12 Pentair - System Base 2009/Current
Pentair - System Base 2009/Current
SKU: 315859
Details: SYSTEM BASE 2009/CURRENT
Availability: In Stock
$123.99

#12
Pentair - System Base, CSA Pump
Pentair - System Base, CSA Pump
SKU: 369062
Availability: This item is currently not available
$119.99
Out of Stock

#14 Pentair - Base Hardware Kit
Pentair - Base Hardware Kit
SKU: 315864
Details: BASE HARDWARE KIT
Availability: In Stock
$23.99

#0
All Seals - Replacement Valve Body O-Ring for Pentair Pac Fab Hi-Flo/Top Mount Multiport Valve
All Seals - Replacement Valve Body O-Ring for Pentair Pac Fab Hi-Flo/Top Mount Multiport Valve
SKU: 608174
Details: All Seals Replacement Valve Body O-Ring for Pentair Pac Fab Hi-Flow Top Mount Multiport Valve
Availability: This item is currently not available
$7.99
Out of Stock

#0 Pentair - Flex Hose Kit, 12 Ft
Pentair - Flex Hose Kit, 12 Ft
SKU: 448360
Details: FLEX HOSE KIT, 12 FT
Availability: In Stock
$207.99

#0 Pentair - Flex Hose Kit, 6 Ft
Pentair - Flex Hose Kit, 6 Ft
SKU: 323997
Details: This Pentair 155151 Flex Hose Kit, 6 Ft is a filter pool part.
Availability: In Stock
$134.99
