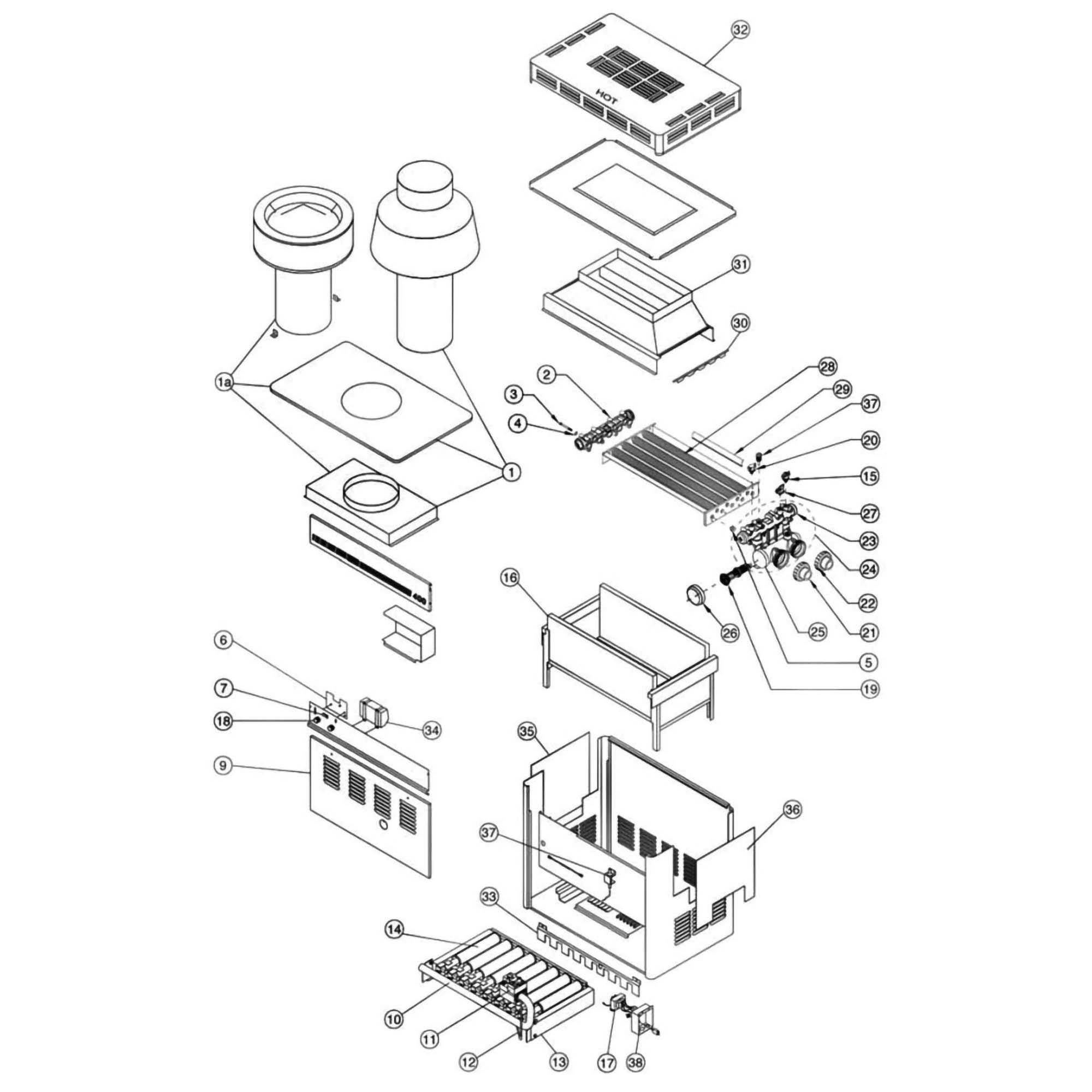

Pentair Heater MiniMax CH Series MiniMax CH 150 IID Model Parts Breakdown
Part Selector:
(Click to view larger)
Parts:
#1
Pentair - Indoor Drafthood 150 Mmx Plus
SKU:
315875
Details:
INDOOR DRAFTHOOD 150 MMX PLUS
Availability:
In Stock
$199.99
#2
Pentair - Return Header Only, (Gaskets Not Included)
SKU:
622584
Details:
RETURN HEADER ONLY, (GASKETS NOT INCLUDED)
Availability:
This item is currently not available
$109.99
Out of Stock
#3
$2.99
#5
All Seals - Replacement Header Gasket for Pentair MiniMax and PowerMax
SKU:
52895
Details:
All Seals Replacement Header Gasket for Pentair MiniMax and PowerMax Pool and Spa Heaters
Availability:
In Stock
$1.99
#5
Epp - Replacement Gasket Tube seal
SKU:
369438
Details:
Shop the Replacement Gasket Tube seal G-74 online
Availability:
In Stock
$1.99
#6
Pentair - Thermostat, Circuit Board Lid Mm '97
SKU:
604075
Details:
THERMOSTAT, CIRCUIT BOARD IID MM '97
Availability:
In Stock
$289.99
#7
$15.99
#9
Pentair - Control Panel Door, Millivolt 150
SKU:
403176
Availability:
This item is currently not available
$199.99
Out of Stock
#10
Pentair - Manifold Burner -150
SKU:
408665
Details:
MANIFOLD BURNER -150
Availability:
This item is currently not available
$78.99
Out of Stock
#11
Pentair - Gas Valve, 120-400 Nat.Gas Iid
SKU:
605168
Details:
GAS VALVE, 120-400 NAT.GAS IID
Availability:
In Stock
$399.99
#11
Pentair - Gas Valve, 120-400 Propane Iid
SKU:
605122
Details:
GAS VALVE, 120-400 LP IID
Availability:
This item is currently not available
$399.99
Out of Stock
#13
Pentair - 4 INCH LARGE FACE STAINLESS S
SKU:
406615
Details:
BURNER TRAY ASSY. 150 NAT. IID
Availability:
This item is currently not available
$581.86
Out of Stock
#13
Pentair - Burner Tray Assembly 150 Propane Iid
SKU:
407774
Details:
BURNER TRAY ASSY. 150 LP IID
Availability:
This item is currently not available
$599.38
Out of Stock
#14
Pentair - Burner, 50K Btu 150, 250, 400
SKU:
605104
Details:
BURNER, 50K BTU 150, 250, 400
Availability:
This item is currently not available
$119.99
Out of Stock
#15
Pentair - Water Pressure Switch for UltraTemp
SKU:
622545
Details:
Replacement Water Pressure Switch for the Pentair UltraTemp Pool and Spa Heat Pump.
Availability:
In Stock
$84.99
#16
Pentair - Combustion Chamber, Assembly -150
SKU:
605174
Details:
COMBUSTION CHAMBER, ASSY. -150
Availability:
This item is currently not available
$369.99
Out of Stock
#17
Pentair - Transformer, 1384C - Dual Voltage
SKU:
605201
Details:
TRANSFORMER, 1384C - DUAL VOLTAGE
Availability:
This item is currently not available
$95.99
Out of Stock
#18
$18.99
#19
Pentair - Flow Valve Assembly
SKU:
622709
Details:
FLOW VALVE ASSY
Availability:
This item is currently not available
$274.99
Out of Stock
#20
Pentair - Sensor, High Limit 115 Auto Nt
SKU:
622489
Details:
SENSOR, HIGH LIMIT 115 AUTO NT
Availability:
In Stock
$69.99
#21
Pentair - Adapter, Bulkhead, 2in. Nt Std
SKU:
622378
Details:
ADAPTER, BULKHEAD, 2" NT STD
Availability:
In Stock
$22.99
#22
$23.99
#23
$84.99
#24
$529.99
#25
$99.99
#26
Pentair - Cap, Main Manifold Bottom
SKU:
622332
Details:
CAP, MAIN MANIFOLD BOTTOM
Availability:
In Stock
$19.99
#27
Pentair - Sensor, High Limit 150 Auto Nt
SKU:
622496
Details:
SENSOR, HIGH LIMIT 150 AUTO NT
Availability:
In Stock
$69.99
#28
Pentair - Heat Exchanger Only, Model 150
SKU:
622839
Details:
HEAT EXCHANGER ONLY, MODEL 150
Availability:
This item is currently not available
$609.99
Out of Stock
#28
Pentair - Heat Exchanger with Heads, Model 150
SKU:
622871
Details:
HEAT EXCHANGER WITH HEADS, MODEL 150
Availability:
This item is currently not available
$829.99
Out of Stock
#29
Pentair - Baffle, Minimax 350, Single
SKU:
622272
Details:
BAFFLE, MINIMAX 350. Comes with one Baffle only.
Availability:
In Stock
$6.99
#30
Pentair - Baffle Hold Down (2 Req. On Model 400)
SKU:
407788
Details:
BAFFLE HOLD DOWN (2 req. on model 400)
Availability:
This item is currently not available
$7.63
Out of Stock
#31
Pentair - Flue Collector, Pentair Minimax/Minimax Plus/PowerMax 150
SKU:
403172
Details:
Pentair Flue Collector, Pentair Minimax/Minimax Plus/PowerMax 150 is a replacement pool part to keep your equipment running strong.
Availability:
This item is currently not available
$319.99
Out of Stock
#32
Pentair - Replacement Outdoor top assy. 150
SKU:
403240
Details:
Shop the Replacement Outdoor top assy. 150 470471 online
Availability:
This item is currently not available
$599.99
Out of Stock
#34
$419.99
#34
Pentair - Module, Prop. Gas S8600H
SKU:
605217
Details:
MODULE, PROP. GAS S8600H
Availability:
In Stock
$449.99
#36
Pentair - Replacement Panel in/out
SKU:
403278
Details:
Shop the Replacement Panel in/out 472127 online
Availability:
This item is currently not available
$209.99
Out of Stock
#37
Pentair - Thermistor Probe for UltraTemp
SKU:
622500
Details:
Replacement Thermistor Probe for the Pentair UltraTemp Pool and Spa Heat Pump.
Availability:
In Stock
$71.99
#38
$49.99
#0
Pentair - Power Element
SKU:
605070
Details:
POWER ELEMENT
Availability:
This item is currently not available
$109.99
Out of Stock
#0
Pentair - Pilot Generator, Q313A with Clip Millivolt
SKU:
605082
Details:
PILOT GENERATOR, Q313A W/CLIP MILLIVOLT
Availability:
In Stock
$139.99
#0
Pentair - Thermal Cutoff (Fuse) / Fusible Link
SKU:
605222
Details:
THERMAL CUTOFF (FUSE) / FUSIBLE LINK
Availability:
In Stock
$29.99
#0
Pentair - Pilot Mmx Mv
SKU:
603881
Details:
PILOT MMX MV
Availability:
This item is currently not available
$81.99
Out of Stock
#0
Pentair - Orifice #30 Main Burner Nat 0-2999 Ft
SKU:
605167
Details:
ORIFICE #30 MAIN BURNER NAT 0-2999 FT
Availability:
In Stock
$9.99
#0
$89.99
#0
Pentair - Pilot Electrode Only
SKU:
903937
Details:
PILOT ELECTRODE ONLY
Availability:
This item is currently not available
$126.99
Out of Stock
#0
$11.99
#0
Pentair - Pilot Rainshield
SKU:
407790
Details:
PILOT RAINSHIELD
Availability:
This item is currently not available
$59.99
Out of Stock
#0
$1.99
#0
$2.99
#0
Pentair - Screw 6 x 1/4 inch (a)
SKU:
403162
Availability:
This item is currently not available
$2.99
Out of Stock
#0
Pentair - Screw, Pentair Minimax/Minimax Plus/PowerMax, 8 x 1/2"
SKU:
403161
Details:
Pentair Screw, Pentair Minimax/Minimax Plus/PowerMax, 8 x 1/2" is a replacement pool part to keep your equipment running strong.
Availability:
This item is currently not available
$2.99
Out of Stock
#0
Pentair - Replacement Bracket adapter Q379 pilot MV (a)
SKU:
633306
Details:
Shop the Replacement Bracket adapter Q379 pilot MV (a) 471271 online
Availability:
In Stock
$32.99
#0
Pentair - Replacement Clips for wire harness (a)
SKU:
407145
Details:
Shop the Replacement Clips for wire harness (a) 471277 online
Availability:
In Stock
$7.99
