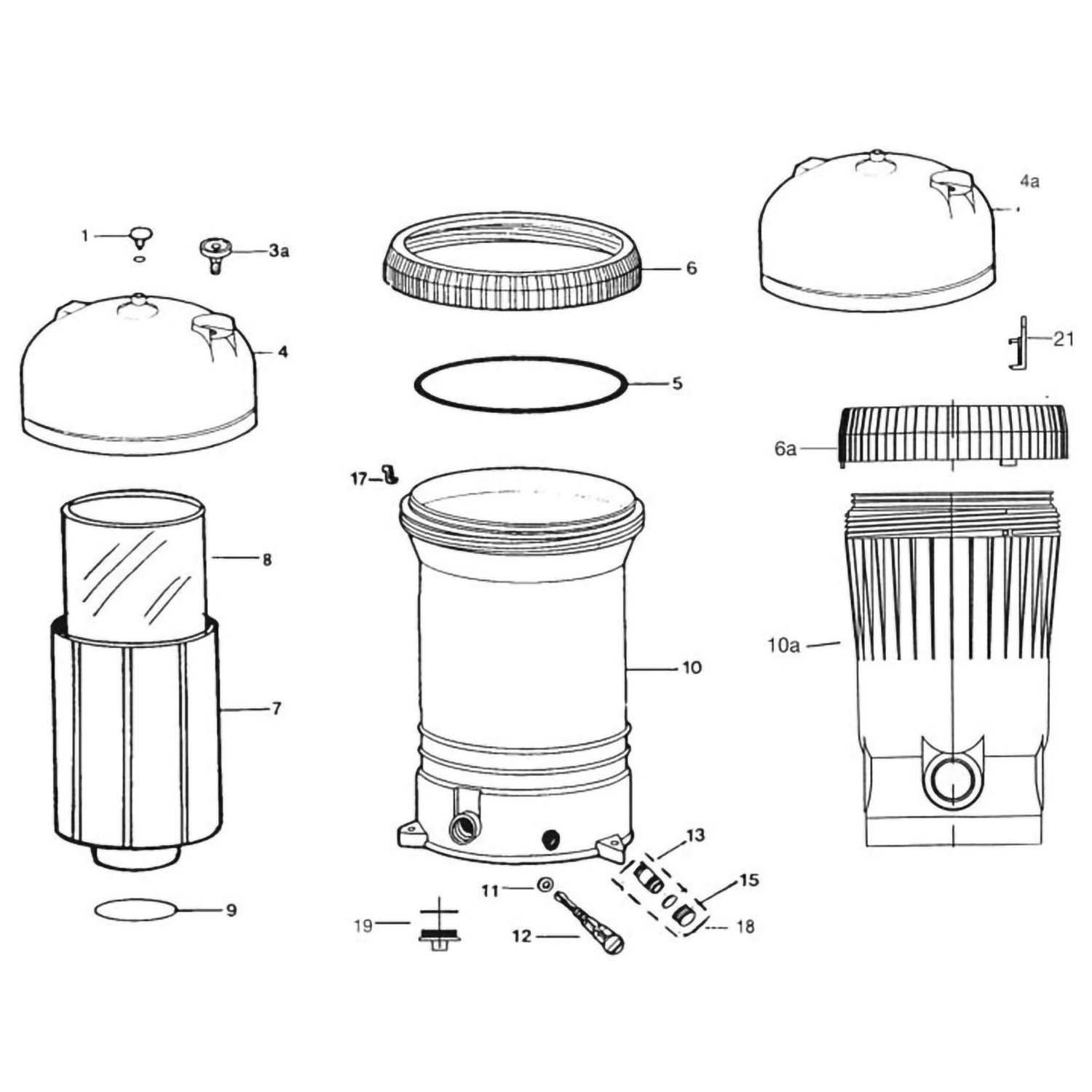

Jacuzzi Dirtbag Separation Tanks Part Schematic

Part Selector:

Jacuzzi Dirtbag Separation Tanks Part Schematic
(Click to view larger)

Parts:

#1 Carvin - Valve - Air Bleeder
Carvin - Valve - Air Bleeder
SKU: 601702
Availability: In Stock
$10.99

#3 Jacuzzi® - Pressure Gauge
Jacuzzi® - Pressure Gauge
SKU: 368702
Availability: In Stock
$52.99

#4 Carvin - Cover, CFR 75, 150 and Ls 40, 70
Carvin - Cover, CFR 75, 150 and Ls 40, 70
SKU: 448250
Details: COVER, CFR 75, 150 & LS 40, 70
Availability: In Stock
$94.99

#4 Carvin - Cover, Av-80/Sher160
Carvin - Cover, Av-80/Sher160
SKU: 448958
Details: COVER, AV-80/SHER160
Availability: In Stock
$188.99

#5 All Seals - Replacement Filter Tank O-Ring for Jacuzzi CFR, SherLok and Landslide
All Seals - Replacement Filter Tank O-Ring for Jacuzzi CFR, SherLok and Landslide
SKU: 66320
Details: All Seals Replacement Tank O-Ring for Jacuzzi CFR, SherLok and Landslide Pool Filters
Availability: In Stock
$5.99

#5 Pentair - O-Ring, Cover
Pentair - O-Ring, Cover
SKU: 675267
Availability: In Stock
$30.99

#6 Carvin - Nut
Carvin - Nut
SKU: 601703
Details: LOCK NUT (Jacuzzi® FILTERS)
Availability: In Stock
$59.99

#6 Carvin - Filter Nut
Carvin - Filter Nut
SKU: 601692
Details: FILTER NUT
Availability: In Stock
$69.99

#7

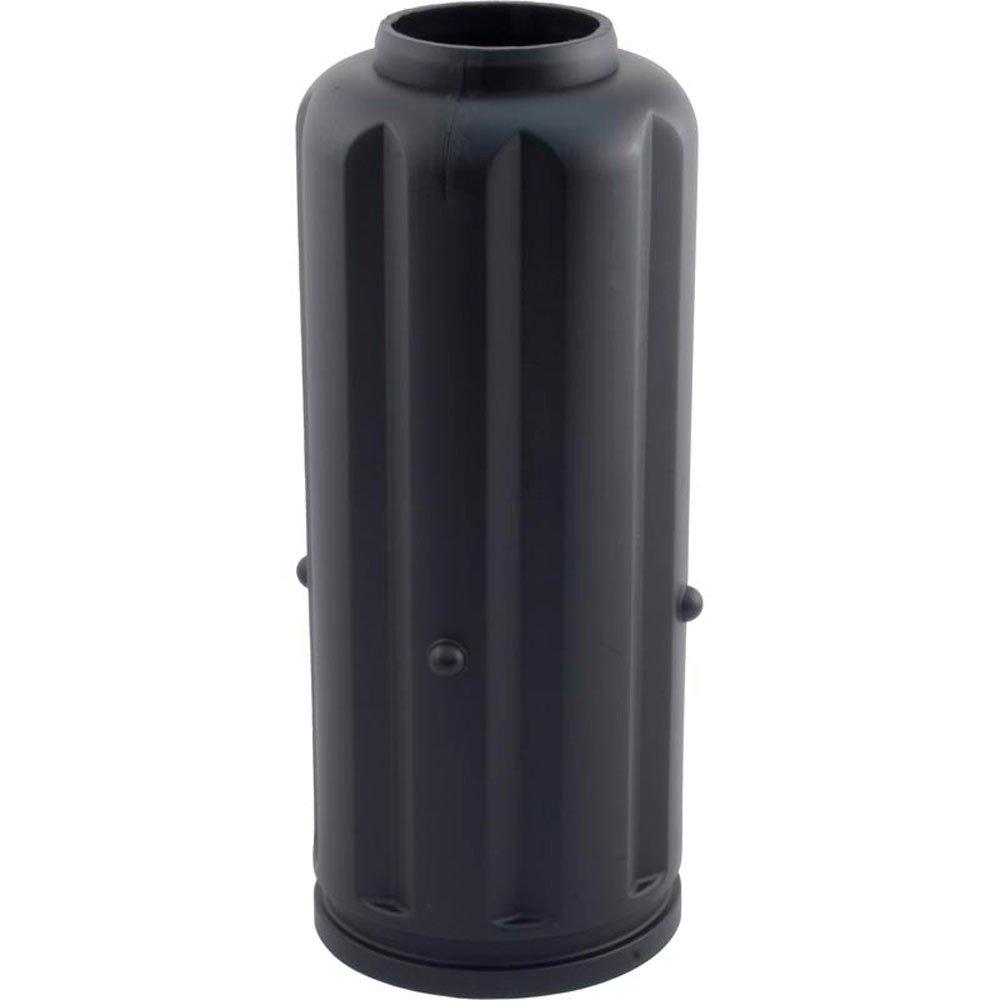

Carvin - Replacement Support tube
Carvin - Replacement Support tube
SKU: 675117
Details: Shop the Replacement Support tube 42351304R online
Availability: This item is currently not available
$126.99
Out of Stock

#11 Jacuzzi® - O-Ring, pre 06/93
Jacuzzi® - O-Ring, pre 06/93
SKU: 366649
Availability: In Stock
$2.99

#13 Carvin - Drain Assembly
Carvin - Drain Assembly
SKU: 601693
Details: DRAIN ASSEMBLY
Availability: In Stock
$15.99

#15 Carvin - Cap - Drain with Gasket
Carvin - Cap - Drain with Gasket
SKU: 601832
Details: CAP, DRAIN WITH GASKET
Availability: In Stock
$13.99

#17 Carvin - Tab - Locking
Carvin - Tab - Locking
SKU: 620339
Details: TAB LOCKING (EACH)
Availability: In Stock
$9.99

#19 Carvin - Plug - 2in. with Gasket
Carvin - Plug - 2in. with Gasket
SKU: 675127
Details: PLUG, 2" W/GASKET
Availability: In Stock
$10.99

#19 Carvin - Plug - 1-1/2in. with Gasket
Carvin - Plug - 1-1/2in. with Gasket
SKU: 410549
Details: PLUG, 1 1/2" W/GASKET
Availability: In Stock
$17.99

#21 Carvin - Cover Latch
Carvin - Cover Latch
SKU: 675125
Details: COVER LATCH
Availability: In Stock
$7.99
