Hayward GM 140 Series Part Schematic

Part Selector:

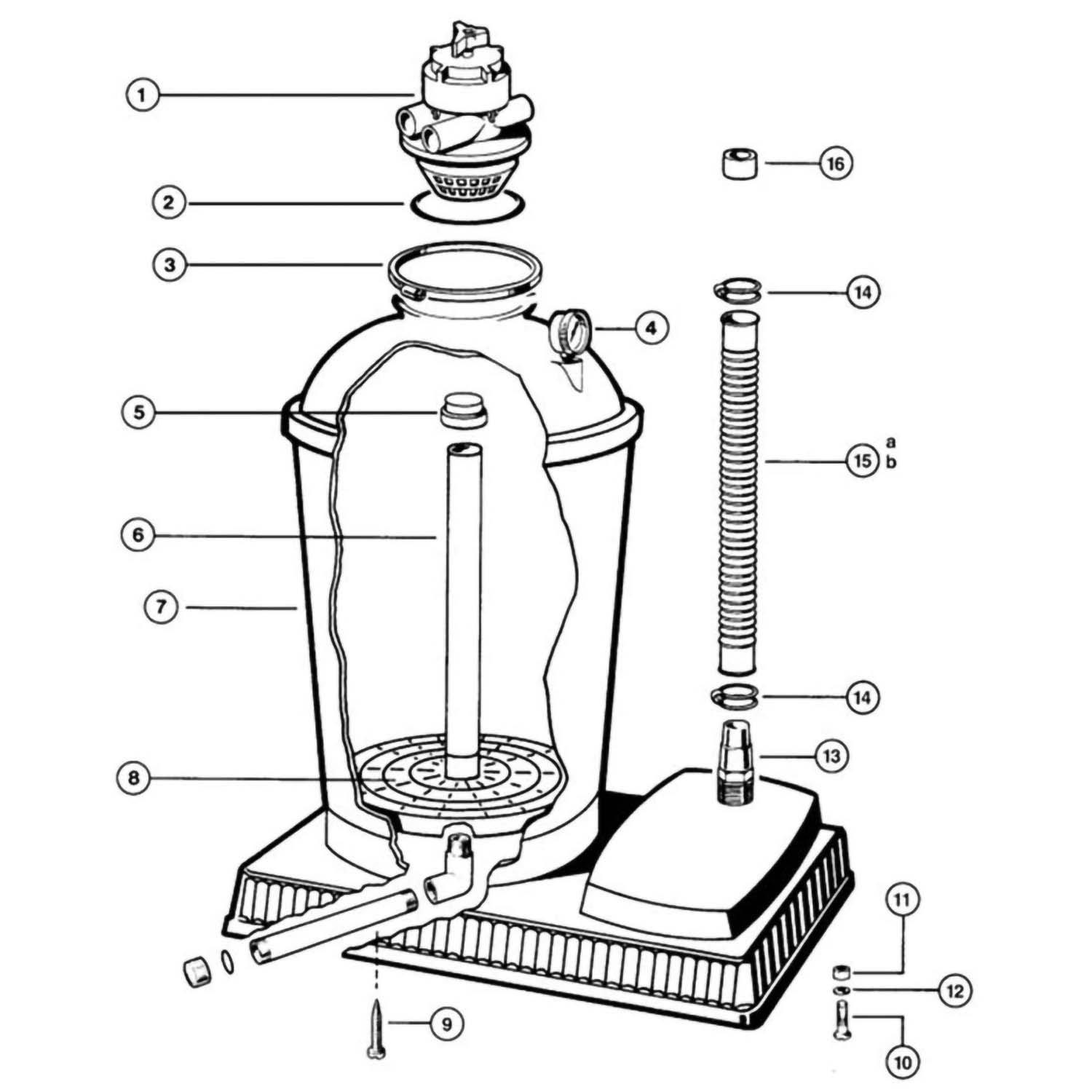

Hayward GM 140 Series Part Schematic
(Click to view larger)

Parts:

#3 Hayward - Clamp, Flange
Hayward - Clamp, Flange
SKU: 601659
Details: CLAMP, FLANGE
Availability: In Stock
$54.99

#4 Hayward - Gauge, Pressure 1/4in. Bottom Connection NPT 0-60 PSI 2in. Face OEM
Hayward - Gauge, Pressure 1/4in. Bottom Connection NPT 0-60 PSI 2in. Face OEM
SKU: 44516
Details: GAUGE, PRESSURE 1/4" BOTTOM CONNECTION NPT 0-60 PSI 2" FACE HAYWARD OEM
Availability: In Stock
$29.99

#10
Hayward - Replacement 5/16" x 1" Carriage Bolt
Hayward - Replacement 5/16" x 1" Carriage Bolt
SKU: 403017
Details: Shop the Replacement 5/16" x 1" Carriage Bolt GMX142Z8 online
Availability: This item is currently not available
$2.99
Out of Stock

#15
Hayward - Pump Connecting Hose-Ribbed, 1-1/4in. X 24
Hayward - Pump Connecting Hose-Ribbed, 1-1/4in. X 24
SKU: 601643
Details: PUMP CONNECTING HOSE-RIBBED, 1 1/4"X 24
Availability: This item is currently not available
$19.79
Out of Stock

#16 Hayward - Replacement Hose Bushing 1-1/2" x 1-1/4"
Hayward - Replacement Hose Bushing 1-1/2" x 1-1/4"
SKU: 402973
Details: Shop the Replacement Hose Bushing 1-1/2" x 1-1/4" GMX142Z4 online
Availability: In Stock
$5.99
