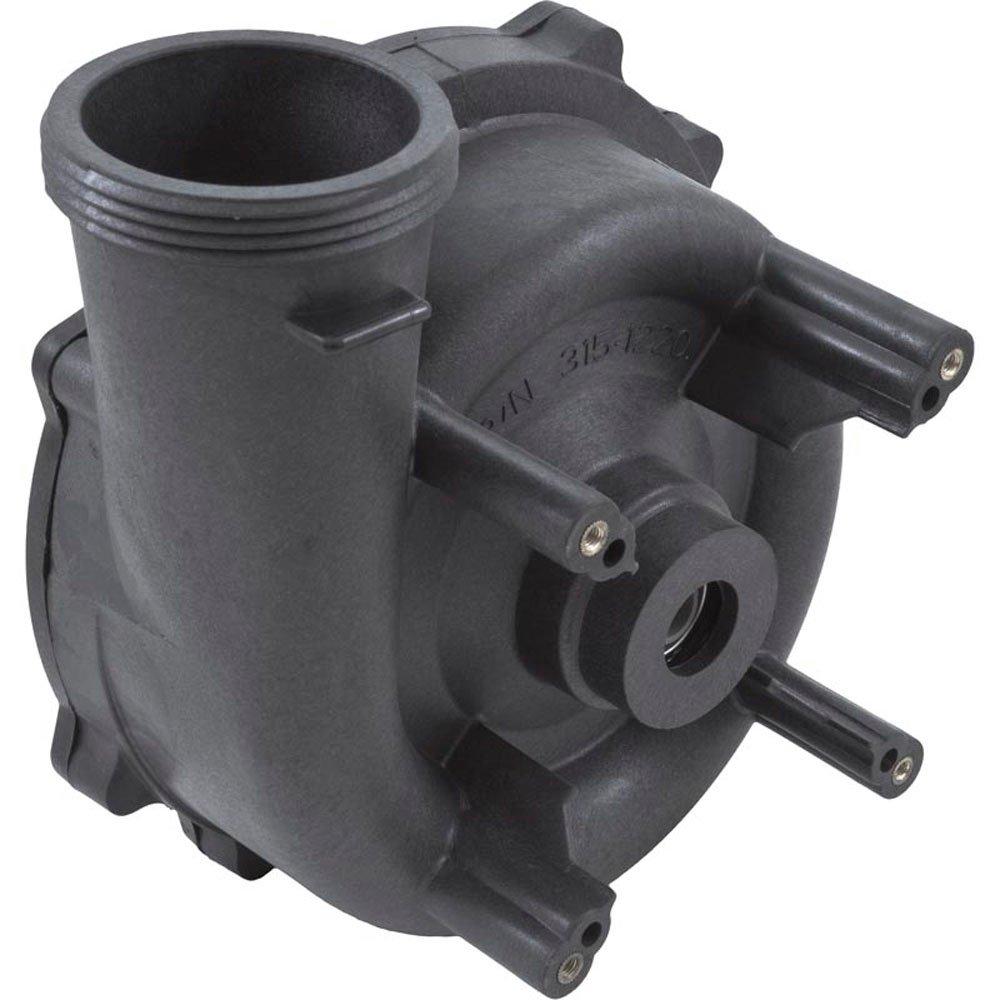

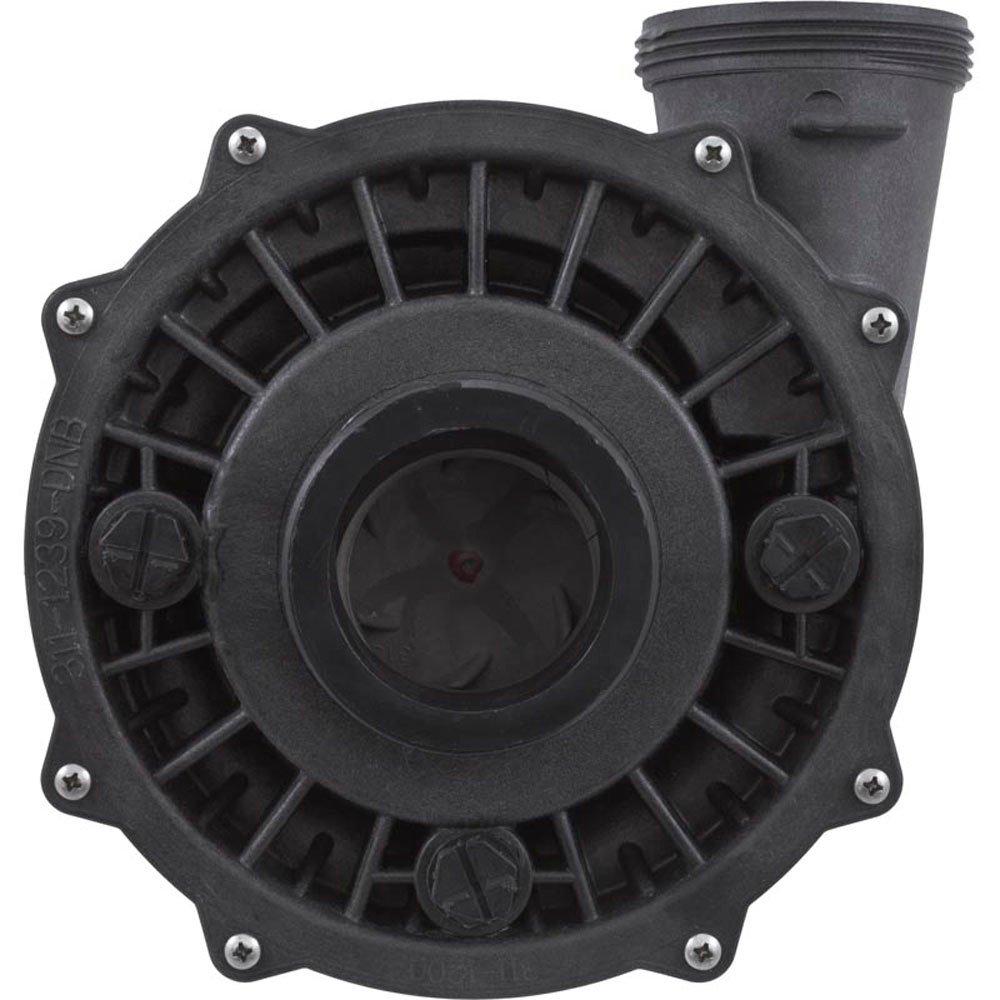

Waterway - Executive Wet End, 2 in, 1 HP, 56 FR, 310-1710

Waterway 2"" Executive Wet End for 56-Frame, 1-HP, Executive spa pumps, 310-1710. 2"" in/out plumbing, using 2"" unions, not included. Waterway Executive 2 HP wet end includes the pre-assembled Volute, 1-hp impeller and shaft seal for quick and easy pump rebuilds.

Waterway Executive wet ends are also available in 2hp, 1.5hp, 4hp and 5hp Wet Ends for Waterway Executive pumps. Waterway 310-1710 Wet End assembly includes Volute, Impeller and shaft seal. Unions sold separately.

Replacing a Spa Pump Wet End: Shut all power off. Then remove the bolts that connect the motor to the wet end. Now remove the small cover plate at the back of the motor, and place a large flat head screwdriver or wrench on the end of the motor shaft. Reach into the front of the wet end with your other hand to hold the impeller stationary, while you turn the screwdriver counter-clockwise, to un-thread the shaft from the impeller. Now, just pull the wet end off the front of the motor and replace with new, in reverse order.
