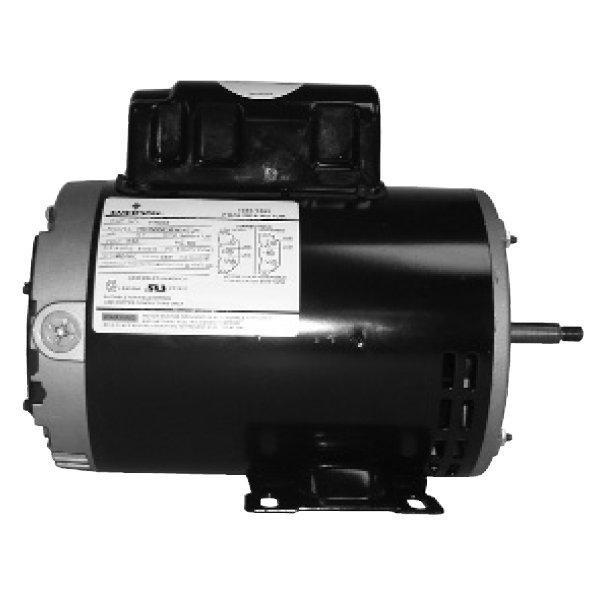

U.S. Motors - Emerson TT505 Thru-Bolt Dual Speed 3/0.38HP Full-Rated 56Y Pump Motor

Item No. 623455 | Manufacturer SKU: TT505
Item No. 623455 | Manufacturer SKU: TT505
U.S Motors Emerson TT505 Thru-Bolt Dual Speed 3/0.38HP Full-Rated 56Y Pump Motor
U.S Motors Emerson TT505 Thru-Bolt Dual Speed 3/0.38HP Full-Rated 56Y Pump Motor
Emerson TT505 Thru-Bolt Dual Speed 3/0.38HP Full-Rated 56Y Pump Motor
$83.25 Price reduced from $332.99
All Sales Final, No Returns.

U.S. Motors Emerson TT505 Thru-Bolt Dual Speed 3/0.38HP Full Rated 56Y Pump Motor is a powerfully designed motor for your pool or spa. More Details

subscription order icon Membership Available

U.S. Motors Emerson TT505 Thru-Bolt Dual Speed 3/0.38HP Full Rated 56Y Pump Motor is a powerfully designed motor for your pool or spa.
  • Class F Insulated
  • Class B Temperature Rise
  • 1081 and 1563 Design
  • 3 Oft.Clock Conduit
  • Shaft Thread 3/8-16 UNC-2A
  • Switchless Design
  • Service Factor: 1
  • RPM: 3450/1725
  • 12.0/4.4A 230V
  • Length without Shaft: 10.83

The U.S. Motors Emerson TT505 Motor is a quality replacement motor for your pool or spa. The Emerson 56 Y-Frame Thru-Bolt motor has a solid mounting frame for a rigid base and its thru-bolt design keeps the motor securely in place. Its structure is built with an open drip-proof enclosure and sealed ball bearings for long-lasting use. Its high ambient temperature of 60 degrees Celsius combined with its thermally protected design makes it extremely resilient in pool and spa environments. The Emerson 56 Y-Frame Thru-Bolt is a dual-speed pool and spa motor and can run on 3 HP or 0.38 HP. Its soft start and full-rated energy efficiency delivers reliable power.

Please Note: When replacing the motor on the pump, replacing the mechanical pump seal is required to ensure proper installation. Pump seal size varies depending on the pump and not the motor.

Single Phase
Featuring basic Single Phase wiring, the Emerson 56 Y-Frame Hayward TriStar motor delivers efficient operation. Little maintenance is required and the Emerson 56 Y-Frame Hayward TriStar motor is built to last
Y-Frame
Advanced in its design, the Emerson 56 Y-Frame Thru-Bolt motor comes with a Y-Frame, indicating a special non-standard mounting configuration
Energy Efficiency
The Emerson 56 Y-Frame Thru-Bolt motor operates at a higher efficiency level than standard motors. It has longer insulation and bearing lives, with lower heat output and vibration. With aggressive performance and lower failure rates, energy expenditures are greatly diminished, saving heavily on operating costs

Energy Efficiency: High Energy Efficiency
Speed Settings: Dual Speed
Flange Type: Thru Bolt Mount
Pool Type: Spa/Hot Tub
Horsepower: 3.0/0.38 HP
Voltage: 230V
Horsepower: 3 HP
Service Factor: 1.00 - 1.25
Rating Type: Up-Rated
Motor Frame: 56 Frame
Product Type: Pool Motor
Manufacturer: U.S. Motors Emerson
Product Type: Pool Part

See Owner's Manual for details
