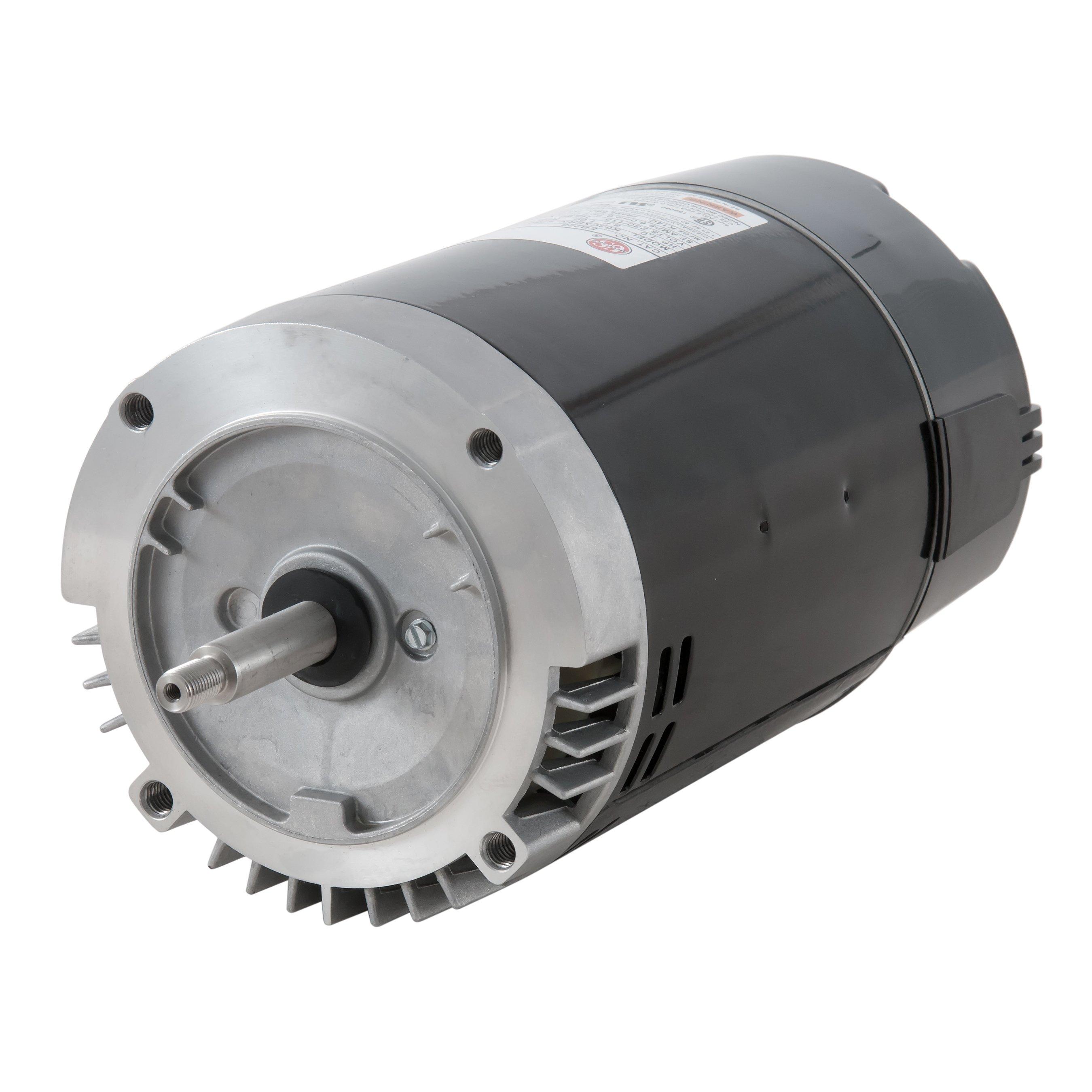

U.S. Motors - Emerson ASB127 C-Flange Single Speed 3/4HP Full-Rated 56J Pool and Spa Motor

Item No. 38559 | Manufacturer SKU: EB228
Item No. 38559 | Manufacturer SKU: EB228
U.S Motors  Emerson ASB127 C-Flange Single Speed 3/4HP Full-Rated 56J Pool and Spa Motor
U.S Motors  Emerson ASB127 C-Flange Single Speed 3/4HP Full-Rated 56J Pool and Spa Motor
$228.99

The U.S. Motors Emerson ASB127 C-Flange Single Speed 3/4HP Full Rated 56J Pool and Spa Motor is drip-proof to prevent water damage, built with ventilation openings. More Details

subscription order icon Membership Available

The U.S. Motors Emerson ASB127 C-Flange Single Speed 3/4HP Full Rated 56J Pool and Spa Motor is drip-proof to prevent water damage, built with ventilation openings.
  • Two Compartment
  • Shaft Threads - 7/16-20 UNF-2A
  • 50 Degree C Ambient
  • 1081 Design
  • Continuous Duty
  • Class B Insulated
  • Open Dripproof
  • Thermally Protected
  • Service Factor: 1
  • RPM: 3450
  • Length without Shaft: 10.77
  • 6.0/12.0A 115V/230V

For precision and advanced technology, the Emerson 56 C-Flange Motor for pools and spas is engineered with a two-compartment design, sporting triple bearing protection and sealed ball bearings. With a switchless design, the Emerson 56 C-Flange Motor is drip proof to prevent water damage, built with ventilation openings. It requires little maintenance and has been designed for dependability and a long lifespan. The Emerson 56 C-Flange Motor consistently operates at one speed, working at 3/4HP and 115/230V.

Single Phase
Featuring basic Single Phase wiring, the Emerson 56 C-Flange Motor delivers efficient operation. Little maintenance is required and the Emerson 56 C-Flange Motor is built to last
C-Frame
The Emerson 56 C-Flange Motor boasts a C-Frame body with a threaded shaft for durable mounting and stability
Standard Efficiency
Emerson 56 C-Flange Motor is designed with standard efficiency, promising durability and quality performance while operating at an efficient level just below a premium model

Speed Settings: Single Speed
Flange Type: J Flange
Pool Type: In Ground
Horsepower: 1 HP
Service Factor: 1.00 - 1.25
Voltage: 115V / 230V
Voltage: 120V / 240V
Rating Type: Up-Rated
Product Type: Pool Motor
Motor Frame: 56 Frame
Energy Efficiency: Standard
Manufacturer: U.S. Motors Emerson

See Owner's Manual for details
