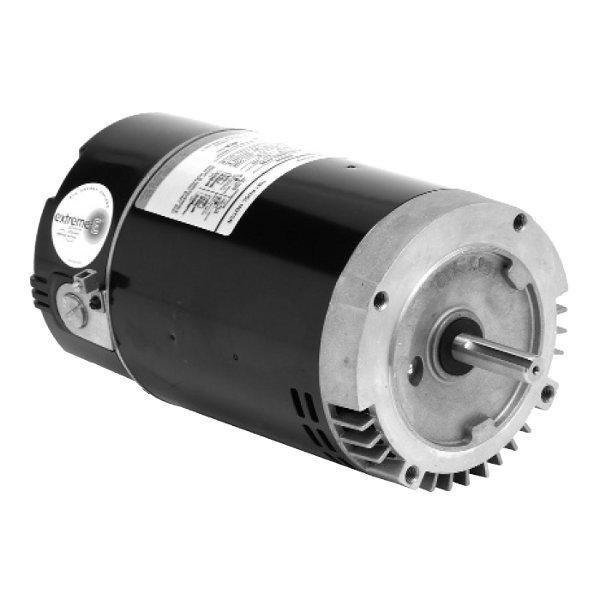

U.S. Motors - Emerson 56Y Square Flange 2 / 1/3HP Full Rated Premium Pool and Spa Motor

Item No. 38564 | Manufacturer SKU: ASB2984T
Item No. 38564 | Manufacturer SKU: ASB2984T
U.S Motors  Emerson 56Y Square Flange 2  1/3HP Full Rated Premium Pool and Spa Motor
U.S Motors  Emerson 56Y Square Flange 2  1/3HP Full Rated Premium Pool and Spa Motor
$659.99

The Emerson 56 Y-Frame Motor is a distinguished replacement motor for spas and pools More Details

subscription order icon Membership Available

The Emerson 56 Y-Frame Motor is a distinguished replacement motor for spas and pools
  • Two Compartment
  • Shaft Threads 7/16-20 UNF-2A
  • 50 Degree C Ambient
  • 1081 Design
  • Continuous Duty
  • Class B Insulated
  • 303 Stainless Steel Shaft
  • Thermally Protected
  • Fully Integrated Motor Timer
  • Program for Low and High Speeds
  • 10.6/2.4A 230V
  • High/Low Speed Override

The Emerson 56 Y-Frame Motor is a distinguished replacement motor for spas and pools. It comes with thermal protection as a preventative measure against overheating, as well as a freeze sensor to guard against freeze damage. Engineered with premium efficiency, the Emerson 56 Y-Frame motor is program for both low and high speeds and comes with two settings: Monday to Friday and Weekend. It also includes a 6.5 diameter frame, as well as a fully integrated motor timer for total control. It runs at both 2HP and 1/3HP with 230V.

Single Phase
Featuring basic Single Phase wiring, the Emerson 56 Y-Frame Motor delivers efficient operation. Little maintenance is required and it is built to last
Y-Frame
Advanced in its design, The Emerson 56 Y-Frame Motor comes with a Y-Frame, indicating a special non-standard mounting configuration
Energy Efficiency
The Emerson 56 Y-Frame Motor operates at a higher efficiency level than standard motors. It has longer insulation and bearing lives, with lower heat output and vibration. With aggressive performance and lower failure rates, energy expenditures are greatly diminished, saving heavily on operating costs

Speed Settings: Single Speed
Flange Type: Square Flange
Service Factor: 1.25 - 1.50
Energy Efficiency: High Energy Efficiency
Voltage: 230V
Horsepower: 2/0.25 HP
Rating Type: Full-Rated
Motor Frame: 56 Frame
Product Type: Pool Motor
Manufacturer: U.S. Motors Emerson

See Owner's Manual for details
