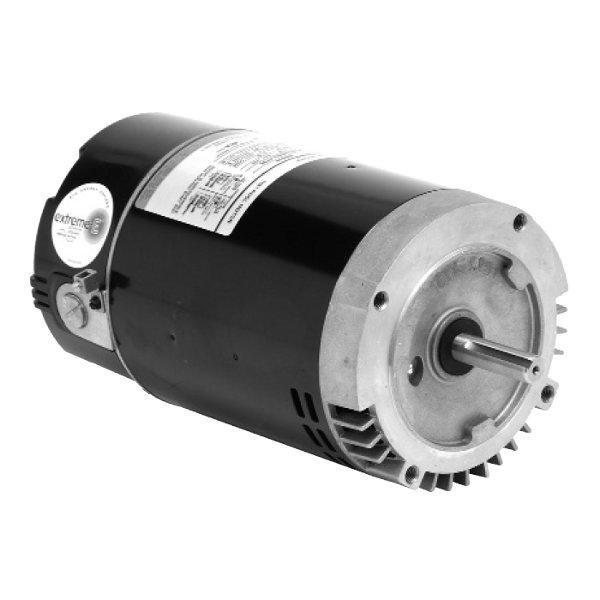

U.S. Motors - Emerson 56Y Square Flange 1-1/2HP Full Rated Pool and Spa Motor
$609.99
The Emerson 56 Y-Frame Motor is a distinguished replacement motor for spas and pools.
More Details
Membership Available
The Emerson 56 Y-Frame Motor is a distinguished replacement motor for spas and pools.
- Two Compartment
- Shaft Threads 7/16-20 UNF-2A
- 50 Degree C Ambient
- 1081 Design
- Continuous Duty
- Class B Insulated
- 303 Stainless Steel Shaft
- Thermally Protected
- Fully Integrated Motor Timer
- Program for Low and High Speeds
- High/Low Speed Override
- 9.2/2.1A 230V
The Emerson 56 Y-Frame Motor is a distinguished replacement motor for spas and pools. It comes with thermal protection as a preventative measure against overheating, as well as a freeze sensor to guard against freeze damage. Engineered with premium efficiency, the Emerson 56 Y-Frame motor is program for both low and high speeds and comes with a Monday to Friday setting and a weekend setting. It also includes a 6.5 diameter frame, as well as a fully integrated motor timer for total control. It runs at 1-1/2"HP with 230V.
Featuring basic Single Phase wiring, the Emerson 56 Y-Frame Motor delivers efficient operation. Little maintenance is required and it is built to last
Advanced in its design, The Emerson 56 Y-Frame Motor comes with a Y-Frame, indicating a special non-standard mounting configuration
The Emerson 56 Y-Frame Motor operates at a higher efficiency level than standard motors. It has longer insulation and bearing lives, with lower heat output and vibration. With aggressive performance and lower failure rates, energy expenditures are greatly diminished, saving heavily on operating costs
| Horsepower: | 1-1/2 HP |
| Flange Type: | Square Flange |
| Speed Settings: | Single Speed |
| Service Factor: | 1.25 - 1.50 |
| Energy Efficiency: | High Energy Efficiency |
| Voltage: | 230V |
| Rating Type: | Full-Rated |
| Motor Frame: | 56 Frame |
| Product Type: | Pool Motor |
| Manufacturer: | U.S. Motors Emerson |
See Owner's Manual for details
