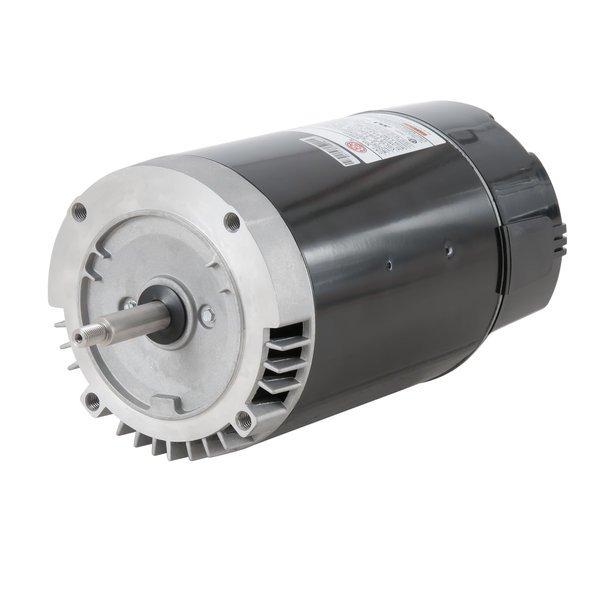

U.S. Motors - Emerson 56J C-Flange Single Speed 3/4HP Full Rated Pool and Spa Motor
$339.99
With premium energy efficiency, the Emerson 56 C-Flange is highly affordable, costing you less for the best performance in replacement motors.
More Details
Membership Available
With premium energy efficiency, the Emerson 56 C-Flange is highly affordable, costing you less for the best performance in replacement motors.
- Shaft Threads - 7/16-20 UNF-2A
- 50 Degree C Ambient
- Triple Bearing Protection
- 1081 Design
- Continuous Duty
- Class B Insulated
- Sealed Ball Bearings
- Thermally Protected
- Service Factor: 1.5
- RPM: 3450
- 5.4-5.0/10.0A 208-230/115V
- Length without Shaft: 11.02
The Emerson 56 C-Flange Motor for pools and spas offers an innovative motor model with a J-frame mount, designed to effectively complement your spa or pool pump. With premium energy efficiency, the Emerson 56 C-Flange is highly affordable, costing you less for the best performance in replacement motors. With its two compartment design and stainless steel exterior, the Emerson 56 C-Flange is built to last. Class B insulated, it operates efficiency with a switchless design and offers open drip proof ventilation openings to ensure a highly dependable product. For premium efficiency and long lasting dependability, the Emerson 56 C-Flange runs at 3/4HP and 208-230/115V and is an excellent alterative in replacement motors.
Featuring basic Single Phase wiring, the Emerson 56 C-Flange Motor delivers efficient operation. Little maintenance is required and the Emerson 56 C-Flange Motor is built to last
The Emerson 56 C-Flange Motor features a J-Frame that's ideal for jet pump service and is completely versatile with its threaded shaft and 56 C-Flange face
The Emerson 56 C-Flange Motor operates at a higher efficiency level than standard motors. It has longer insulation and bearing lives, with lower heat output and vibration. With aggressive performance and lower failure rates, energy expenditures are greatly diminished, saving heavily on operating costs
| Horsepower: | 3/4 HP |
| Speed Settings: | Single Speed |
| Voltage: | 120V / 240V |
| Pool Type: | In Ground |
| Flange Type: | J Flange |
| Energy Efficiency: | High Energy Efficiency |
| Voltage: | 115V / 208 - 230V |
| Service Factor: | 1.50 - 1.75 |
| Rating Type: | Full-Rated |
| Product Type: | Pool Motor |
| Motor Frame: | 56 Frame |
| Manufacturer: | U.S. Motors Emerson |
| Pump Speed: | Single |
| Service Factor: | 1.5 |
| Total Horsepower: | 1.13 THP |
See Owner's Manual for details
