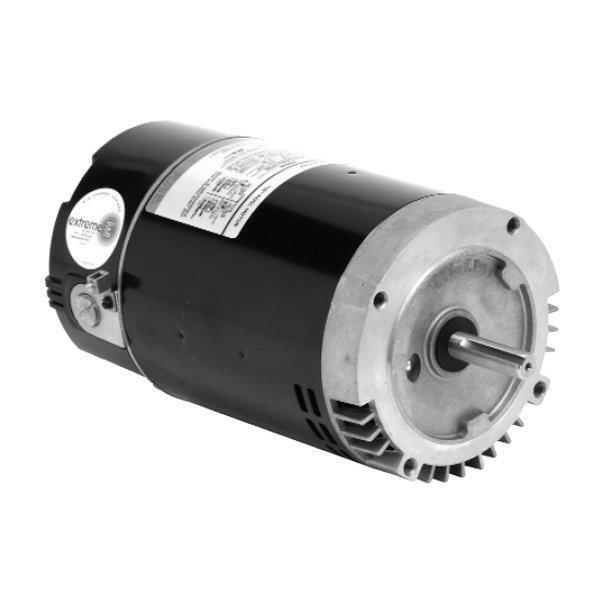

U.S. Motors - Emerson 56C C-Flange Single Speed 3/4HP Full Rated Pool and Spa Motor

Item No. 38506 | Manufacturer SKU: EB121
Item No. 38506 | Manufacturer SKU: EB121
U.S Motors  Emerson 56C C-Flange Single Speed 3/4HP Full Rated Pool and Spa Motor
U.S Motors  Emerson 56C C-Flange Single Speed 3/4HP Full Rated Pool and Spa Motor
$111.49 Price reduced from $222.99 to

The Emerson 56 C-Flange Motor is dripproof to prevent water damage, built with ventilation openings. More Details

subscription order icon Membership Available

The Emerson 56 C-Flange Motor is dripproof to prevent water damage, built with ventilation openings.
  • 50 Degree C Ambient
  • 1081 Design
  • Continuous Duty
  • Class B Insulated
  • 303 Stainless Steel Shaft
  • Thermally Protected
  • Service Factor: 1.5
  • RPM: 3450
  • Shaft: Keyed
  • 6.0/12.0A 115V/230V
  • Length without Shaft: 10.77

For precision and advanced technology, the Emerson 56 C-Flange Motor for pools and spas is engineered with a two-compartment design, sporting triple bearing protection and sealed ball bearings. With a switchless design, the Emerson 56 C-Flange Motor is drip proof to prevent water damage, built with ventilation openings. It requires little maintenance and has been designed for dependability and a long lifespan. The Emerson 56 C-Flange Motor consistently operates at one speed, working at 3/4HP and 115/230V.

Single Phase
Featuring basic Single Phase wiring, the Emerson 56 C-Flange Motor delivers efficient operation. Little maintenance is required and the Emerson 56 C-Flange Motor is built to last
Standard Efficiency
Emerson 56 C-Flange Motor is designed with standard efficiency, promising durability and quality performance while operating at an efficient level just below a premium model

Speed Settings: Single Speed
Pool Type: In Ground
Horsepower: 3/4 HP
Service Factor: 1.50 - 1.75
Voltage: 120V / 240V
Flange Type: C Flange
Rating Type: Full-Rated
Product Type: Pool Motor
Motor Frame: 56 Frame
Energy Efficiency: Standard
Manufacturer: U.S. Motors Emerson
Pump Speed: Single
Service Factor: 1.5
Total Horsepower: 1.13 THP

See Owner's Manual for details
