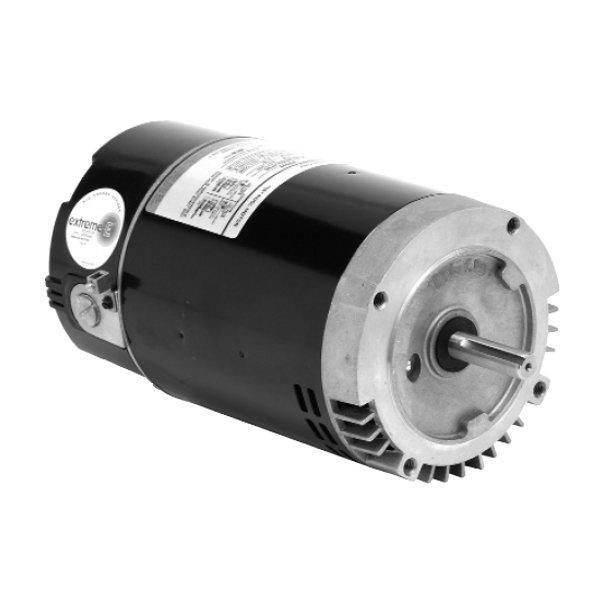

U.S. Motors - Emerson 56C C-Flange Single Speed 1-1/2HP Full Rated Pool and Spa Motor

Item No. 38526 | Manufacturer SKU: ASB795
Item No. 38526 | Manufacturer SKU: ASB795
U.S Motors Emerson 56C C-Flange Single Speed 1-1/2HP Full Rated Pool and Spa Motor
U.S Motors Emerson 56C C-Flange Single Speed 1-1/2HP Full Rated Pool and Spa Motor
U.S Motors Emerson 56C C-Flange Single Speed 1-1/2HP Full Rated Pool and Spa Motor U.S Motors Emerson 56C C-Flange Single Speed 1-1/2HP Full Rated Pool and Spa Motor
$389.99

With premium energy efficiency, the Emerson 56 C-Flange is highly affordable, costing you less for the best performance in replacement motors. More Details

subscription order icon Membership Available

With premium energy efficiency, the Emerson 56 C-Flange is highly affordable, costing you less for the best performance in replacement motors.
  • 50 Degree C Ambient
  • Triple Bearing Protection
  • 1081 Design
  • Continuous Duty
  • Class B Insulated
  • Sealed Ball Bearings
  • Thermally Protected
  • Service Factor: 1.3
  • RPM: 3450
  • 8.7-7.8/15.6A 208-230/115V
  • Length without Shaft: 12.02

The Emerson 56 C-Flange Motor for pools and spas offers an innovative motor model with a C-frame mount, designed to effectively complement your spa or pool pump. With premium energy efficiency, the Emerson 56 C-Flange is highly affordable, costing you less for the best performance in replacement motors. With its two compartment design and stainless steel exterior, the Emerson 56 C-Flange is built to last. Class B insulated, it operates efficiency with a switchless design and offers open drip proof ventilation openings to ensure a highly dependable product. For premium efficiency and long lasting dependability, the Emerson 56 C-Flange runs at 1-1/2"P and 208-230/114V and is an excellent alterative in replacement motors.

Single Phase
Featuring basic Single Phase wiring, the Emerson 56 C-Flange Motor delivers efficient operation. Little maintenance is required and the Emerson 56 C-Flange Motor is built to last
C-Frame
The Emerson 56 C-Flange Motor boasts a C-Frame body with a keyed shaft for durable mounting and stability
Energy Efficiency
The Emerson 56 C-Flange Motor operates at a higher efficiency level than standard motors. It has longer insulation and bearing lives, with lower heat output and vibration. With aggressive performance and lower failure rates, energy expenditures are greatly diminished, saving heavily on operating costs

Speed Settings: Single Speed
Flange Type: C Flange
Voltage: 120V / 240V
Horsepower: 1-1/2 HP
Service Factor: 1.25 - 1.50
Voltage: 115V / 208 - 230V
Energy Efficiency: High Energy Efficiency
Pool Type: In Ground
Rating Type: Full-Rated
Product Type: Pool Motor
Motor Frame: 56 Frame
Manufacturer: U.S. Motors Emerson

See Owner's Manual for details
