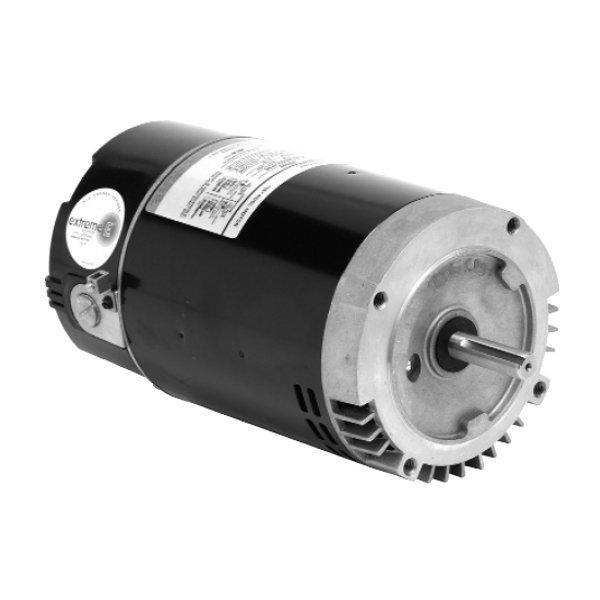

U.S. Motors - Emerson 56C C-Flange Single Speed 1-1/2HP Full Rated Pool and Spa Motor

Item No. 38508 | Manufacturer SKU: EB123
Item No. 38508 | Manufacturer SKU: EB123
U.S Motors  Emerson 56C C-Flange Single Speed 1-1/2HP Full Rated Pool and Spa Motor
$278.99

The Emerson 56 C-Flange Motor is dripproof to prevent water damage, built with ventilation openings. More Details

subscription order icon Membership Available

The Emerson 56 C-Flange Motor is dripproof to prevent water damage, built with ventilation openings.
  • 50 Degree C Ambient
  • 1081 Design
  • Continuous Duty
  • Class B Insulated
  • 303 Stainless Steel Shaft
  • Thermally Protected
  • Service Factor: 1.3
  • RPM: 3450
  • Amps: 9.0/18.0A
  • Shaft: Keyed
  • Length without Shaft: 12.02
  • Voltage: 115V/230V

For precision and advanced technology, the Emerson 56 C-Flange Motor for pools and spas is engineered with a two-compartment design, sporting triple bearing protection and sealed ball bearings. With a switchless design, the Emerson 56 C-Flange Motor is drip proof to prevent water damage, built with ventilation openings. It requires little maintenance and has been designed for dependability and a long lifespan. The Emerson 56 C-Flange Motor consistently operates at one speed, working at 1-1/2"P and 115/230V.

Single Phase
Featuring basic Single Phase wiring, the Emerson 56 C-Flange Motor delivers efficient operation. Little maintenance is required and the Emerson 56 C-Flange Motor is built to last
C-Frame
The Emerson 56 C-Flange Motor boasts a C-Frame body with a keyed shaft for durable mounting and stability
Standard Efficiency
Emerson 56 C-Flange Motor is designed with standard efficiency, promising durability and quality performance while operating at an efficient level just below a premium model

Service Factor: 1.25 - 1.50
Pool Type: In Ground
Voltage: 120V / 240V
Voltage: 115V / 230V
Flange Type: C Flange
Speed Settings: Single Speed
Horsepower: 1-1/2 HP
Rating Type: Full-Rated
Product Type: Pool Motor
Motor Frame: 56 Frame
Energy Efficiency: Standard
Manufacturer: U.S. Motors Emerson

See Owner's Manual for details
