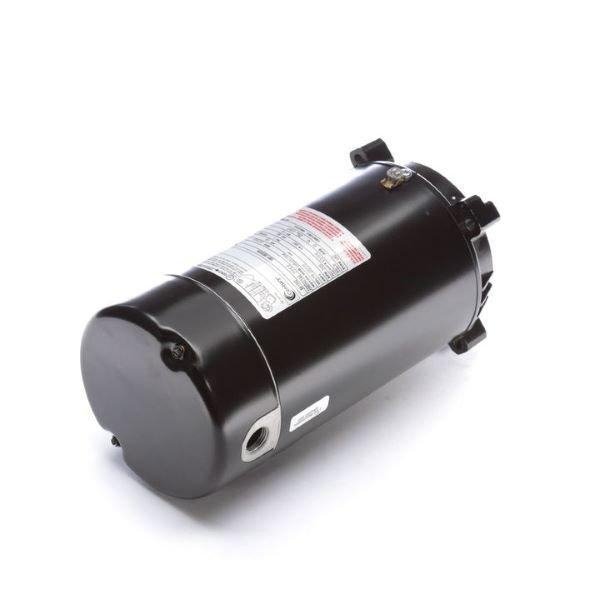

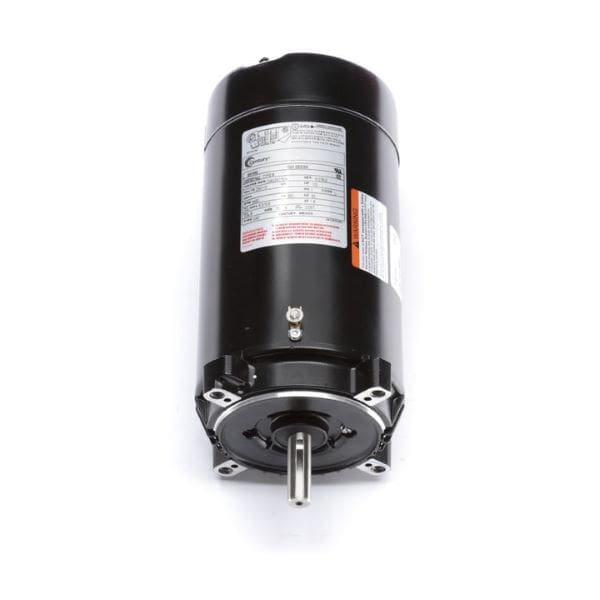

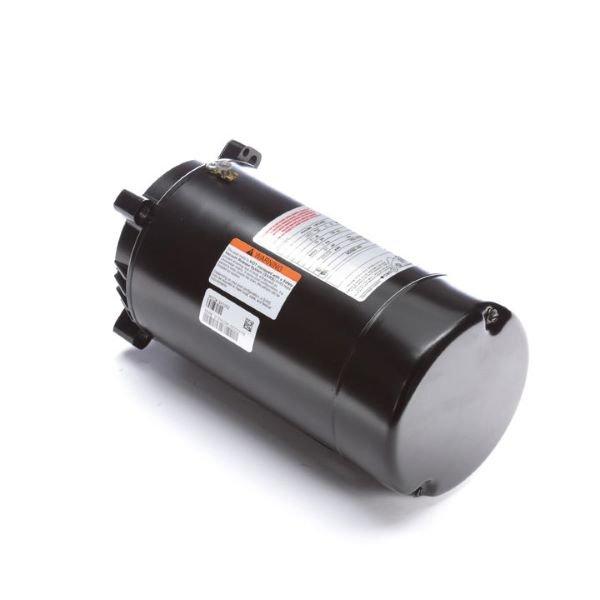

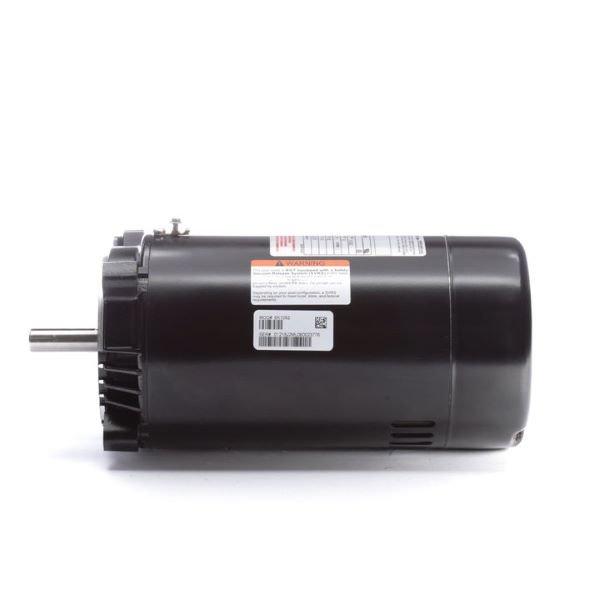

Century A.O. Smith - 56C C-Face 1/2 HP Single Speed Full Rated Pool Filter Motor, 10.6/5.3A 115/230V
$249.99
The A.O. Smith NEMA C-Face Pool Filter Motor works efficiently with its single speed design.
More Details
Membership Available
The A.O. Smith NEMA C-Face Pool Filter Motor works efficiently with its single speed design.
- Auto Protector
- NEMA 56C Face Mount
- Open Dripproof
- Capacitor Start and Capacitor Start-Capacitor Run
- Rotation: CCW Pump End
- Sealed Ball Bearings
- Sealed switch design
- 1081 Design
- 50 C Ambient
- 60 Hertz
- 303 Stainless Steel Shaft
The A.O. Smith NEMA C-Face Pool Filter Motor works efficiently with its single speed design. With horsepower ratings from 1/2"P to 3HP, the NEMA C-Face Pool Filter Motor is Full-Rated and provides long lasting and trustworthy performance. Its standard efficiency design is the perfect addition to your filter pump system for enhanced performance. Equipped with the ability to withstand ambient temperatures up to 50C and constructed with an open drip proof enclosure, the NEMA C-Face Pool Filter Motor is sure to last.
Single Phase wiring is basic with an alternating current that delivers efficient operation. Little maintenance is required and provides reliable performance
The different frame types include: C, J, Y, Z, JM, JP, or TCZ. These letters are combined with numbers to define standard specifications including the way the motor mounts onto the pump, its shaft height, and diameter
This motor is designed with standard efficiency, running at a single speed for consistent and reliable operation
Horsepower: | 1/2 HP |
Shaft Type: | Keyed |
Installation Type: | Residential |
Flange Type: | C Flange |
Speed Settings: | Single Speed |
Service Factor: | 1.50 - 1.75 |
Phase Type: | Single Phase |
Voltage: | 115V / 230V |
Rating Type: | Full-Rated |
Product Type: | Pool Motor |
Energy Efficiency: | Standard |
Motor Frame: | 56 Frame |
Manufacturer: | Century A.O. Smith |
Warranty: | 1-Year |
Pump Speed: | Single |
Service Factor: | 1.6 |
Total Horsepower: | 0.80 THP |
One Year Warranty from Installation or Two Year Warranty from Manufacture Date, see Owner's Manual for a full description of warranty claims and coverage details.
