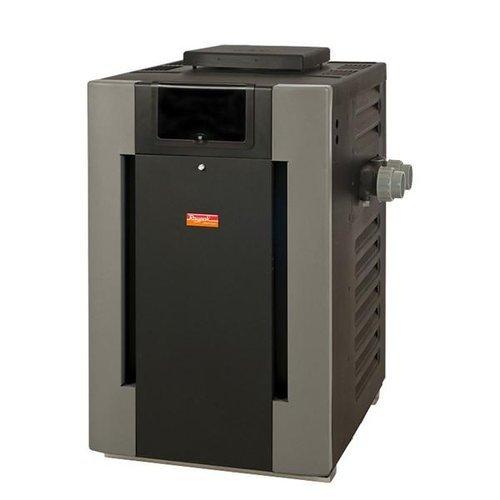

Raypak - 009846 Digital Polymer Copper Natural Gas 399K BTU Pool Heater
$3,963.00
Raypak 009846 Digital Copper 399,000 BTU Natural Gas Residential Pool and Spa Heater with Polymer Headers, 6,000-9,000' Elevation, P-R406A-EN-C #52
More Details
Membership Available
Raypak 009846 Digital Copper 399,000 BTU Natural Gas Residential Pool and Spa Heater with Polymer Headers, 6,000-9,000' Elevation, P-R406A-EN-C #52
- LCD digital display provides accurate temperature
- Monitors operational status as well as service diagnostics
- High-wind resistance
- Corrosion-resistant headers
- Unitherm governor prevents condensation
- PVC plumbing directly to the heater
- Small footprint
- Can be installed on combustible surface
- Model Number: P-R406A-EN-C #52
- 6,000' - 9,000' Elevation
The Raypak Digital Polymer Copper Natural Gas Heater is engineered to last. Looking at the heater, you can see that it's designed different than most heaters on the market. The Raypak 009849 has a unique "pagoda design" to enable the heater to stay effective during high wind speeds and downdrafts. The cabinet of the heater is constructed from a stainless steel, then powder coated with a 7 stage process to outlast the elements and corrosion. Inside the unit, the heater boasts polymer headers and a copper fin tube to provide excellenct transfer of heat.
The Raypak Digital Polymer Copper Natural Gas Heater not only lasts long, but is extremely easy to use and operate. The heater has a built-in Microprocessor Controlled Thermostat to set you pool or spa at the perfect temperature with the push of a button. It's also remote compatible and can connect to any two or three wire remote for added convenience. The heater also contains built-in diagnostic controls to alert users or pool professionals of any issues and the location of these issues. In addition, the heater contains built-in electronic ignition. This enables the unit to turn the pilot light off and on when needed, conserving gas usage and saving users money.
The Raypak Digital Polymer Copper Natural Gas Heater not only lasts long, but is extremely easy to use and operate. The heater has a built-in Microprocessor Controlled Thermostat to set you pool or spa at the perfect temperature with the push of a button. It's also remote compatible and can connect to any two or three wire remote for added convenience. The heater also contains built-in diagnostic controls to alert users or pool professionals of any issues and the location of these issues. In addition, the heater contains built-in electronic ignition. This enables the unit to turn the pilot light off and on when needed, conserving gas usage and saving users money.
The Raypak Digital gas heater comes with a microprocessor based thermostat control. This control allows you to set your swimming pool or spa temperature precisely at your favorite setting just by pressing an up or down temperature control button. The digital display gives you a constant read out of your swimming pool water temperature.
Troubleshooting a gas heater has never been easier. The Raypak Digital has on-board diagnostic controls that let the user and the service professional know what is going on with the heater at all times. In the event that you would ever have a problem with the heater, the digital display will show where the problem is in the control circuit.
The Raypak Digital is compatible with most major swimming pool control and remote systems on the market today. Any two-wire or three-wire remote can connect to the Raypak Digital and be integrated into the pool control system of your choice.
All Raypak ASME gas heaters come standard with .065" wall integral copper finned tubes. This tubing is over 50% thicker in wall thickness than standard tubing. Since thefins are integral to the tube, maximum heat transfer is attained. The fin tubing is made from one piece of extruded copper tube, not from separate fins attached to the copper tubes. Every Raypak ASME has the same robust design tube bundle that is used in Raypak's large gas commercial boilers.
| Pool Type: | In Ground |
| Product Type: | Pool Heater |
| Ignition: | Electronic |
| Fuel Type: | Natural Gas |
| Heat Exchanger: | Copper |
| Emission: | Standard |
| Installation Type: | Residential |
| Controls: | Digital |
| Heat Output: | 399,000 BTU |
| Elevation: | 6,000 - 9,000 ft |
| Manufacturer: | Raypak |
| Warranty: | 1-Year |
One (1) Year Limited Warranty on Product, see Owner's Manual for a full description of warranty claims and coverage details.
