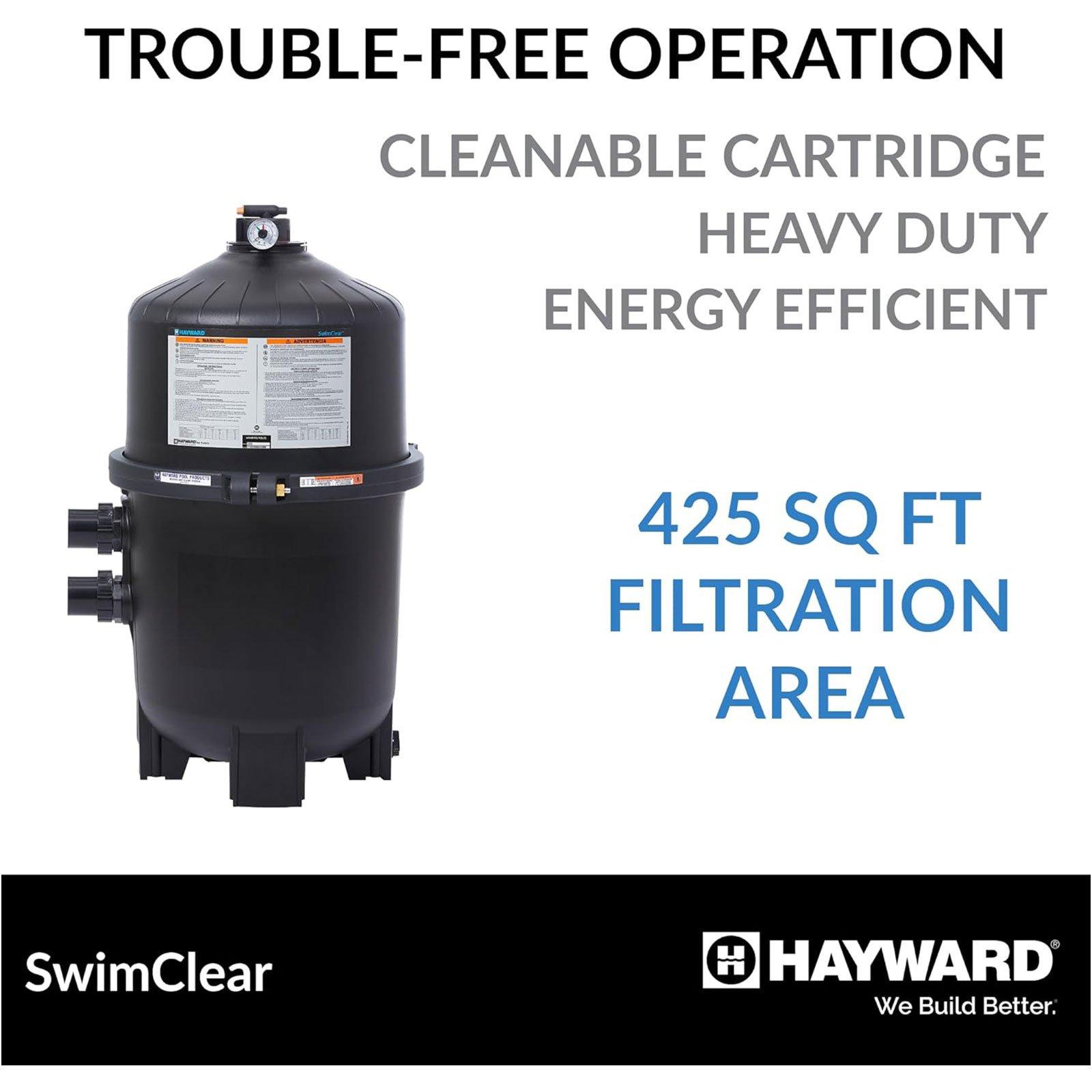

Hayward - W3C4030 SwimClear 425 sq. ft. Cartridge Pool Filter

Item No. 342049 | Manufacturer SKU: W3C4030
Item No. 342049 | Manufacturer SKU: W3C4030
Hayward  W3C4030 SwimClear 425 sq ft Cartridge Pool Filter
Hayward  W3C4030 SwimClear 425 sq ft Cartridge Pool Filter
Hayward  W3C4030 SwimClear 425 sq ft Cartridge Pool Filter
Hayward  W3C4030 SwimClear 425 sq ft Cartridge Pool Filter Hayward  W3C4030 SwimClear 425 sq ft Cartridge Pool Filter Hayward  W3C4030 SwimClear 425 sq ft Cartridge Pool Filter
$1,569.00

Hayward W3C4030 SwimClear 425 Sq Ft Pool Cartridge Filters feature high-strength filter tanks that are ultimate in durability and long life. More Details

subscription order icon Membership Available

Hayward W3C4030 SwimClear 425 Sq Ft Pool Cartridge Filters feature high-strength filter tanks that are ultimate in durability and long life.
  • Manual Air Relief
  • Top Manifold
  • Heavy-Duty, Tamper-Proof, One-Piece Clamp
  • High-Strength Filter Tank
  • Uniform Low-Profile Tank Base Design
  • Full-Size 1-1/2 inch Integral Drain
  • Pressure and Cleaning-Cycle-Indicator Gauge
  • Quad-Cluster Cartridge Elements
  • Self-Aligned Tank Top and Bottom
  • CPVC Union Coupling Connection
  • Noryl Bulkhead Fittings

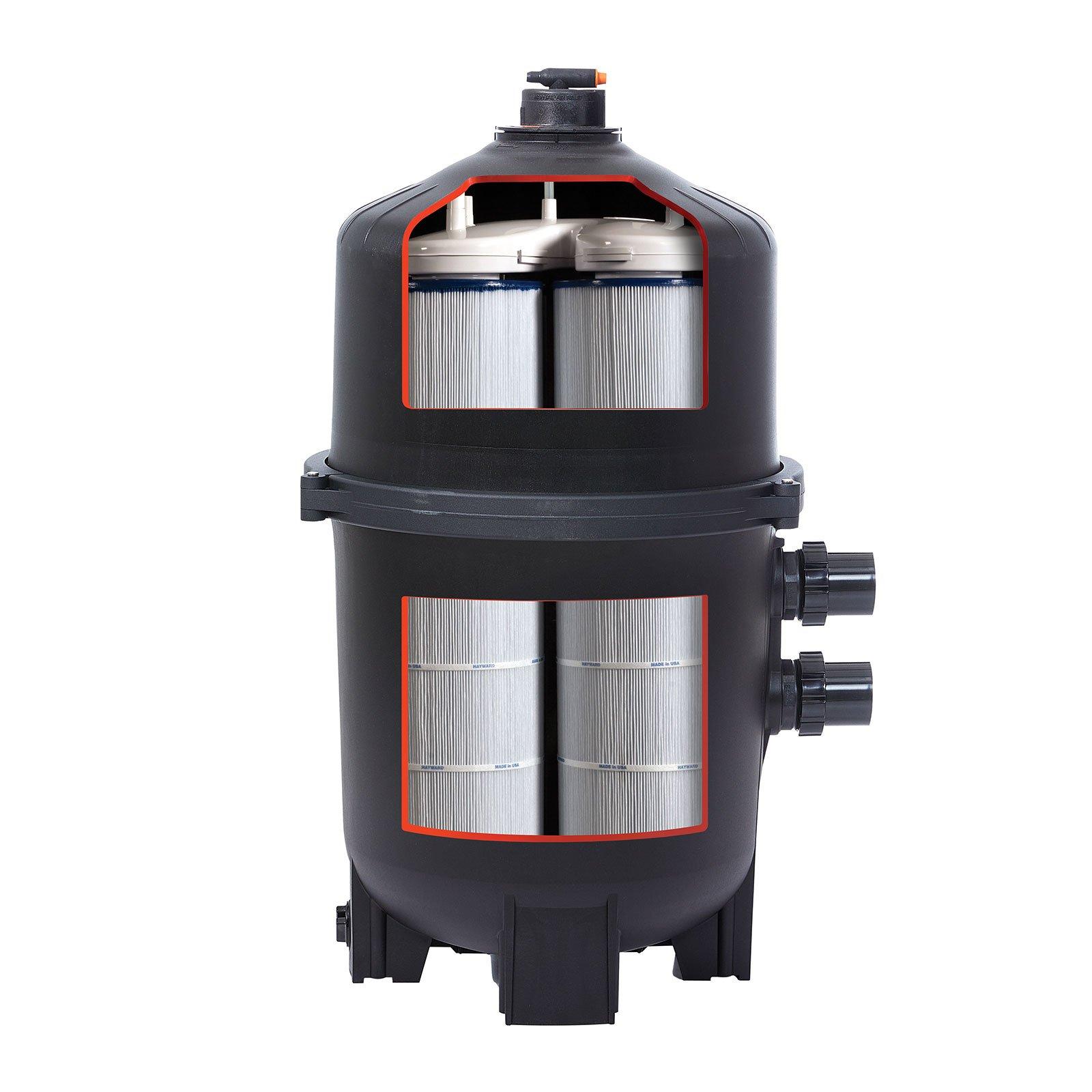

The Hayward W3C4030 SwimClear 425 Sq Ft Cartridge Pool Filter is a 4 cartridge filtration system used on in-ground pools. Capable of filtering particles as small as 30 microns, this means the filter is capable of pulling everything out that you can see with the human eye. The glass reinforced co-polymer high strength tank, one-piece clamp and 2" black bulkhead unions enhance its durability and ease of installation.

The Hayward SwimClear W3C4030 one-piece clamp design allows for easy removal and convenient access to each of the four cartridge filters. Internal air bleeding prevents air build-up from occurring, and its 1-1/2" drain ensures full draining during winterization. The Hayward W3C4030 SwimClear keeps pools sparkling and requires less maintenance for longer, better performance. Requires a 58-1/2" vertical clearance for installation.

Common Questions:

What are the dimensions of the Filter?
  • Tank Size (DxH) 24" x 54"
    Approx. Weight 82.3 lbs

What comes with the W3C4030?

  • The W3C4030 will come with four brand new cartridges, two 2" unions for install, the tank body, one-piece clamp assembly, air relief valve, and 3 year manufacturer warranty.
How do you size a cartridge filter?
  • Cartridges are sized 100 sq. ft. per 10,000 gallon of pool water is the minimum recommendation.
Does this filter need to be backwashed?
  • No, the filter cartridges are cleaned manually every 4 months with the garden hose or cartridge filter cleaning solution.
What is the max flow rate for the Hayward W3C4030?
  • The Hayward W3C4030 has a 150 GPM max flow rate.
What warranty does the W3C4030 carry?
  • Three (3) Year Limited Warranty on Product, see Owner's Manual for a full description of warranty claims and coverage details.
Looking for Hayward W3C4030 SwimClear Replacement Parts?

If you need a replacement part for your Hayward W3C4030 SwimClear Cartridge Pool Filter, click the following button to view the part list schematic and all available parts.

Click here for Hayward W3C4030 SwimClear Filter Replacement Parts

Product Type: Pool Filter
Filter Type: Cartridge
Installation Type: Residential
Filtration Area: 425 sq ft
Eco-Friendly: Yes
Manufacturer: Hayward
Warranty: 3-Year
Pool Type: In Ground

Three (3) Year Limited Warranty on Product, see Owner's Manual for a full description of warranty claims and coverage details.
