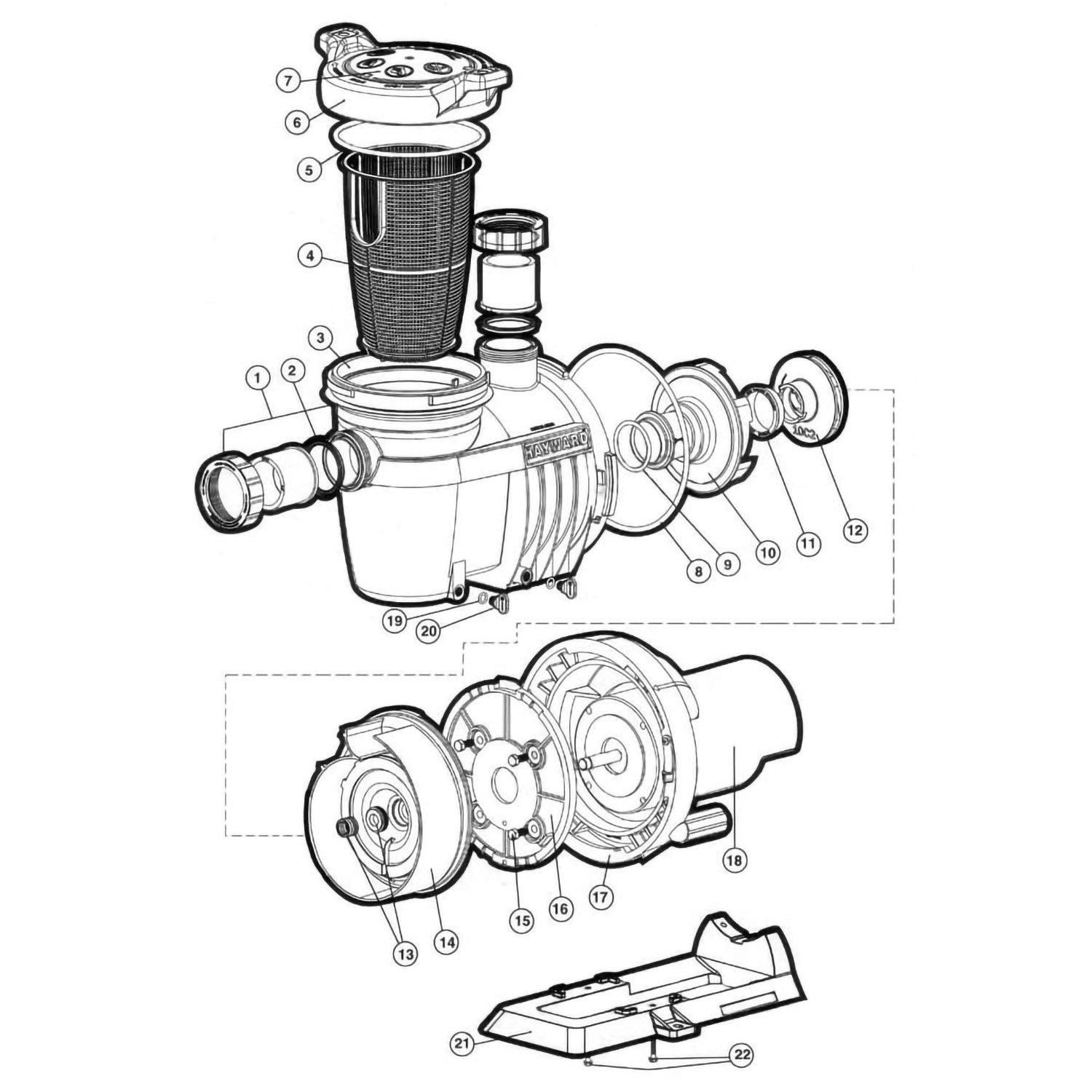

Hayward Northstar Series Northstar SP4000 Full Rated Pump Part Schematic
Part Selector:
(Click to view larger)
Parts:
#1
Hayward - Union Kit, 1 Curved Connector 1 O-Ring and Nut
SKU:
623861
Details:
UNION KIT, 1 CURVED CONNECTOR 1 ORING & NUT
Availability:
This item is currently not available
$35.99
Out of Stock
#1
Hayward - SPX3200UNKIT Union Connection Kit for Universal H-Series Pool Heater
SKU:
52280
Details:
Hayward SPX3200UNKIT Union Connector Kit for the Hayward Universal H-Series Heater includes Union Nuts, Gaskets, and Connectors.
Availability:
In Stock
$79.99
#2
Hayward - Diffuser O-Ring for EcoStar/EcoStar SVRS
SKU:
223392
Details:
Replacement Diffuser O-Ring for the Hayward EcoStar/EcoStar SVRS Variable Speed Pool Pump.
Availability:
In Stock
$22.99
#2
Hayward - Union Gasket T-Seal for SwimClear C2030, C3030, C4030, C5030, C7030/EcoStar/EcoStar SVRS
SKU:
623808
Details:
Replacement Union Gasket for the Hayward EcoStar/EcoStar SVRS Variable Speed Pool Pump and Hayward SwimClear Pool Filters.
Availability:
In Stock
$23.99
#3
Hayward - Pump Housing, Northstar Threaded Port
SKU:
40645
Details:
PUMP HOUSING, NORTHSTAR THREADED PORT
Availability:
This item is currently not available
$459.99
Out of Stock
#4
Hayward - NorthStar Pump Basket
SKU:
36095
Details:
Hayward NorthStar Pump Basket - SPX4000M
Availability:
In Stock
$34.99
#5
Hayward - Cover Kit, Northstar 2007 and Prior Biguanide Saniti
SKU:
40541
Details:
COVER KIT, NORTHSTAR 2007 & PRIOR BIGUANIDE SANITI
Availability:
In Stock
$149.99
#5
All Seals - Replacement T-Seal Pump Lid Cover O-Ring for Hayward Northstar
SKU:
615064
Details:
All Seals Replacement T-Seal Pump Lid Cover O-Ring for Hayward Northstar Pool Pump, pre-2008.
Availability:
In Stock
$44.99
#5
Hayward - Strainer Cover O-Ring (2008 to Current)
SKU:
674380
Details:
STRAINER COVER O-RING (2008 TO CURRENT)
Availability:
In Stock
$57.99
#5
Hydroseal - Body - Cfr50 - 2in. - Black
SKU:
313844
Details:
Hayward NorthStar Pump Strainer Cover O-Ring - CX400G
Availability:
In Stock
$56.99
#5
Hayward - Strainer Cover Kit, Biguanide Sanit.(2008-Current)
SKU:
40542
Details:
STRAINER COVER KIT,BIGUANIDE SANIT.(2008-CURRENT)
Availability:
In Stock
$116.99
#10

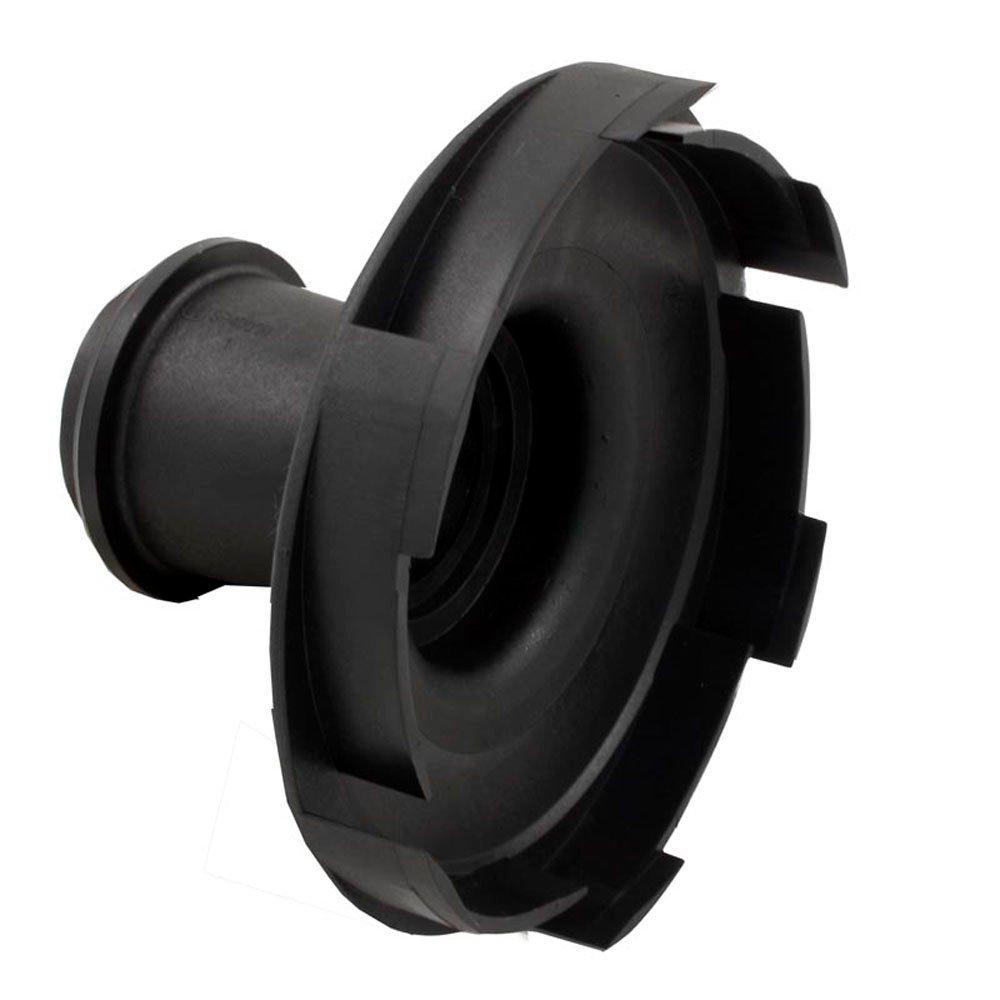

Hayward - SPX4000B Diffuser for NorthStar Pump
SKU:
40278
Details:
Hayward SPX4000B Diffuser for NorthStar Pump
Availability:
This item is currently not available
$49.99
Out of Stock
#11
Hayward - Impeller Ring for EcoStar/EcoStar SVRS
SKU:
40514
Details:
Replacement Impeller Ring for the Hayward EcoStar/EcoStar SVRS Variable Speed Pool Pump.
Availability:
In Stock
$16.99
#12
Hayward - Impeller Kit, 3/4 Full Rate - 1 HP Uprate
SKU:
600643
Details:
IMPELLER KIT, 3/4 FULLRATE - 1 HP UPRATE
Availability:
In Stock
$59.99
#12
Hayward - Impeller Kit, 3 HP Full Rate Model SP4030NS
SKU:
600638
Details:
IMPELLER KIT, 3 HP FULLRATE MODEL SP4030NS
Availability:
This item is currently not available
$62.99
Out of Stock
#12
Hayward - Impeller Kit, 1-1/2 Full Rate - 2 HP Uprate
SKU:
600641
Details:
IMPELLER KIT, 1 1/2 FULLRATE - 2 HP UPRATE
Availability:
This item is currently not available
$69.99
Out of Stock
#12
Hayward - Impeller Kit, 1 Full Rate - 1-1/2 HP Uprate
SKU:
600642
Details:
IMPELLER KIT, 1 FULLRATE - 1 1/2 HP UPRATE
Availability:
This item is currently not available
$65.99
Out of Stock
#12
Hayward - Impeller Kit, 2 Full Rate - 2 1/2 HP Uprate
SKU:
600640
Details:
IMPELLER KIT, 2 FULLRATE - 2 1/2 HP UPRATE
Availability:
This item is currently not available
$68.99
Out of Stock
#13
$35.99
#15
Hayward - Motor Cap Screw for Super Pump
SKU:
40062
Details:
Replacement Motor Cap Screw for the Hayward Super Pump High Performance Pool Pumps.
Availability:
In Stock
$18.99
#18

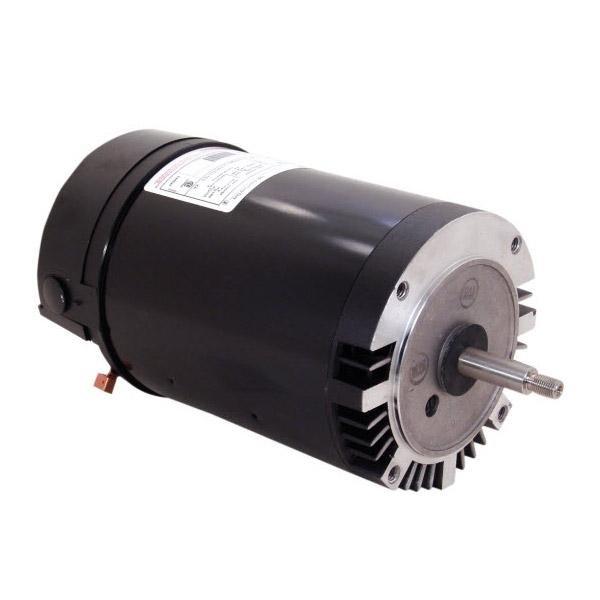

Century A.O. Smith - 56J C-Face 2 HP Full Rated Hayward Northstar Replacement Pump Motor, 13.0-11.8A 208-230V
SKU:
620121
Details:
The Century Hayward Northstar Motor is a professionally engineered replacement pump motor for pools and spas
Availability:
In Stock
$649.99
#18
Century A.O. Smith - 56J C-Face 3/4 HP Full Rated Northstar Replacement Pump Motor
SKU:
620068
Details:
The Century Hayward Northstar Motor is a professionally engineered replacement pump motor for pools and spas.
Availability:
In Stock
$489.99
#18
Hayward - Motor, 1/2 HP Northstar
SKU:
403002
Details:
MOTOR, 1/2 HP NORTHSTAR
Availability:
This item is currently not available
$349.99
Out of Stock
#18
Century A.O. Smith - 56J C-Face 1HP Full Rated Northstar Replacement Pump Motor
SKU:
305108
Details:
The Century Hayward Northstar Motor is a professionally engineered replacement pump motor for pools and spas.
Availability:
In Stock
$499.99
#18
Century A.O. Smith - 56J C-Face 1-1/2HP Full Rated Northstar Replacement Motor
SKU:
38512
Details:
The Century Hayward Northstar Motor is a professionally engineered replacement pump motor for pools and spas.
Availability:
This item is currently not available
$389.99
Out of Stock
#18
$1,099.99
#18
Hayward - Motor, 3/4 HP Full Rated Northstar
SKU:
313717
Details:
MOTOR, 3/4 HP FULLRATED NORTHSTAR
Availability:
In Stock
$479.99
#18
Hayward - Motor, 1 HP Full Rated
SKU:
313718
Details:
MOTOR, 1 HP FULL RATED
Availability:
This item is currently not available
$399.99
Out of Stock
#18

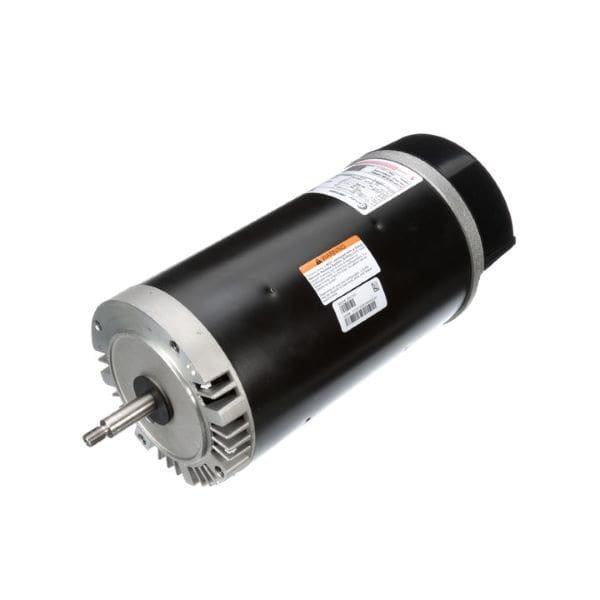

Century A.O. Smith - 56J C-Face 3 HP Full Rated Hayward Northstar Replacement Pump Motor, 20.6-19.0A 208-230V
SKU:
200733
Details:
The Century Hayward Northstar Motor is a professionally engineered replacement pump motor for pools and spas
Availability:
In Stock
$849.99
#19
Hayward - Drain Plug, Hayward Northstar/Booster/Tristar, with O-Ring
SKU:
40643
Details:
Replacement Drain Plug with O-Ring for the Hayward Northstar/Booster/Tristar Variable Speed Pool Pump.
Availability:
In Stock
$8.99
