Raypak Heat Pump RHP 5100, 6100 & 5100ti Part Schematic

Part Selector:

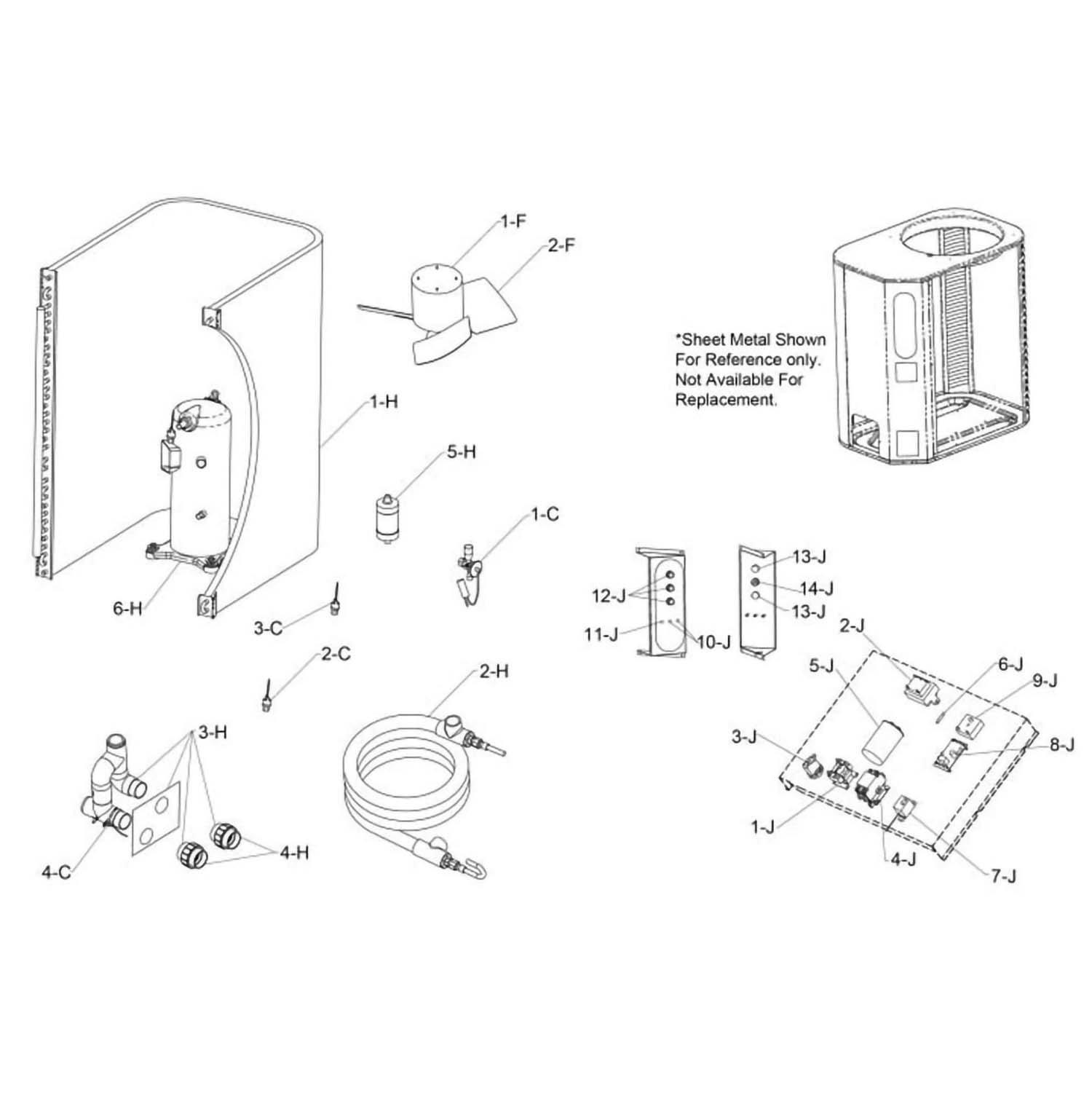

Raypak Heat Pump RHP 5100, 6100 & 5100ti Part Schematic
(Click to view larger)

Parts:

#1
Raypak - Pool Heater Fan Relay
Raypak - Pool Heater Fan Relay
SKU: 324438
Details: Raypak Pool Heater Fan Relay - H000017
Availability: This item is currently not available
$37.99
Out of Stock
#1
Raypak - Fan Motor
Raypak - Fan Motor
SKU: 368406
Availability: This item is currently not available
$249.99
Out of Stock
#1
Raypak - TX Valve, Heat, 5200
Raypak - TX Valve, Heat, 5200
SKU: 367689
Availability: This item is currently not available
$199.99
Out of Stock
#2

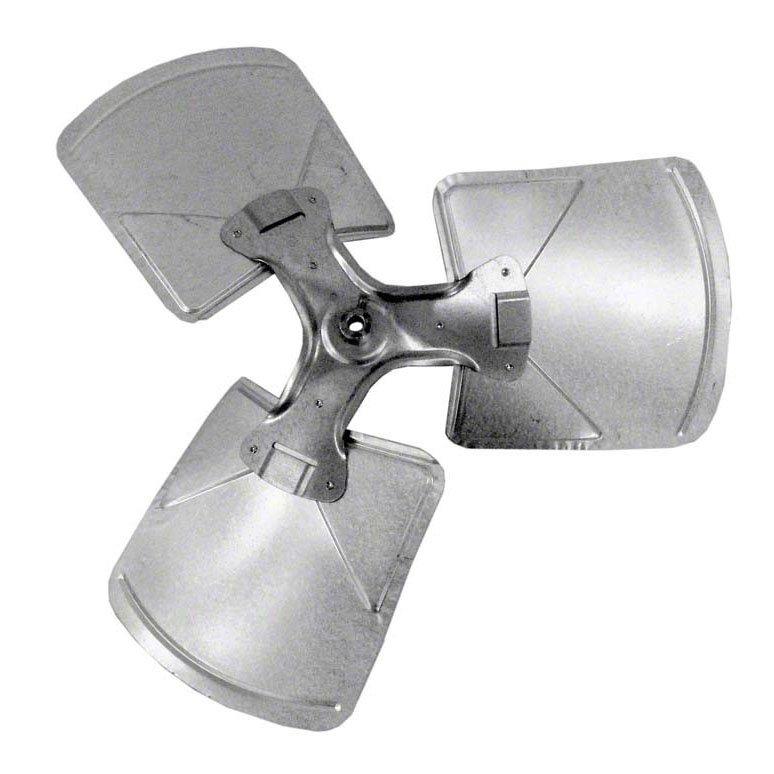

Raypak - Fan Blade, 5100
Raypak - Fan Blade, 5100
SKU: 368637
Availability: This item is currently not available
$139.99
Out of Stock
#2 Raypak - Analog Transformer
Raypak - Analog Transformer
SKU: 362218
Availability: In Stock
$54.99
Add To Cart
#2
Raypak - Fan Blade, 6100, 5100ti
Raypak - Fan Blade, 6100, 5100ti
SKU: 369460
Availability: This item is currently not available
$179.99
Out of Stock
#3
Raypak - Bypass Assembly
Raypak - Bypass Assembly
SKU: 360482
Availability: This item is currently not available
$265.99
Out of Stock
#3 Raypak - Water Pressure Swtich
Raypak - Water Pressure Swtich
SKU: 360290
Availability: In Stock
$72.99
Add To Cart
#3
Raypak - Low Pressure Switch
Raypak - Low Pressure Switch
SKU: 365426
Availability: This item is currently not available
$69.99
Out of Stock
#4 Raypak - Contactor, 3 Phase, 6350, 8350
Raypak - Contactor, 3 Phase, 6350, 8350
SKU: 362155
Availability: In Stock
$89.99
Add To Cart
#4
Raypak - PVC Union
Raypak - PVC Union
SKU: 633057
Availability: This item is currently not available
$44.99
Out of Stock
#5
Raypak - TX Valve, 5350
Raypak - TX Valve, 5350
SKU: 366126
Availability: This item is currently not available
$299.99
Out of Stock
#5 Raypak - Capacitor, 6310ti
Raypak - Capacitor, 6310ti
SKU: 368408
Availability: In Stock
$99.99
Add To Cart
#7
Raypak - Defrost Control Switch
Raypak - Defrost Control Switch
SKU: 361987
Availability: This item is currently not available
$109.99
Out of Stock
#8
Raypak - Control Board (Replaces 5011028), 24V
Raypak - Control Board (Replaces 5011028), 24V
SKU: 633571
Details: Raypak Control Board (Replaces 5011028) - 24V
Availability: This item is currently not available
$169.99
Out of Stock
#9
Raypak - Delay on Break Timer
Raypak - Delay on Break Timer
SKU: 367910
Availability: This item is currently not available
$49.99
Out of Stock
#12
Raypak - Knob
Raypak - Knob
SKU: 365457
Availability: This item is currently not available
$19.99
Out of Stock
#13
Raypak - Potentiometer
Raypak - Potentiometer
SKU: 360385
Availability: This item is currently not available
$83.99
Out of Stock
#14
Raypak - Rotary Switch
Raypak - Rotary Switch
SKU: 361784
Availability: This item is currently not available
$99.99
Out of Stock
