Jandy Laars LX/LT Pool Heater Parts

Part Selector:

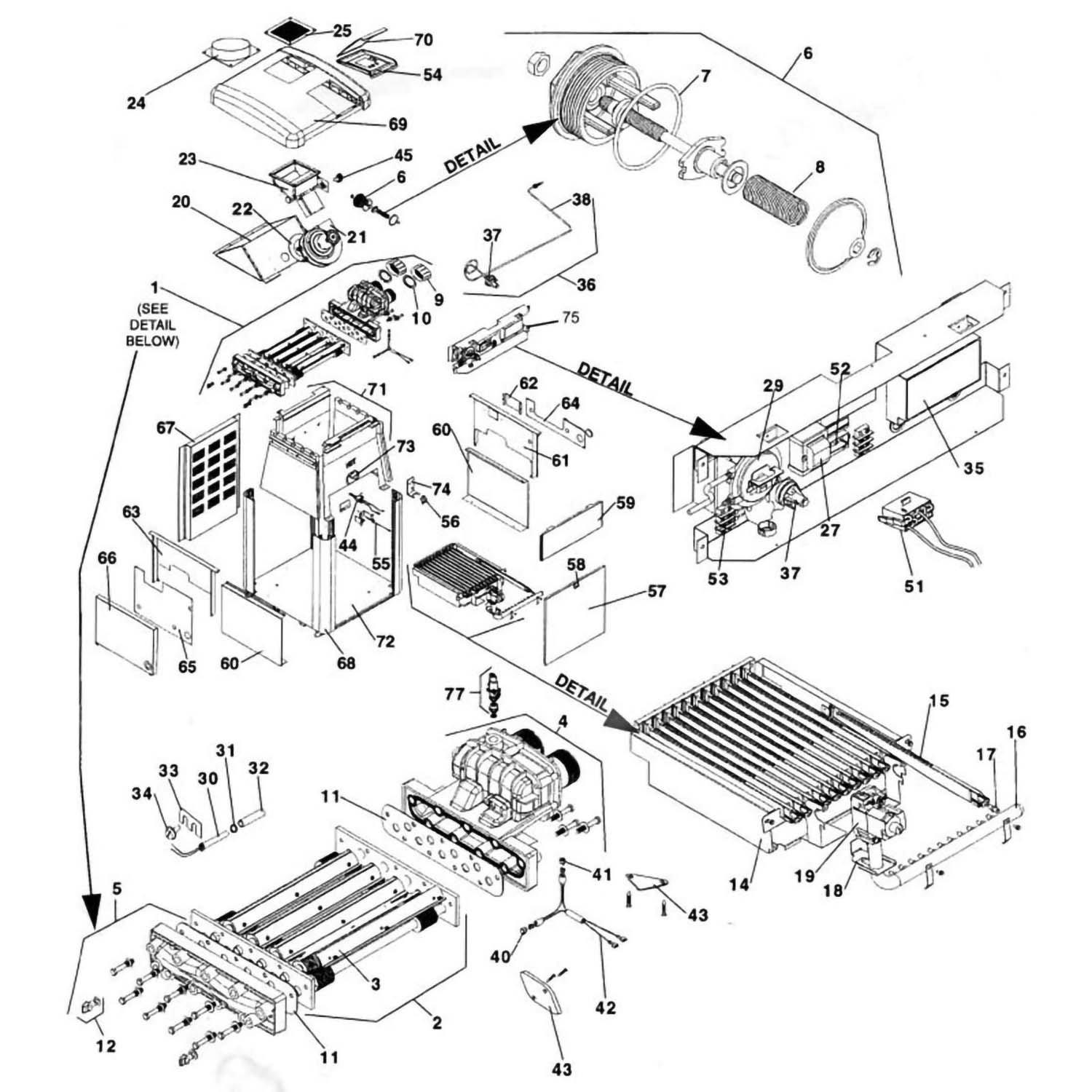

Jandy Laars LX/LT Pool Heater Parts
(Click to view larger)

Parts:

#1
Zodiac - Complete Heat Exchanger (Copper) 250
Zodiac - Complete Heat Exchanger (Copper) 250
SKU: 407459
Details: COMPLETE HEAT EXCHANGER (COPPER) 250
Availability: This item is currently not available
$1,089.99
Out of Stock

#2 Zodiac - Tube Assembly (Cu) with Hardware and Gaskets 400
Zodiac - Tube Assembly (Cu) with Hardware and Gaskets 400
SKU: 624654
Details: TUBE ASSY. (CU) W/HARDWARE & GASKETS 400
Availability: In Stock
$1,749.99

#4 Zodiac - Front Header, with Hardware and Gaskets
Zodiac - Front Header, with Hardware and Gaskets
SKU: 614021
Details: FRONT HEADER, W/HARDWARE & GASKETS
Availability: In Stock
$1,019.99

#5 Zodiac - Rear Header, with Hardware and Gaskets
Zodiac - Rear Header, with Hardware and Gaskets
SKU: 614022
Details: REAR HEADER, W/HARDWARE & GASKETS
Availability: In Stock
$354.99

#6 Zodiac - By-Pass Assembly , with Hardware and Gaskets
Zodiac - By-Pass Assembly , with Hardware and Gaskets
SKU: 614023
Details: BY-PASS ASSY, W/HARDWARE & GASKETS
Availability: In Stock
$119.99

#7
Zodiac - Gasket, Bypass Assembly
Zodiac - Gasket, Bypass Assembly
SKU: 614024
Details: GASKET, BYPASS ASSEMBLY
Availability: This item is currently not available
$8.99
Out of Stock

#8 Zodiac - Spring, Bypass
Zodiac - Spring, Bypass
SKU: 614025
Details: SPRING, BYPASS
Availability: In Stock
$116.99

#9 Zodiac - Lx Coupling Kit, Set of 2, Nuts, Couplings, O-Rings
Zodiac - Lx Coupling Kit, Set of 2, Nuts, Couplings, O-Rings
SKU: 617078
Details: LX COUPLING KIT, SET OF 2, NUTS, COUPLINGS, O-RINGS
Availability: In Stock
$65.99

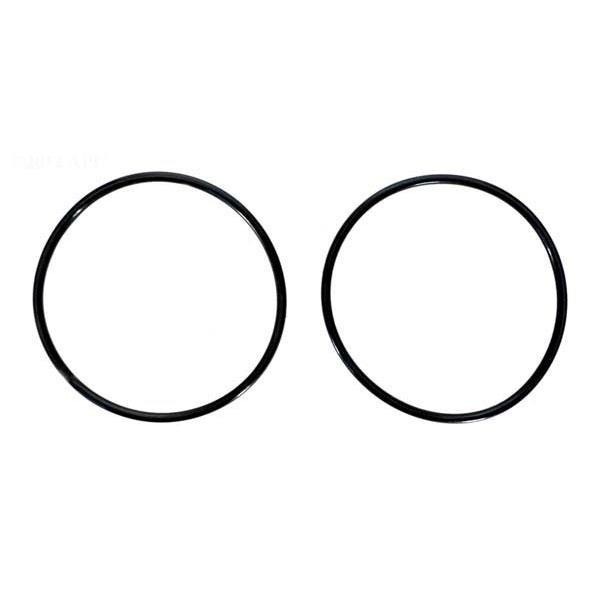

#10 Zodiac - Coupling O-Ring Set
Zodiac - Coupling O-Ring Set
SKU: 624377
Details: COUPLING O-RING SET
Availability: In Stock
$9.99

#11 Zodiac - Gasket, Header (Front Or Rear)
Zodiac - Gasket, Header (Front Or Rear)
SKU: 614026
Details: GASKET, HEADER (FRONT OR REAR)
Availability: In Stock
$23.99

#12 Zodiac - Header Drain Plug with Gasket (Set of 3)
Zodiac - Header Drain Plug with Gasket (Set of 3)
SKU: 614027
Details: HEADER DRAIN PLUG W/GASKET (SET OF 3)
Availability: In Stock
$17.99

#13
Zodiac - Hardware Kit and Gaskets, Heat Exchanger
Zodiac - Hardware Kit and Gaskets, Heat Exchanger
SKU: 624509
Details: HARDWARE KIT & GASKETS, HEAT EXCHANGER
Availability: This item is currently not available
$123.99
Out of Stock

#14
Zodiac - Burner, Tray Weldment
Zodiac - Burner, Tray Weldment
SKU: 407463
Details: BURNER, TRAY WELDMENT
Availability: This item is currently not available
$213.99
Out of Stock

#14
Zodiac - Burner, Tray Weldment 400
Zodiac - Burner, Tray Weldment 400
SKU: 403725
Details: BURNER, TRAY WELDMENT 400
Availability: This item is currently not available
$329.99
Out of Stock

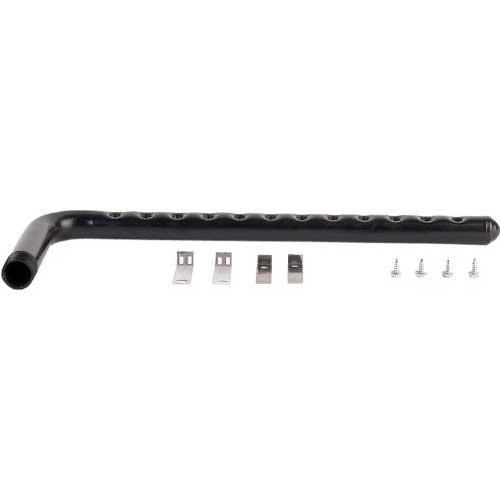

#16 Zodiac - Manifold, Gas (250)
Zodiac - Manifold, Gas (250)
SKU: 624521
Details: MANIFOLD, GAS (250)
Availability: In Stock
$147.99

#16 Zodiac - Manifold, Gas (400)
Zodiac - Manifold, Gas (400)
SKU: 624524
Details: MANIFOLD, GAS (400)
Availability: In Stock
$148.99

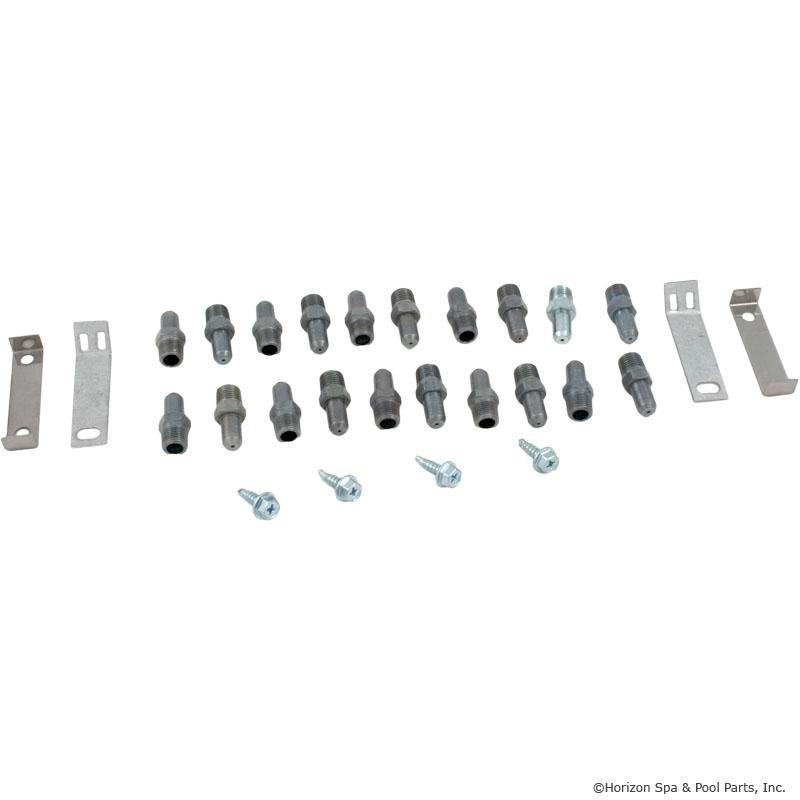

#17
Zodiac - Propane Orifice (0-5K Ft) (Set of 20)
Zodiac - Propane Orifice (0-5K Ft) (Set of 20)
SKU: 624459
Details: LP ORIFICE (0-5K FT) (SET OF 20)
Availability: This item is currently not available
$62.99
Out of Stock

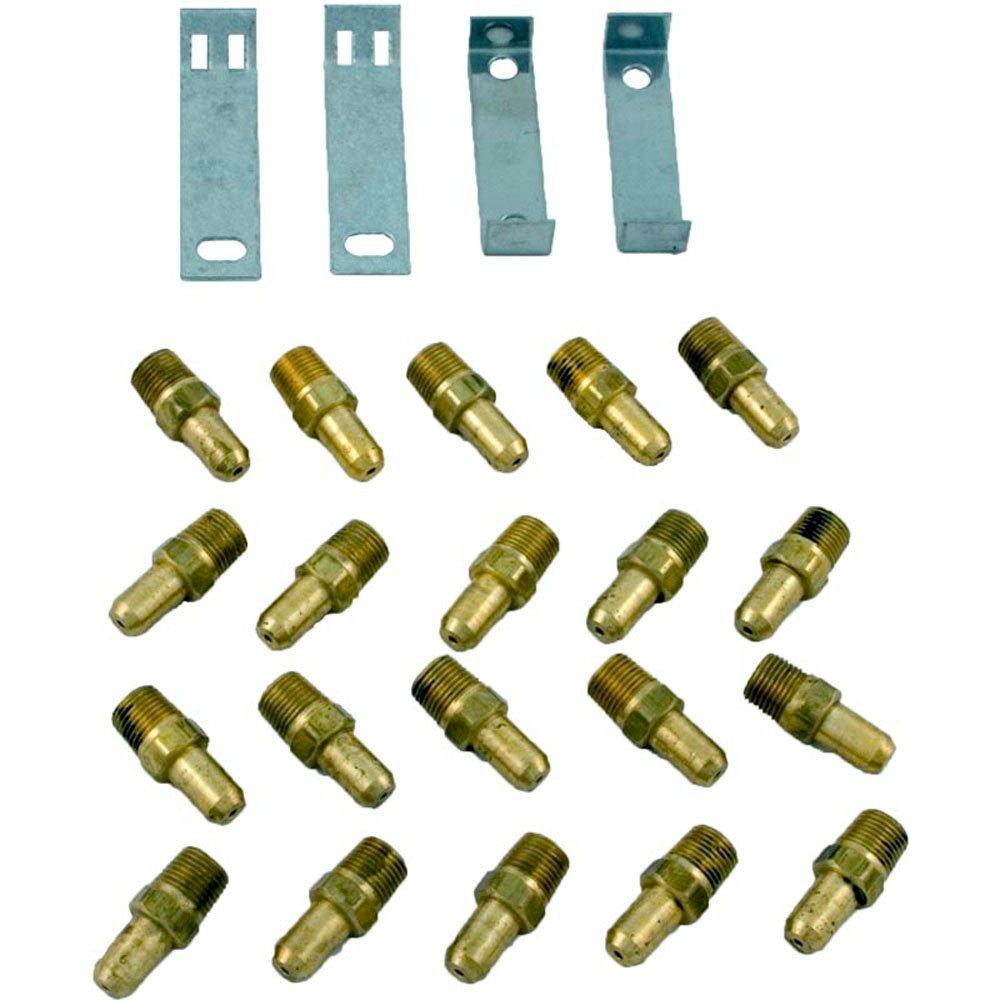

#17 Zodiac - Nat. Orifice (6K-9K Ft) (Set of 20)
Zodiac - Nat. Orifice (6K-9K Ft) (Set of 20)
SKU: 624463
Details: NAT. ORIFICE (6K-9K FT) (SET OF 20)
Availability: In Stock
$106.99

#18
Zodiac - Anti-Rotation Bracket
Zodiac - Anti-Rotation Bracket
SKU: 407465
Details: ANTI-ROTATION BRACKET
Availability: This item is currently not available
$54.99
Out of Stock

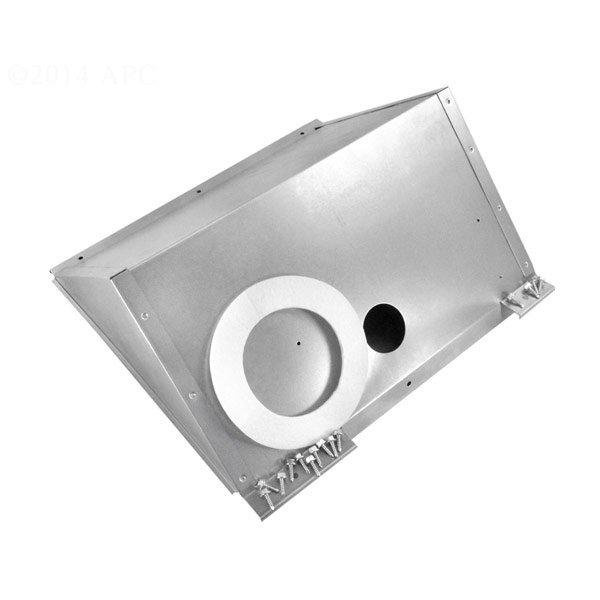

#20
Zodiac - Flue Collector (250)
Zodiac - Flue Collector (250)
SKU: 403730
Details: FLUE COLLECTOR (250)
Availability: This item is currently not available
$43.99
Out of Stock

#22 Zodiac - Gasket with Blower Mounting Hardware
Zodiac - Gasket with Blower Mounting Hardware
SKU: 624381
Details: GASKET W/BLOWER MOUNTING HARDWARE
Availability: In Stock
$16.99

#24 Jandy - LRS LX/LT 250 Heater 7in. Indoor Vent Kit
Jandy - LRS LX/LT 250 Heater 7in. Indoor Vent Kit
SKU: 624529
Details: Vent Cap Kits made by Jandy contain all of the items necessary for proper installation on the Jandy Legacy LZRE, LZRM heater models.
Availability: In Stock
$396.99

#24
Jandy - LRS LX/LT 400 Heater 9in. Indoor Vent Kit
Jandy - LRS LX/LT 400 Heater 9in. Indoor Vent Kit
SKU: 624530
Details: The Jandy Vent Cap Kits contain all of the items necessary for proper installation on the Jandy Legacy LZRE, LZRM heater models.
Availability: This item is currently not available
$183.99
Out of Stock

#27 Jandy - Transformer for Legacy
Jandy - Transformer for Legacy
SKU: 52885
Details: Replacement Transformer for Jandy Legacy Pool/Spa Heater.
Availability: In Stock
$78.99

#30 Zodiac - Thermister, Temperature Sensor
Zodiac - Thermister, Temperature Sensor
SKU: 52333
Details: THERMISTER, TEMPERATURE SENSOR
Availability: In Stock
$127.99

#32 Zodiac - Sleeve, Protector for Bulb+
Zodiac - Sleeve, Protector for Bulb+
SKU: 604872
Details: SLEEVE, PROTECTOR FOR BULB
Availability: In Stock
$5.99

#33 Zodiac - Retainer, Temperature Sensor
Zodiac - Retainer, Temperature Sensor
SKU: 448861
Details: RETAINER, TEMPERATURE SENSOR
Availability: In Stock
$7.99

#34 Zodiac - Screw, Retainer Bracket
Zodiac - Screw, Retainer Bracket
SKU: 609078
Details: SCREW, RETAINER BRACKET
Availability: In Stock
$1.99

#35 Zodiac - Ignition Control Replacement Kit
Zodiac - Ignition Control Replacement Kit
SKU: 604860
Details: IGNITION CONTROL REPLACEMENT KIT
Availability: In Stock
$350.99

#37 Jandy - Press Switch with O-Ring for Legacy
Jandy - Press Switch with O-Ring for Legacy
SKU: 604393
Details: Replacement Press Switch with O-Ring for Jandy Legacy Pool/Spa Heater.
Availability: In Stock
$92.99

#38 Zodiac - Siphon Loop
Zodiac - Siphon Loop
SKU: 614033
Details: SIPHON LOOP
Availability: In Stock
$28.99

#39 Zodiac - Hi Limit Switch Set of 2 (1 of Each Type)
Zodiac - Hi Limit Switch Set of 2 (1 of Each Type)
SKU: 604136
Details: HI LIMIT SWITCH SET OF 2 (1 OF EACH TYPE)
Availability: In Stock
$89.99

#41 Jandy - High-Limit Switch 150F for Legacy
Jandy - High-Limit Switch 150F for Legacy
SKU: 52353
Details: Replacement High-Limit Switch 150F for Jandy Legacy Pool/Spa Heater.
Availability: In Stock
$42.99

#42 Zodiac - Hi Limit Wire Harness
Zodiac - Hi Limit Wire Harness
SKU: 624427
Details: HI LIMIT WIRE HARNESS
Availability: In Stock
$89.99

#47 Zodiac - Wire Harness, Power Transformer
Zodiac - Wire Harness, Power Transformer
SKU: 624395
Details: WIRE HARNESS, POWER TRANSFORMER
Availability: In Stock
$26.99

#48 Zodiac - Wire Harness, Ignition Control
Zodiac - Wire Harness, Ignition Control
SKU: 624396
Details: WIRE HARNESS, IGNITION CONTROL
Availability: In Stock
$26.99

#49 Zodiac - Wire Harness, Gas Valve
Zodiac - Wire Harness, Gas Valve
SKU: 624394
Details: WIRE HARNESS, GAS VALVE
Availability: In Stock
$24.99

#50 Zodiac - Wire Harness, Safety Loop
Zodiac - Wire Harness, Safety Loop
SKU: 624429
Details: WIRE HARNESS, SAFETY LOOP
Availability: In Stock
$50.99

#51
Zodiac - Wire Harness, 240V Power Plug
Zodiac - Wire Harness, 240V Power Plug
SKU: 402589
Details: WIRE HARNESS, 240V POWER PLUG
Availability: This item is currently not available
$37.99
Out of Stock

#51 Zodiac - Wire Harness, 120V Power Plug
Zodiac - Wire Harness, 120V Power Plug
SKU: 624407
Details: WIRE HARNESS, 120V POWER PLUG
Availability: In Stock
$36.99

#52 Zodiac - Wire Harness, 15 Pin Connector
Zodiac - Wire Harness, 15 Pin Connector
SKU: 624437
Details: WIRE HARNESS, 15 PIN CONNECTOR
Availability: In Stock
$58.99

#53 Zodiac - Terminal Block
Zodiac - Terminal Block
SKU: 605025
Details: TERMINAL BLOCK
Availability: In Stock
$17.99

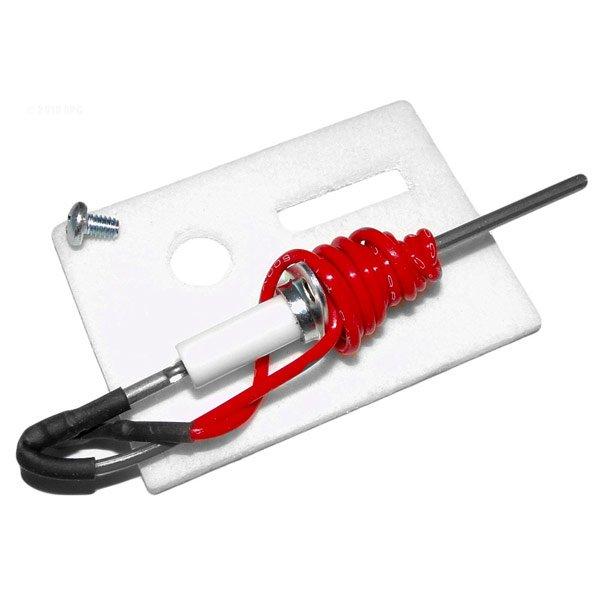

#55 Zodiac - Flame Sense Rod
Zodiac - Flame Sense Rod
SKU: 614038
Details: FLAME SENSE ROD
Availability: In Stock
$79.99

#56 Jandy - Ignition Control for Legacy
Jandy - Ignition Control for Legacy
SKU: 52182
Details: Replacement Ignition Control for Jandy Legacy Pool/Spa Heater.
Availability: In Stock
$12.99

#58 Jandy - Latch Assembly for Legacy
Jandy - Latch Assembly for Legacy
SKU: 305244
Details: Replacement Latch Assembly for Jandy Legacy Pool/Spa Heater.
Availability: In Stock
$17.99

#59
Jandy - Replacement Cover Panel Raceway 250
Jandy - Replacement Cover Panel Raceway 250
SKU: 369327
Details: Shop the Replacement Cover Panel Raceway 250 R0335103 online
Availability: This item is currently not available
$53.99
Out of Stock

#62
Jandy - Replacement Cover Panel Exhaust Switch
Jandy - Replacement Cover Panel Exhaust Switch
SKU: 403733
Details: Shop the Replacement Cover Panel Exhaust Switch R0336600 online
Availability: This item is currently not available
$12.99
Out of Stock

#69 Jandy - Replacement Top Panel 250
Jandy - Replacement Top Panel 250
SKU: 403726
Details: Shop the Replacement Top Panel 250 R0330503 online
Availability: In Stock
$358.99

#74 Jandy - Fusible Link Assembly for Legacy
Jandy - Fusible Link Assembly for Legacy
SKU: 633660
Details: Replacement Fusible Link Assembly for Jandy Legacy Pool/Spa Heater.
Availability: In Stock
$13.99

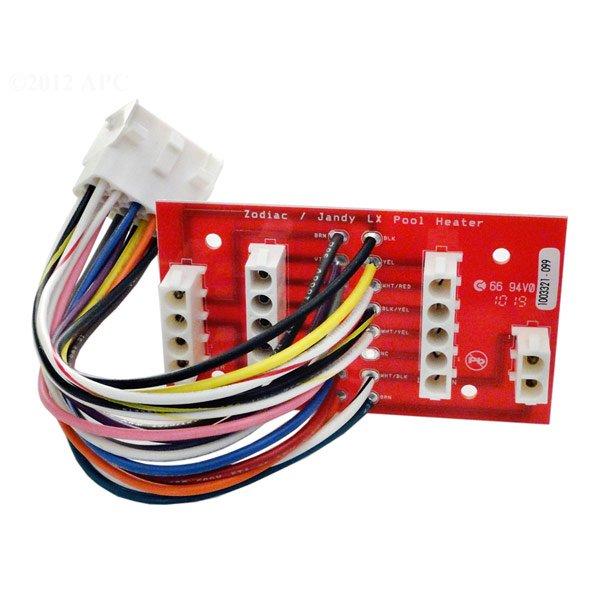

#75
Jandy - Replacement Raceway Circuit Board
Jandy - Replacement Raceway Circuit Board
SKU: 617083
Details: Shop the Replacement Raceway Circuit Board R0369500 online
Availability: This item is currently not available
$92.99
Out of Stock

#77 Jandy - 75 PSI Pressure Relief Valve Kit, Polymer for Legacy
Jandy - 75 PSI Pressure Relief Valve Kit, Polymer for Legacy
SKU: 624417
Details: Replacement 75 PSI Pressure Relief Valve Kit, Polymer for Jandy Legacy Pool/Spa Heater.
Availability: In Stock
$64.99

#79 Jandy - Temperature Rise Measurement Kit for Legacy
Jandy - Temperature Rise Measurement Kit for Legacy
SKU: 604137
Details: Replacement Temperature Rise Measurement Kit for Jandy Legacy Pool/Spa Heater.
Availability: In Stock
$214.99

#52355 Zodiac - Disc, Hi-Limit Switch 135 F
Zodiac - Disc, Hi-Limit Switch 135 F
SKU: 52355
Details: DISC, HI-LIMIT SWITCH 135 F
Availability: In Stock
$59.99

#614035
Zodiac - Exhaust Temp. Limit Switch
Zodiac - Exhaust Temp. Limit Switch
SKU: 614035
Details: EXHAUST TEMP. LIMIT SWITCH
Availability: This item is currently not available
$39.99
Out of Stock

#0
Zodiac - Vent Hardware Kit
Zodiac - Vent Hardware Kit
SKU: 408777
Details: VENT HARDWARE KIT
Availability: This item is currently not available
$20.99
Out of Stock
