Hayward - Heat Exchanger Assembly H250

Item No. 614839 | Manufacturer SKU: HAXHXA1253
Item No. 614839 | Manufacturer SKU: HAXHXA1253
Hayward  Heat Exchanger Assembly H250
Hayward  Heat Exchanger Assembly H250
Hayward  Heat Exchanger Assembly H250 Hayward  Heat Exchanger Assembly H250
$2,369.99

The Hayward Heat Exchanger Assembly is a replacement heat exchanger designed for Hayward H-250 pool and spa heaters. More Details

subscription order icon Membership Available

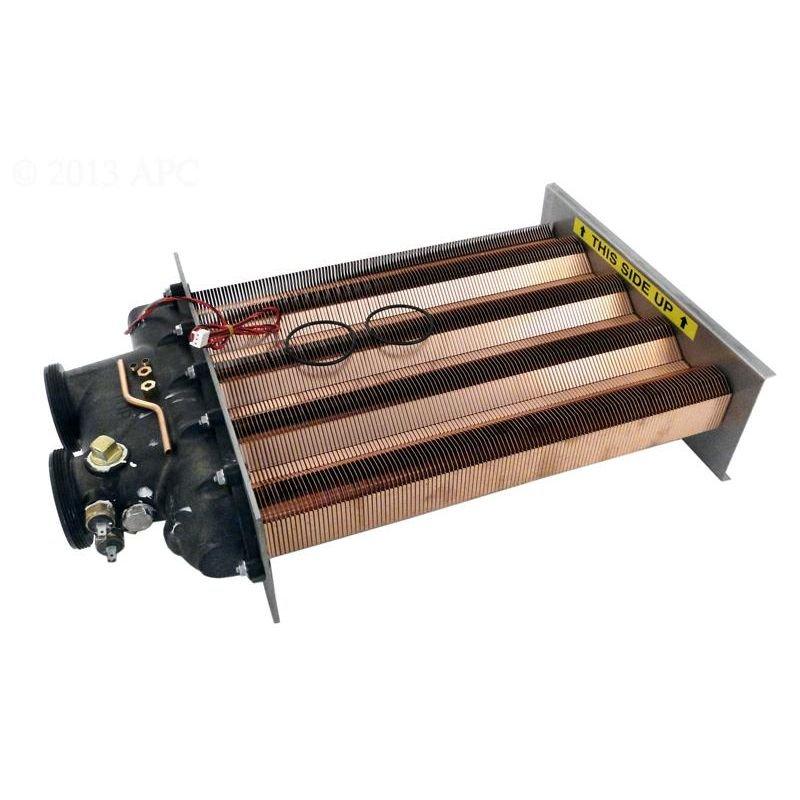

The Hayward Heat Exchanger Assembly is a replacement heat exchanger designed for Hayward H-250 pool and spa heaters.
  • Number of tubes: 8 (4 on top and 4 on bottom)
  • Total length: 25-3/4" (length from the outset of the front header to the curved end of the tubes)
  • Length: 18-5/16" (length from outside of endplate to outside of endplate)
  • Height: 5-3/8" (end plate height)
  • Width: 15-1/2" (measured on the endplate to show the endplate's length)
  • Stainless steel endplates
  • No markings

The Hayward Heat Exchanger Assembly is a replacement heat exchanger designed for Hayward H-250 pool and spa heaters, as well as Millivolt versions ED1 and ED2. To ensure all three versions are compatible with the Hayward Heat Exchanger Assembly H250, extra items have been included in this package for operational purposes. Please note, the tube bundle is not available as a separate item.

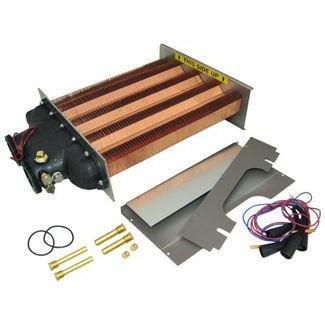

Items Included with the Tube Bundle:

  • (1) Complete front header mounted to tube bundle (includes plugs and high limits)
  • (1) Straight pressure switch tube
  • (1) Bent pressure switch tube
  • (2) Brass nut and ferrule for pressure switch tube
  • (2) O-ring for front header union connectors
  • (2) Thermostat wells - 3-1/2" L x 5/16" ID
  • (2) Thermostat wells - 3" L x 3/8" ID

Product Type: Pool Part
Manufacturer: Hayward
Warranty: 1-Year

One (1) Year Limited Warranty on Product, see Owner's Manual for a full description of warranty claims and coverage details.
