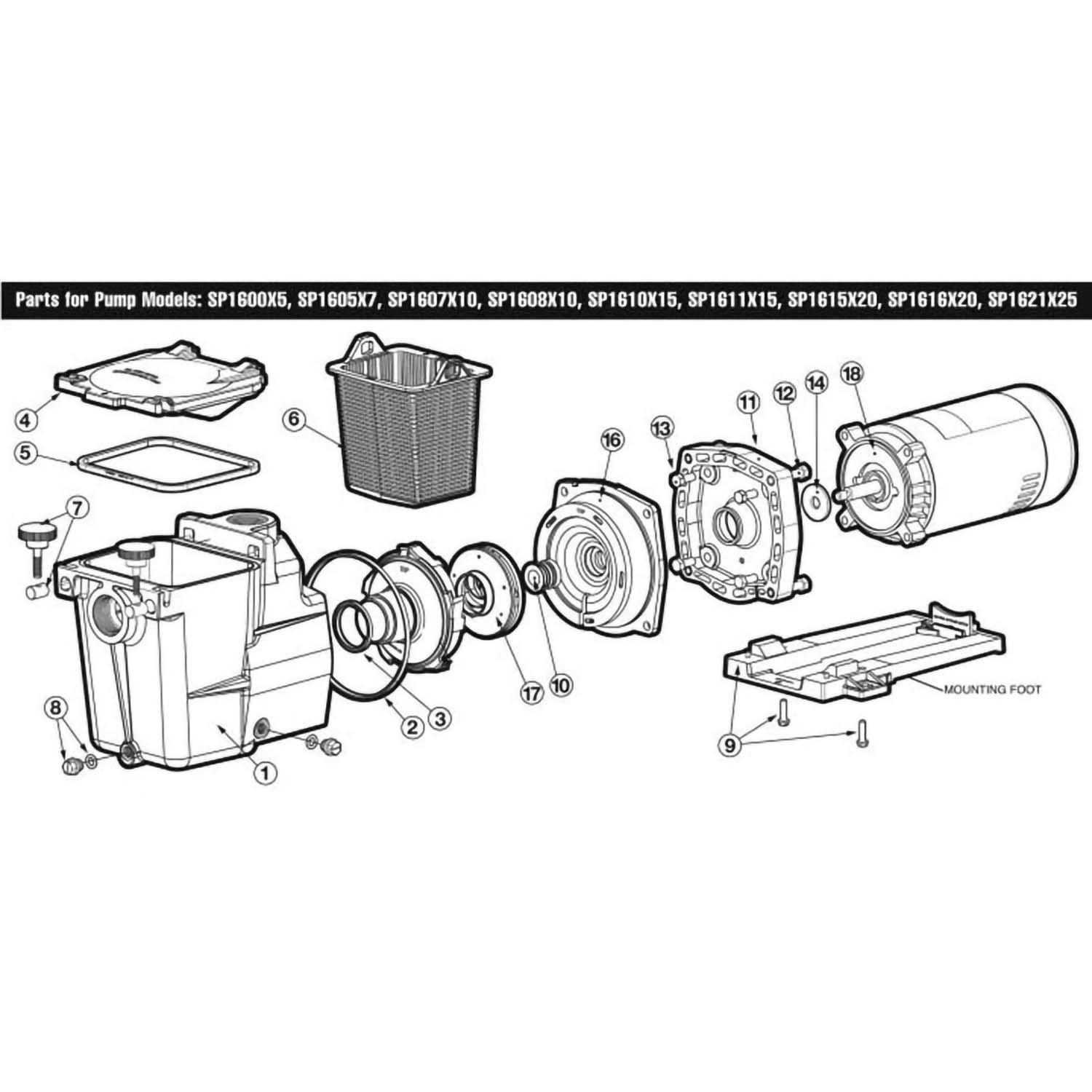

Hayward Super Pump Series Super Pump SP1600X Max-Rated Pump Part Schematic

Part Selector:

Hayward Super Pump Series Super Pump SP1600X Max-Rated Pump Part Schematic
(Click to view larger)

Parts:

#1 Hayward - 2" x 2" Strainer with Drain Plugs for Super Pump
Hayward - 2" x 2" Strainer with Drain Plugs for Super Pump
SKU: 40641
Details: Replacement 2" x 2" Strainer with Drain Plugs for the Hayward Super Pump High Performance Pool Pumps.
Availability: In Stock
$429.99

#2 All Seals - Replacement Seal Plate Gasket for Hayward Max-Flo
All Seals - Replacement Seal Plate Gasket for Hayward Max-Flo
SKU: 64333
Details: All Seals Replacement Seal Plate Gasket for Hayward Max-Flo Pool Pump
Availability: In Stock
$8.99

#2 Hayward - Housing Gasket for Super Pump
Hayward - Housing Gasket for Super Pump
SKU: 324676
Details: Replacement Housing Gasket for the Hayward Super Pump High Performance Pool Pumps.
Availability: In Stock
$18.99

#3 Hayward - Diffuser Gasket for Super Pump
Hayward - Diffuser Gasket for Super Pump
SKU: 305181
Details: Replacement Diffuser Gasket for the Hayward Super Pump High Performance Pool Pumps.
Availability: In Stock
$12.99

#4 Hayward - Clear Strainer Cover for Super Pump
Hayward - Clear Strainer Cover for Super Pump
SKU: 40780
Details: Replacement Clear Strainer Cover for the Hayward Super Pump High Performance Pool Pumps.
Availability: In Stock
$89.99

#5 Hayward - SPX1600S Strainer Cover Pump Lid Gasket for Super Pump
Hayward - SPX1600S Strainer Cover Pump Lid Gasket for Super Pump
SKU: 306349
Details: Hayward SPX1600S Replacement Strainer Cover Pump Lid Gasket for the Hayward Super Pump High Performance Pool Pumps.
Availability: In Stock
$20.99

#6 Aladdin - B-167 Generic Pump Basket Replacement for Hayward Super Pump
Aladdin - B-167 Generic Pump Basket Replacement for Hayward Super Pump
SKU: 36070
Details: Aladdin B-167 is a Generic Pump Basket Replacement for the Hayward Super Pump SPX1600M.
Availability: In Stock
$18.99

#7 Hayward - Hand Knob Kit for Super Pump
Hayward - Hand Knob Kit for Super Pump
SKU: 301122
Details: Replacement Hand Knob Kit for the Hayward Super Pump High Performance Pool Pumps.
Availability: In Stock
$27.99

#8 Hayward - Drain Plug (1991 and Prior) for Super Pump
Hayward - Drain Plug (1991 and Prior) for Super Pump
SKU: 607904
Details: Replacement Drain Plug (1991 and Prior) for the Hayward Super Pump High Performance Pool Pumps.
Availability: In Stock
$3.99

#8 Hayward - Drain Plug with Gasket (1992 and Later) for Super Pump
Hayward - Drain Plug with Gasket (1992 and Later) for Super Pump
SKU: 40582
Details: Replacement Drain Plug with Gasket (1992 and Later) for the Hayward Super Pump High Performance Pool Pumps.
Availability: In Stock
$9.99

#9 Hayward - Mounting Foot with Adapter and Screws for Super Pump
Hayward - Mounting Foot with Adapter and Screws for Super Pump
SKU: 38381
Details: Replacement Mounting Foot with Adapter and Screws for the Hayward Super Pump High Performance Pool Pumps.
Availability: In Stock
$31.99

#10 Hayward - Seal Assembly for Super Pump
Hayward - Seal Assembly for Super Pump
SKU: 40713
Details: Replacement Seal Assembly for the Hayward Super Pump High Performance Pool Pumps.
Availability: In Stock
$38.99

#10 Epp - Seal, Pump
Epp - Seal, Pump
SKU: 361459
Details: 201 mechanical shaft seal
Availability: In Stock
$18.99

#11 Hayward - Motor Mounting Plate for Super Pump
Hayward - Motor Mounting Plate for Super Pump
SKU: 40590
Details: Replacement Motor Mounting Plate for the Hayward Super Pump High Performance Pool Pumps.
Availability: In Stock
$72.99

#12 Hayward - Housing Cap Screw for Super Pump
Hayward - Housing Cap Screw for Super Pump
SKU: 40067
Details: Replacement Housing Cap Screw for the Hayward Super Pump High Performance Pool Pumps.
Availability: In Stock
$9.99

#13 Hayward - Motor Cap Screw for Super Pump
Hayward - Motor Cap Screw for Super Pump
SKU: 40062
Details: Replacement Motor Cap Screw for the Hayward Super Pump High Performance Pool Pumps.
Availability: In Stock
$18.99

#14 Hayward - Slinger for Super Pump
Hayward - Slinger for Super Pump
SKU: 221014
Details: Replacement Slinger for the Hayward Super Pump High Performance Pool Pumps.
Availability: In Stock
$7.99

#14 Epp - Slinger
Epp - Slinger
SKU: 429790
Availability: In Stock
$9.99

#17 Hayward - 2-1/2 HP Impeller for Super Pump
Hayward - 2-1/2 HP Impeller for Super Pump
SKU: 40422
Details: Replacement 2-1/2 HP Impeller for the Hayward Super Pump High Performance Pool Pumps.
Availability: In Stock
$99.99

#18
Century A.O. Smith - UST1072 C-Face 3/4 HP Single Speed Up Rated 56J Pool Motor
Century A.O. Smith - UST1072 C-Face 3/4 HP Single Speed Up Rated 56J Pool Motor
SKU: 620028
Details: The Century A.O. Smith UST1072 C-Face 3/4 HP Single Speed Up Rated 56J Pool Motor, 11.0/5.5A 115/230V
Availability: This item is currently not available
$289.99
Out of Stock

#18 Century A.O. Smith - UST1102 C-Face 1 HP Up-Rated 56J Pool and Spa Pump Motor
Century A.O. Smith - UST1102 C-Face 1 HP Up-Rated 56J Pool and Spa Pump Motor
SKU: 425517
Details: The Century A.O. Smith UST1102 C-Face 1HP Up-Rated Single Speed 115V/230V Pool and Spa Pump Motor is a single phase motor.
Availability: In Stock
$319.99

#18 Century A.O. Smith - UST1152 C-Face 1-1/2 HP Up-Rated 56J Pool and Spa Pump Motor
Century A.O. Smith - UST1152 C-Face 1-1/2 HP Up-Rated 56J Pool and Spa Pump Motor
SKU: 620049
Details: The Century A.O. Smith UST1152 C-Face 1-1/2 HP Up-Rated Single Speed 115V/230V Pool and Spa Pump Motor is a single phase motor.
Availability: In Stock
$319.99

#18 Century A.O. Smith - 56J C-Face 2-1/2 HP Single Speed Up Rated Pool Filter Motor, 12.6/11.4A 208-230V
Century A.O. Smith - 56J C-Face 2-1/2 HP Single Speed Up Rated Pool Filter Motor, 12.6/11.4A 208-230V
SKU: 620112
Details: The A.O. Smith Two Compartment NEMA C-Face Pool Filter Motor is a hard-working and energy efficient motor designed to meet demands of the pool
Availability: In Stock
$499.99

#18 Century A.O. Smith - UST1202 C-Face 2HP Single Speed Up Rated 56J Pool Filter Motor
Century A.O. Smith - UST1202 C-Face 2HP Single Speed Up Rated 56J Pool Filter Motor
SKU: 620076
Details: Century A.O. Smith UST1202 C-Face 2 HP Single Speed Up Rated 56J Pool Filter Motor, 19.6/10.4-9.8A 115/208-230V
Availability: In Stock
$399.99

#18 Hayward - SPX1607Z1M C-Face Single Speed 1HP Up-Rated 56J 115/230V Replacement Motor
Hayward - SPX1607Z1M C-Face Single Speed 1HP Up-Rated 56J 115/230V Replacement Motor
SKU: 220960
Details: Hayward SPX1607Z1M C-Face Single Speed 1HP Up-Rated 56J, 115/230V Replacement Motor for the Hayward Super Pump High-Performance Pool Pumps.
Availability: In Stock
$429.99

#18
Hayward - SPX1610Z1M Single Speed 1-1/2 HP Maxrate 115/230V Motor for Super Pump
Hayward - SPX1610Z1M Single Speed 1-1/2 HP Maxrate 115/230V Motor for Super Pump
SKU: 223497
Details: Hayward SPX1610Z1M Single Speed 1-1/2 HP Maxrate 115/230V Replacement Motor for Hayward Super Pump High-Performance Pool Pumps.
Availability: This item is currently not available
$419.99
Out of Stock

#18 Hayward - 2 HP Single Phase Threaded Shaft 115/230V Motor for Super Pump
Hayward - 2 HP Single Phase Threaded Shaft 115/230V Motor for Super Pump
SKU: 223498
Details: Replacement 2 HP Single Phase Threaded Shaft 115/230V Motor for the Hayward Super Pump High Performance Pool Pumps.
Availability: In Stock
$599.99

#18 Hayward - 1/2 HP Single Phase Threaded Shaft 115V Motor for Super Pump
Hayward - 1/2 HP Single Phase Threaded Shaft 115V Motor for Super Pump
SKU: 323474
Details: Replacement 1/2 HP Single Phase Threaded Shaft 115V Motor for the Hayward Super Pump High Performance Pool Pumps.
Availability: In Stock
$419.99

#18 Hayward - 2-1/2 HP Single Phase Threaded Shaft 115/230V Motor for Super Pump
Hayward - 2-1/2 HP Single Phase Threaded Shaft 115/230V Motor for Super Pump
SKU: 223651
Details: Replacement 2-1/2 HP Single Phase Threaded Shaft 115/230V Motor for the Hayward Super Pump High Performance Pool Pumps.
Availability: In Stock
$729.99

#18 Hayward - 3/4 HP Single Phase Threaded Shaft 115/230V Motor for Super Pump
Hayward - 3/4 HP Single Phase Threaded Shaft 115/230V Motor for Super Pump
SKU: 223496
Details: Replacement 3/4 HP Single Phase Threaded Shaft 115/230V Motor for the Hayward Super Pump High Performance Pool Pumps.
Availability: In Stock
$379.99
