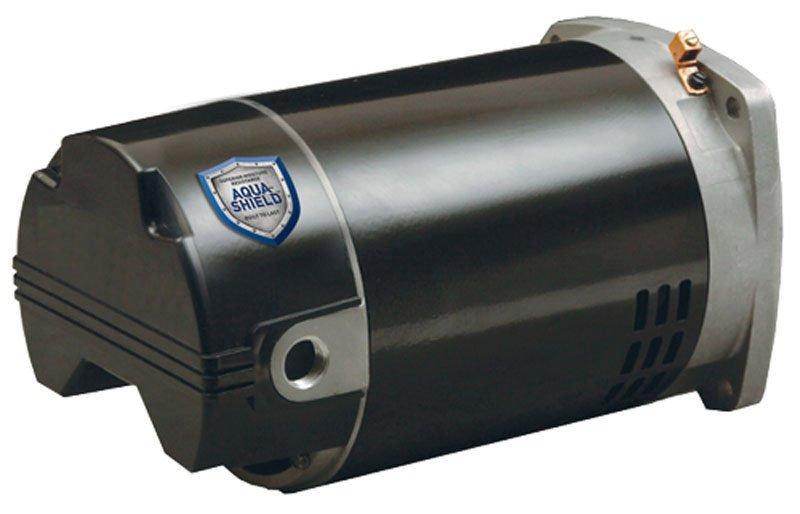

U.S. Motors - Emerson EB852 Square Flange Single Speed 3/4HP Up-Rated 56Y Pump Motor
$262.99
The U.S. Motors Emerson EB852 Square Flange Single Speed 3/4HP Up-Rated 56Y Pump Motor is a reliable motor that provides efficiency due to its 56 frame body.
More Details
Membership Available
The U.S. Motors Emerson EB852 Square Flange Single Speed 3/4HP Up-Rated 56Y Pump Motor is a reliable motor that provides efficiency due to its 56 frame body.
- 1081 Design
- Shaft Threads 1/2-20 UNF-2A
- Continuous Duty
- 50 Degrees Celsius Ambient
- Voltage Selection Device (Dual Voltage Only)
- Triple Bearing Protection
- Switchless Design
- Service Factor: 1.25
- RPM: 3450
- Length without Shaft: 11.24
- 5.4/10.8A 115V/230V
The Emerson 56 Y-Frame is a reliable motor that provides power and efficiency in its 56 frame body. Boasting Two Compartment and stainless steel design, it's made to handle harsh pool and spa environments. Protected by sealed ball bearings and an open drip-proof enclosure, the Emerson 56 Y-Frame motor is sure to bring you years of use. Its threaded shaft allows for a secure fit while providing a stronger structure. Its large 6.5 frame is built for extremely durable housing and its thermally protected, Class B insulated design keeps the motor cool to prevent overheating. The Emerson 56 Y-Frame is a single speed pool and spa motor with up-rated 3/4 HP, giving it the capability to perform at higher standards for maximum power.
Featuring basic Single Phase wiring, the Emerson 56 Y-Frame Hayward TriStar motor delivers efficient operation. Little maintenance is required and the Emerson 56 Y-Frame Hayward TriStar motor is built to last
Advanced in its design, the Emerson 56 Y-Frame Hayward TriStar motor comes with a Y-Frame, indicating a special non-standard mounting configuration
The Emerson 56 Y-Frame Hayward TriStar motor is designed with standard efficiency, promising durability and quality performance while operating at an efficient level just below a premium model
| Service Factor: | 1.25 - 1.50 |
| Pool Type: | In Ground |
| Voltage: | 120V / 240V |
| Flange Type: | Square Flange |
| Energy Efficiency: | High Energy Efficiency |
| Speed Settings: | Single Speed |
| Voltage: | 115V / 230V |
| Horsepower: | 3/4 HP |
| Rating Type: | Up-Rated |
| Motor Frame: | 56 Frame |
| Product Type: | Pool Motor |
| Manufacturer: | U.S. Motors Emerson |
| Product Type: | Pool Part |
| Pump Speed: | Single |
| Service Factor: | 1.27 |
| Total Horsepower: | 0.95 THP |
See Owner's Manual for details
