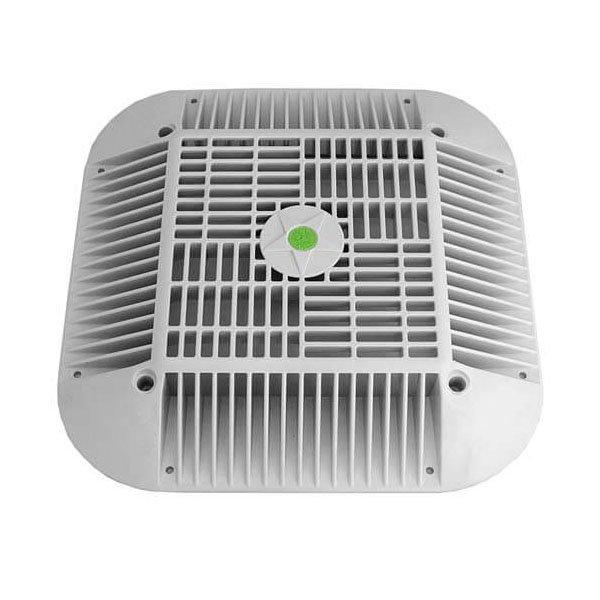

Aquastar Retrofit Suction Outlet Cover & Frame
$155.99
-
$319.99
AquaStar anti-entrapment grates are made to the highest standard of quality, resulting in superior, dependable products that endure despite exposure to harsh chemicals and intense UV light.
More Details
Membership Available
Select:
AquaStar anti-entrapment grates are made to the highest standard of quality, resulting in superior, dependable products that endure despite exposure to harsh chemicals and intense UV light.
Square Anti-Entrapment Suction Outlet Cover Retrofits to Pool Drain
Our AquaStar Retrofit Suction outlet covers are compliant with the Virginia Graeme-Baker Pool and Spa Safety Act (ANSI/APSP 16-2011 and NSF/ANSI 50-2009a. The Retrofit design allows you to install the 14" x 14" over existing sumps/frames up to 13" and the 16" x 16" over all existing sumps/frames up to 15". Covers are suitable for single or multiple drain use and manufactured from superior UV-resistant engineered polymers. All components (cover, sump, screws) meet or exceed ANSI/APSP 16-2011 and NSF/ANSI 50-2009a national standards and ASTM G154 UV testing exposure.
Covers are also available in blue, dark gray, and tan. For more information and special ordering colors call our Commercial Pool Experts at 1-800-765-7946.
14" x 14" Square:
For single or multiple drain use
3" minimum sump depth (See installation instructions)
Single -
Floor: 560 GPM at 2.1 fps
Wall: 300 GPM at 1.2 fps
Floor/wall: 394 GPM at 1.5 fps
Floor/wall: 261.8 GPM at 1.0 fps
84 square inch opening
16" x 16" Square
Single - 3" sump depth
Floor: 460 GPM at 1.46 fps
Wall: 445 GPM at 1.4 fps
Floor/wall: 472.2 GPM at 1.5 fps
Floor/wall: 314.8 GPM at 1.0 fps
When 1.0 or 1.5 fps installations are not required, always use the lower tested flow rate
101 square inch opening
