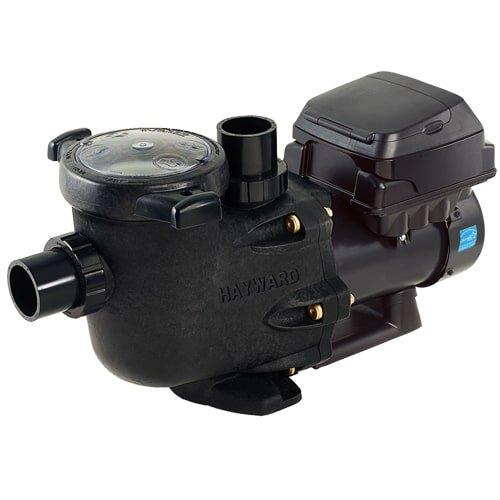

Hayward - W3SP3202VSP TriStar Variable Speed Pool Pump, 1.85 THP, 115/230V

Item No. 340086 | Manufacturer SKU: W3SP3202VSP
Item No. 340086 | Manufacturer SKU: W3SP3202VSP
Hayward  W3SP3202VSP TriStar Variable Speed Pool Pump 1.85 THP 115/230V
Hayward  W3SP3202VSP TriStar Variable Speed Pool Pump 1.85 THP 115/230V
Hayward  W3SP3202VSP TriStar Variable Speed Pool Pump 1.85 THP 115/230V
ECO Friendly
$1,649.00

Hayward W3SP3202VSP TriStar Variable Speed Energy Efficient Pool Pump, 1.85 THP, 115/230V provides a simple install with quieter than ever performance. More Details

subscription order icon Membership Available

Hayward W3SP3202VSP TriStar Variable Speed Energy Efficient Pool Pump, 1.85 THP, 115/230V provides a simple install with quieter than ever performance.
  • 1.85 Total Horsepower Variable Speed Pool Pump
  • Includes Pump User Interface
  • Can be used as a Stand Alone Pump
  • 600-3450 RPM
  • Extra Large Basket for Easy Debris Removal
  • Permanent magnet motor

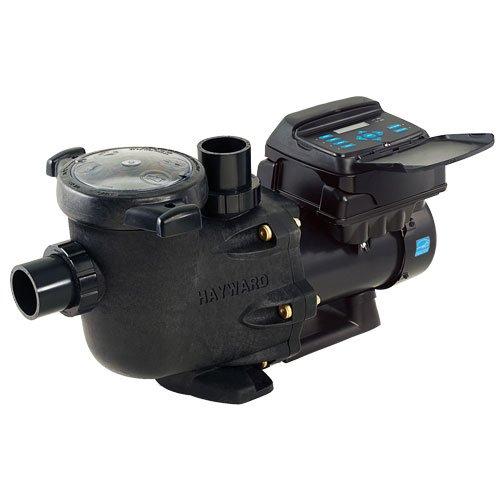

  • Fully programmable digital control interface

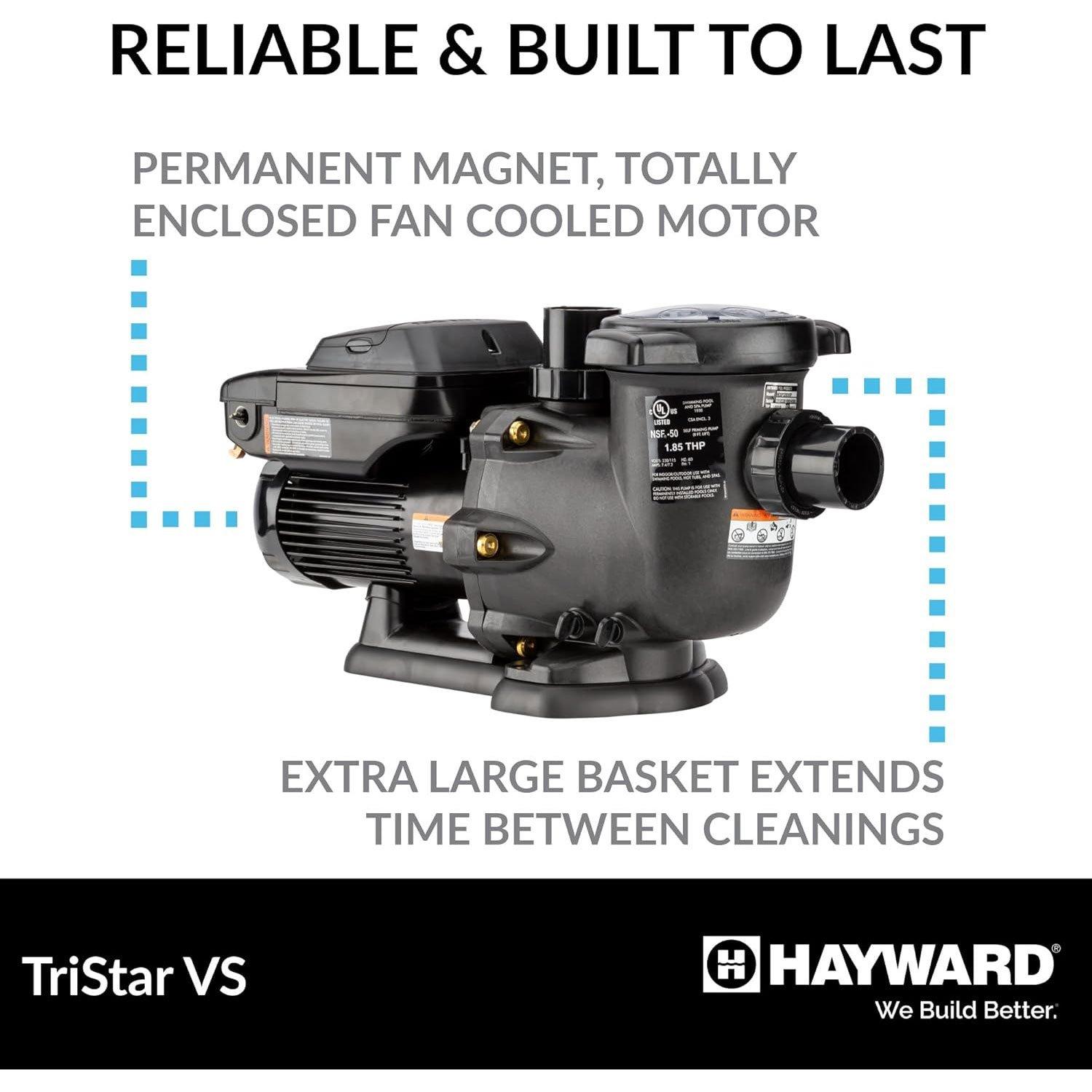

Hayward W3SP3202VSP TriStar Variable Speed Energy Efficient Pool Pump, 1.85 THP provides a simple install with quieter than ever performance. The W3SP3202VSP TriStar VS Pump features heavy-duty, high-performance pump technology providing a higher flow rate and circulation rate. The Hayward W3SP3202VSP outperforms the competition when it comes to flow, efficiency and value due to its rounded volute and basket. It's the first to feature a large, no-rib strainer basket design that's quick and easy to clean and a pump lid that can be easily taken off with a single hand. The TriStar VS come with two pump bases allowing it to seamlessly retrofit into existing pool systems with its 2" ID and 2-1/2 ID threaded unions. The Hayward W3SP3202VSP is fully programmable, digital control interface rotates to four different positions or mounts to the wall for more convenient access and viewing. It uses permanent magnet, totally enclosed fan cooled (TEFC) motor that offers incredible energy efficiency and reliability.

Looking for Hayward W3SP3202VSP TriStar Variable Speed Pool Pump Replacement Parts?

If you need a replacement part for your Hayward W3SP3202VSP TriStar Variable Speed Pool Pump, click the following button to view the part list schematic and all available parts.

Click here for Hayward W3SP3202VSP TriStar Pool Pump Replacement Parts

ENERGY STAR certified
Hayward TriStar VS Pumps are the most energy efficient pumps on the market, according to ENERGY STAR third party test data. The pumps can save up to 90% on energy costs and qualify for local utility rebates in qualifying areas.
Variable Speed Pool Pump
Hayward TriStar VS Variable Speed Pumps can significantly lower energy costs by running at a lower speed. This will also improve filtration, operate at a quiet level, and put less stress on your pool equipment.

Product Type: Pool Pump
Energy Star Certified: Yes
Features: Energy Star Certified
Installation Type: Residential
Pump Speed: Variable Speed
Union Connection: 2 x 2-1/2 inches
Eco-Friendly: Yes
Energy Efficient: Yes
Pool Type: In Ground
Manufacturer: Hayward
Horsepower: 1.85 THP
Warranty: 3-Year
Voltage: 115 / 230V

Three (3) Year Limited Warranty on Product, see Owner's Manual for a full description of warranty claims and coverage details.
