Hayward - W3H400FDP Universal H-Series, Low NOx, 400K BTU, Propane Gas, Pool & Spa Heater
$4,199.00
Hayward W3H400FDP Universal H-Series, Low NOx, 400,000 BTU, Propane Gas, Pool and Spa Heater delivering durability, reliability, and energy efficiency.
More Details
Membership Available
Frequently Bought Together
+
Total price: $4,271.99
Total price: $4,271.99
This item:
W3H400FDP Universal H-Series, Low NOx, 400K BTU, Propane Gas, Pool & Spa Heater
$4,199.00OSCS-HC Climate Shield Pool Heater Cover, White
$72.99
Hayward W3H400FDP Universal H-Series, Low NOx, 400,000 BTU, Propane Gas, Pool and Spa Heater delivering durability, reliability, and energy efficiency.
- "Totally Managed" Flow saving energy by reducing pump run time
- Silicon Nitride Ignition System
- Cupro-Nickel Heat Exchanger ensures compatibility with almost all pool systems including salt pools
- Low NOx certification
- 83-84% industry-leading thermal efficiency
- Patented header by-pass design
- Corrosion resistance
- Digital LED display
- High and low voltage options (110V or 220V)
- 3/4" Gas Connection at heater
- Choice of left-side or right-side electric, gas and water connections (delivered right-side by default)
- 2" or 2-1/2" plumbing connections
- Important: Instructions for Accepting Your Freight Shipment
The Hayward Universal H-Series Propane Gas Pool and Spa Heater brings you quiet, efficient heating for your pool and spa. Hayward Propane Gas heaters are quiet, certified for low NOx emissions and eco-friendly making for a dependable, safe pool heater you can trust. Combining advanced technology with universal-fit flexibility, the Hayward H-Series is perfect for new or existing pool systems, delivering state-of-the-industry performance.
Hayward Universal H-Series Pool Heater Features
The Hayward Universal H-Series Propane Gas Pool and Spa Heater utilizes industry-leading hydraulic performance, reducing circulation pump run time while saving energy. The cupro-nickel heat exchanger provides exceptional corrosion resistance and erosion protection Ideal for today's salt-based electronic chlorination systems. Silicon Nitride Ignition System and Insulated Fire Tile® Combustion Chamber allow for fast dependable lighting while securely trapping the heat, delivering the most performance for every BTU. The digital LED display maintains water temperature, monitoring the heater's performance with self-diagnostic capability. The Hayward H-Series' Finn Plate cupro-nickel heat exchanger has special V-groove design for faster heating and longer life. Hayward Universal H-Series, Low NOx, 400,000 BTU, Propane Gas, Pool and Spa Heater delivers energy efficient heating to your pool's water that you can trust.Hayward Universal H-Series - Versatility & Power
Using propane gas, the Hayward H-Series is reliable and boasts higher heating efficiencies. Being extremely versatile, Hayward Universal H-Series Heaters allow you to configure water, gas and electric connections on either the right or left side for unprecedented installation flexibility. Connecting your propane gas line is super easy to install with the Hayward H-Series built-in 3/4" gas connection. With a lightweight, low-profile, compact design, the Hayward Propane Gas Pool and Spa Heater installs with virtually all new and existing equipment pads.
Common Questions
What are the dimensions of the unit?- Heater Dimensions: 36-1/2" Width x 29-1/2" Depth x 24" Height
- Weight: Approx. 210 lbs.
- Cupro-Nickel Heat Exchanger
- Yes, this unit meets all state air quality regulations.
- This unit is plumbed 2" and comes with 2" unions for installation.
Totally Managed Flow provides exceptional corrosion resistance and erosion protection. Ideal for today's salt-based electronic chlorination systems.
Industry-leading hydraulic performance saves energy by reducing circulation pump run time.

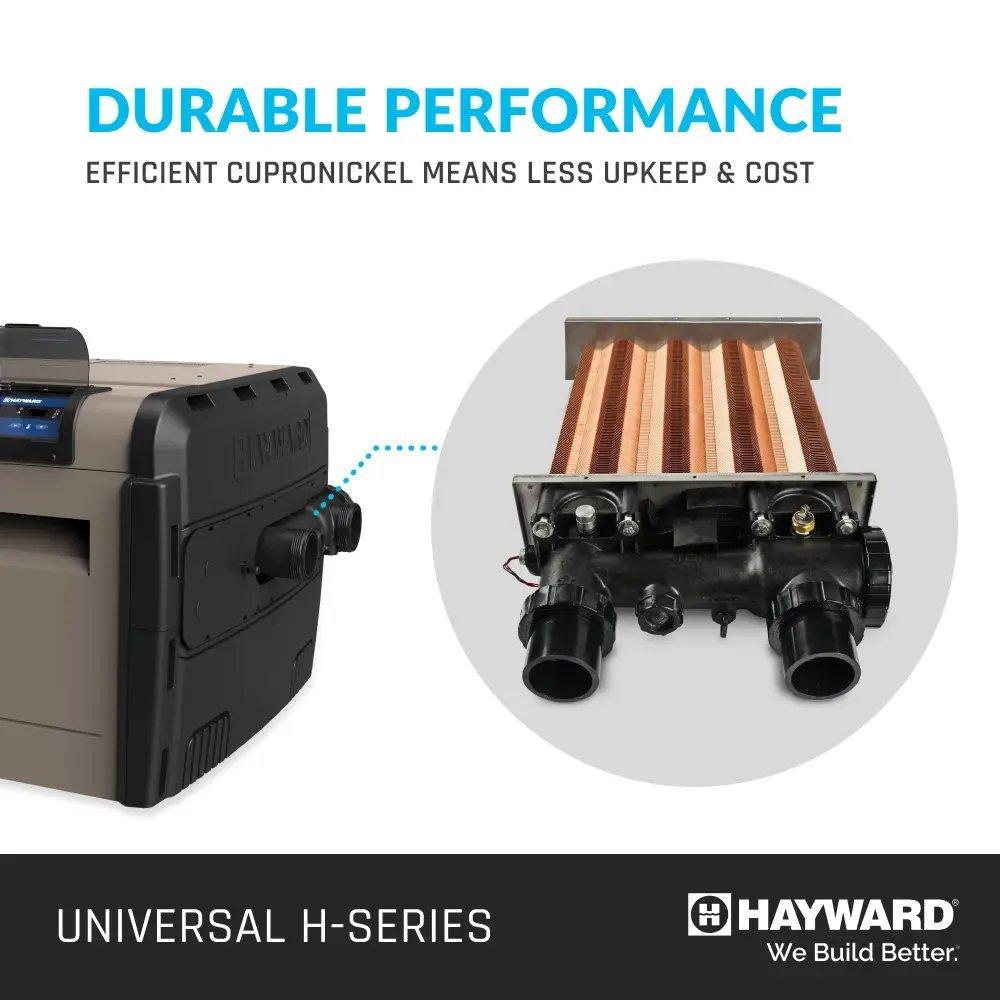

State-of-the-industry Finn Plate heat exchanger with special V-groove design for faster heating and longer life.
Installation is simplified with voltage that adapts to either 110V or 220V.
High and low voltage connections are easy and convenient with left and right side junction boxes.
Exclusive silicon nitride ignition system for dependable lighting and reliable operation.

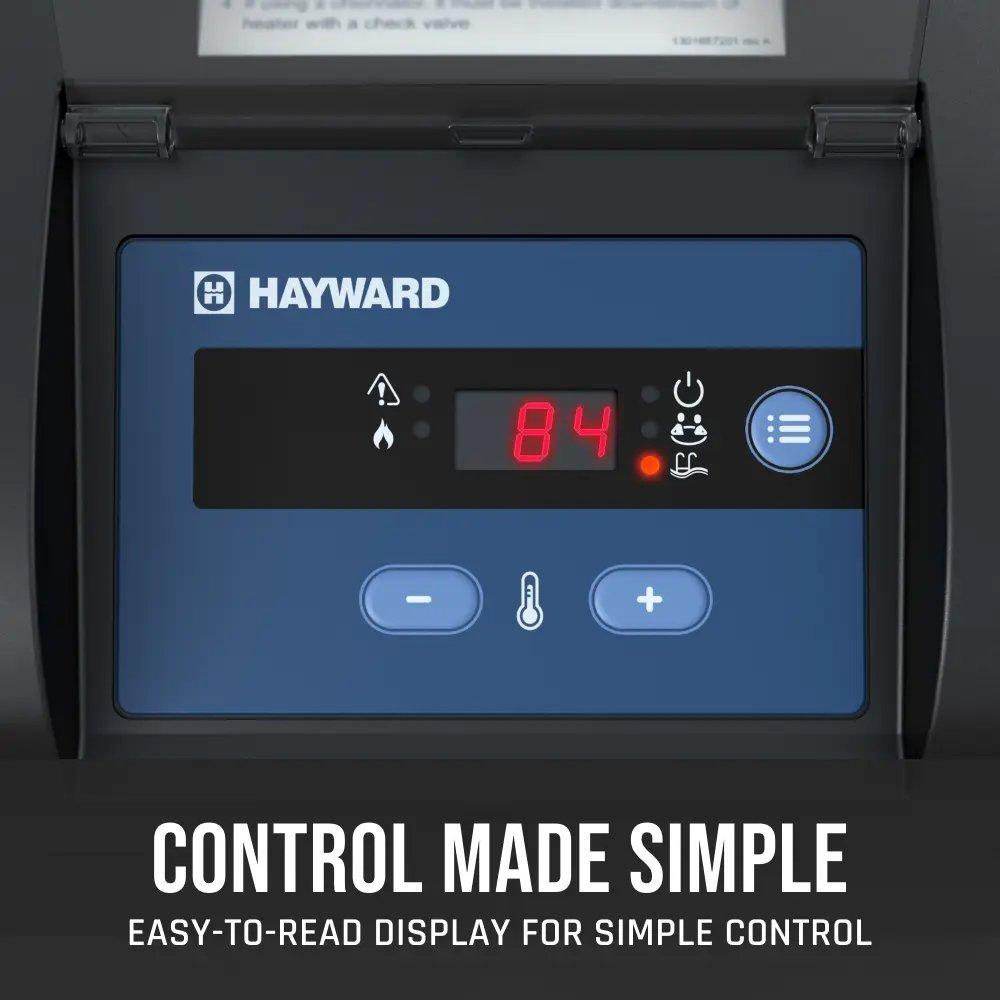

Electronic control display maintains water temperature; monitors heater performance with self-diagnostic capability
Unlike older forms of insulation, FireTile securely traps the heat, delivering the most performance from each BTU.
Environmentally responsible; complies with all current California and Texas air quality emission standards.
| Product Type: | Pool Heater |
| Heat Exchanger: | Cupro-Nickel |
| Controls: | Digital |
| Ignition: | Electronic |
| Emission: | Low NOx |
| Fuel Type: | Propane Gas |
| Installation Type: | Residential |
| Pool Type: | Spa/Hot Tub |
| Eco-Friendly: | Yes |
| Energy Efficient: | Yes |
| Pool Type: | In Ground |
| Voltage: | 110V / 220V |
| Heat Output: | 400,000 BTU |
| Elevation: | 0 - 2,000 ft |
| Manufacturer: | Hayward |
| Elevation: | 2,000 - 7,700 ft |
| Product Weight: | 210 lbs. |
| Warranty: | 3-Year |
| Product Dimensions: | 36.5" Width x 29.5" Length x 24" Height |
Three (3) Year Limited Warranty on Product, see Owner's Manual for a full description of warranty claims and coverage details.
