Intermatic - Timer DPST Dual Timer with 100 Amp CTR 240V
Membership Available

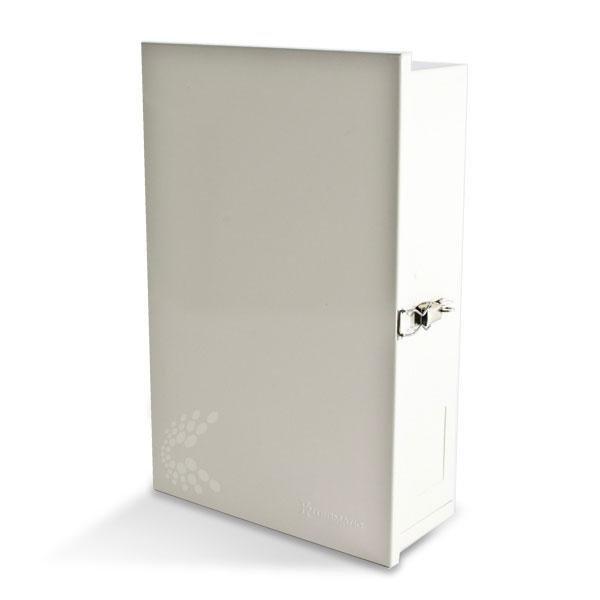

Intermatic Timer DPST Dual Timer with 100 Amp CTR 240V - T32404
- Case: 20-3/4 (52.7 cm) high x 12-3/4 (32.4 cm) wide x 4-1/4 (10.8 cm) deep, 0.048 steel with electrostatically applied light beige finish.
- Knockouts: Seven combination 1/2" - 3/4" and three combination 3/4-1 knockouts on the bottom. Five combination 1/2" - 3/4" on the left side. One 1-3/4 x 2-3/4 knockout on the right side for mounting switches and GFCI.
- Panel Rating: 125 Amp max. 120-240 VAC or 120-208 VAC single phase - 60Hz
- Time Switch Rating: 30 Amp Resistive Inductive, Tungsten or 1000 VA pilot duty each pole 120/208/240 VAC; 2 HP (24 FLA) - 120 VAC; 5 HP (28 FLA) - 240 VAC
- Agency Approval: CSA/C-US
The T40000R Series Control Panels reduce installation costs and provide all of the electrical requirements for any pool and/or spa installation. They offer an all-in one electrical control center which can be custom wired for a wide variety of requirements, and eliminate the need for additional junction boxes and service panels. The enclosure accepts any combinations of P1353ME or P4243ME or T100M or RC2000M or PF1000M Series mechanisms.
| Control System Type: | Control System |
| Parts and Hardware: | Timer |
| Product Type: | Automatic Control |
| Manufacturer: | Intermatic |
| Warranty: | 1-Year |
One (1) Year Limited Warranty on Product, see Owner's Manual for a full description of warranty claims and coverage details.
