Century A.O. Smith - ST1102 C-Face 1 HP Full Rated 56J Pool and Spa Pump Motor

Item No. 620046 | Manufacturer SKU: ST1102
Item No. 620046 | Manufacturer SKU: ST1102

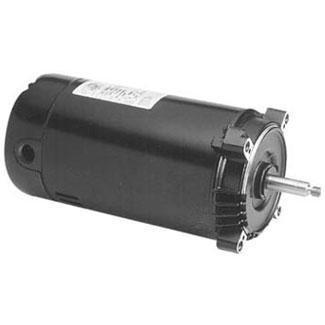

Century A.O Smith  ST1102 C-Face 1 HP Full Rated 56J Pool and Spa Pump Motor
Century A.O Smith  ST1102 C-Face 1 HP Full Rated 56J Pool and Spa Pump Motor
$319.99

The Century A.O. Smith ST1102 C-Face 1 HP Full-Rated Single Speed 115V/230V Pool and Spa Pump Motor is a single phase motor. More Details

subscription order icon Membership Available

The Century A.O. Smith ST1102 C-Face 1 HP Full-Rated Single Speed 115V/230V Pool and Spa Pump Motor is a single phase motor.
  • Auto Protector
  • NEMA 56C Face Mount
  • Open Dripproof
  • Capacitor Start and Capacitor Start-Capacitor Run
  • Rotation: CCW Pump End
  • Sealed Ball Bearings
  • Sealed switch design
  • 1081 Design
  • 50 C Ambient
  • 60 Hertz
  • 303 Stainless Steel Shaft

The Century Pool and Spa Pump Motor is a single phase motor with a permanent split capacitor for enhanced running efficiency. Equipped with an auto overload protector and ball bearings, the Century Pool and Spa Pump Motor provides long lasting operation. The Century Pool and Spa Pump Motor has a threaded shaft that allows for convenient and direct mounting. Available in horsepower ratings ranging from 1/2HP to 3HP, the Century A.O. Smith Pool and Spa Pump Motor comes in Full or Up-Rated models and provides long lasting and trustworthy performance.

Please Note: When replacing the motor on the pump, replacing the mechanical pump seal is required to ensure proper installation. Pump seal size varies depending on the pump and not the motor.

Single Phase
Single Phase wiring is basic with an alternating current that delivers efficient operation. Little maintenance is required and provides reliable performance
Different Frame Types
The different frame types include: C, J, Y, Z, JM, JP, or TCZ. These letters are combined with numbers to define standard specifications including the way the motor mounts onto the pump, its shaft height, and diameter
Standard Efficiency
This motor is designed with standard efficiency, running at a single speed for consistent and reliable operation

Service Factor: 1.50 - 1.75
Shaft Type: Keyed
Shaft Type: Threaded
Flange Type: C Flange
Speed Settings: Single Speed
Flange Type: J Flange
Phase Type: Single Phase
Horsepower: 1 HP
Service Factor: 1.25 - 1.50
Installation Type: Residential
Voltage: 120V / 240V
Voltage: 115V / 230V
Rating Type: Full-Rated
Product Type: Pool Motor
Energy Efficiency: Standard
Motor Frame: 56 Frame
Compatible Pumps: SP3010EEAZ
Compatible Pumps: PHPF1.0
Manufacturer: Century A.O. Smith
Warranty: 1-Year

One Year Warranty from Installation or Two Year Warranty from Manufacture Date, see Owner's Manual for a full description of warranty claims and coverage details.
