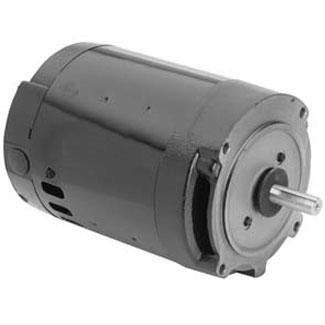

Century A.O. Smith - Squirrel Cage 56J 2 HP Three Phase Full Rated Pool Pump Motor, 7.0-6.6/3.3A 208-230/460V
$629.99
Squirrel Cage Centurion Square Flange Motors are premium replacement motors for pools and spas
More Details
Membership Available
Squirrel Cage Centurion Square Flange Motors are premium replacement motors for pools and spas
- Ball Bearings
- Cast Iron NEMA C Bracket
- 50/60 Hertz
- 40 C Ambient
- 303 Stainless Steel Shaft
- Class A or B Insulation
- Reversible (Three Phase)
Squirrel Cage Centurion Square Flange Motors are premium replacement motors for pools and spas. These motors are protected from water damage and have high-quality ventilation openings. They are equipped with ball bearings and stainless steel threaded shafts for protection against premature deterioration and sport Class B insulation, which is designed to keep motors from overheating. Operating at 60HZ, Squirrel Cage Centurion Square Flange Pool and Spa Motors are available with a 56Y-Frame, 1/2"P-3HP, and 208-230/460V for ideal performance.
Three Phase wiring runs steady and even for dependable performance and provides constant power without requiring a starting capacitor
The different frame types include: C, J, Y, Z, JM, JP, or TCZ. These letters are combined with numbers to define standard specifications including the way the motor mounts onto the pump, its shaft height, and diameter
This motor is designed with standard efficiency, running at a single speed for consistent and reliable operation
| Shaft Type: | Threaded |
| Horsepower: | 2 HP |
| Voltage: | 208 - 230V / 460V |
| Phase Type: | Three Phase |
| Installation Type: | Residential |
| Service Factor: | 1.00 - 1.25 |
| Speed Settings: | Single Speed |
| Rating Type: | Full-Rated |
| Product Type: | Pool Motor |
| Motor Frame: | 56 Frame |
| Energy Efficiency: | Standard |
| Manufacturer: | Century A.O. Smith |
| Warranty: | 1-Year |
One Year Warranty from Installation or Two Year Warranty from Manufacture Date, see Owner's Manual for a full description of warranty claims and coverage details.
