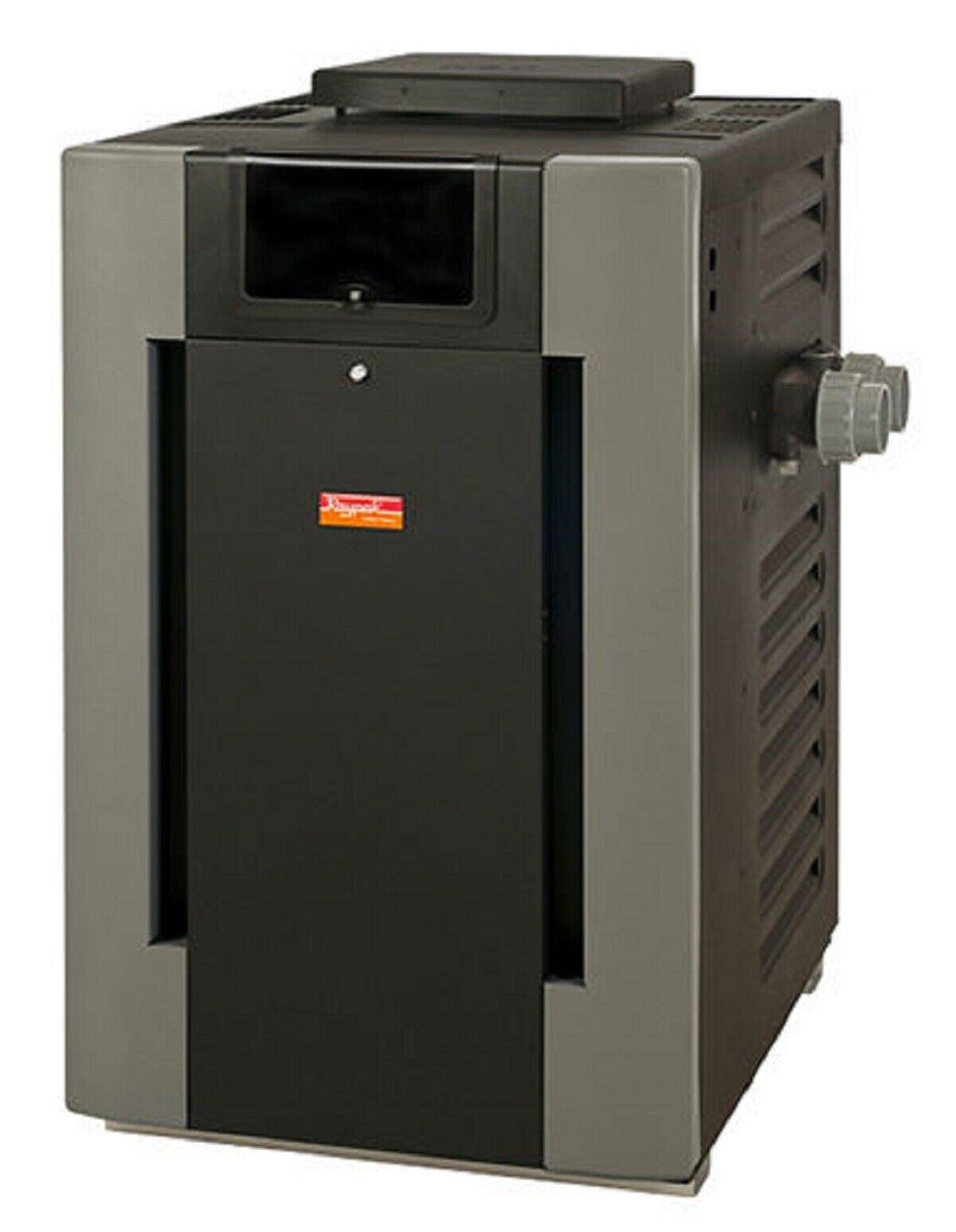

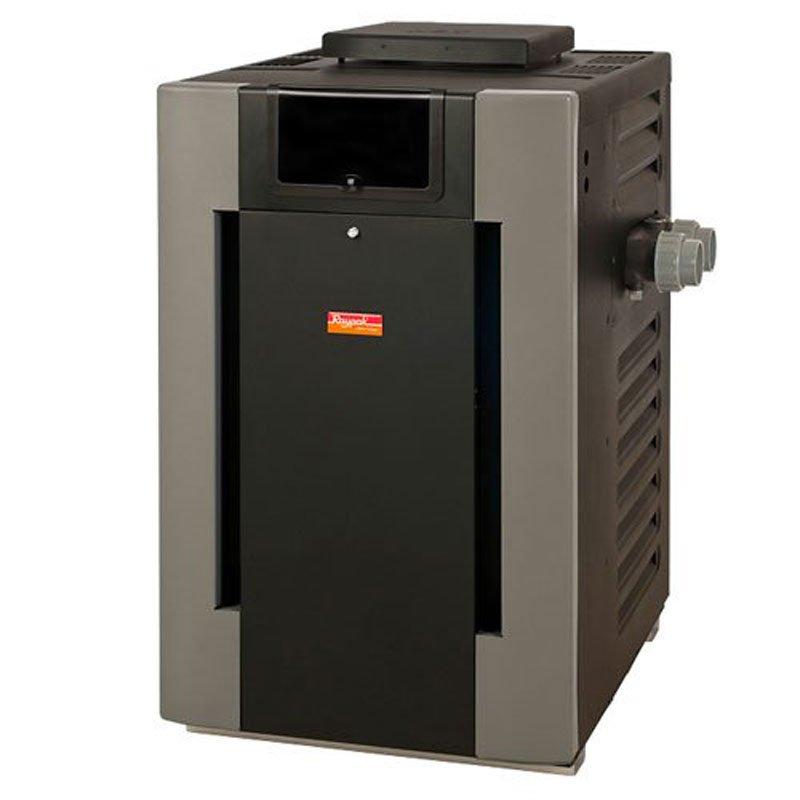

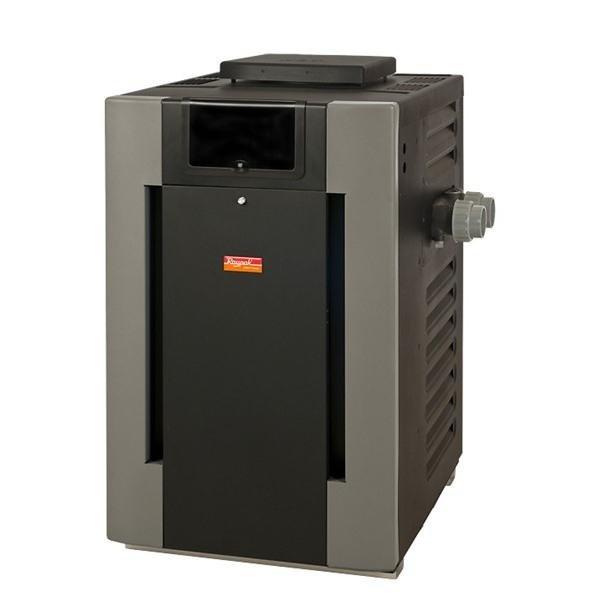

Raypak - Millivolt Natural Gas 266,000 BTU Pool Heater

Item No. 51802
Manufacturer SKU: 009193
4.7 out of 5 Customer Rating
Raypak Millivolt 266,000 BTU Natural Gas Pool Heater, 0-2,000' Elevation, P-R266A-MN-C #50, 009193 More Details

subscription order icon Subscription Available

Price reduced from $2,459.99 to $1,967.99

Usually ships between 1 - 2 weeks

Standard Shipping - Ship To Home
Want it today?



Description

Raypak Millivolt 266,000 BTU Natural Gas Pool Heater, 0-2,000' Elevation, P-R266A-MN-C #50, 009193
  • Part Number: 009193
  • Model Number: P-R266A-MN-C
  • High-wind resistance
  • Corrosion-resistant headers
  • PVC plumbing directly to the heater
  • Small footprint
  • Unitherm governor prevents condensation
  • Completely field serviceable
  • Non-stop performance
  • Model Number: P-R266A-MN-C #50
  • 0-2,000' Elevation

Details

Raypak Millivolt heaters are standing pilot gas heaters with a mechanical thermostat and Polymer headers. These heaters are designed for residential application and combine durability and smart design to be some of the best on the market. Their attributes include exceeding federal and state fuel efficiency standards, high flow rates, condensation protection and wind-resistant design to withstand the elements for years to come.

Highlights

Mechanical Thermostat
The Raypak Millivolt gas heater comes with one mechanical thermostat. This control allows you to set your swimming pool or spa temperature precisely at your favorite setting.
Built-in Wind Resistant Design
The Raypak Millivolt has the best outdoor design in the market today. No need for fans to combat drafting problems, the Raypak Millivolt was designed for outdoor installations with its exclusive low profile design. It is so thoughtfully and carefully designed it actually protects itself from the things that tend to stifle ordinary pool and spa heaters: falling leaves, wind, airborne debris, rain, downdrafts, updrafts, sleet, snow, etc.
Smart Design
One look will tell you that the Raypak Millivolt is different. The look is contemporary; the design is advanced, and inside and out it's engineered to last. The attractive forest green and charcoal gray panels complement the latest pool and spa equipment designs. Raypak's original "pagoda top" design will keep the heater operating even in extreme wind conditions and downdrafts.
Copper Heat Exchanger
All Raypak Millivolt gas heaters come standard withintegral copper finned tube. This means that the fin tubing is made from one piece of extruded copper tube. Since the fins are integral to the tube, maximum heat transfer is attained. Every Raypak Millivolt has the same robust design tube bundle that we use in our large gas commercial boilers.

Specs

Installation Type: Residential
Ignition: Millivolt
Elevation: 0 - 2,000 ft
Product Type: Pool Heater
Emission: Standard
Heat Exchanger: Copper
Pool Type: In Ground
Fuel Type: Natural Gas
Controls: Analog
Heat Output: 266,000 BTU
Manufacturer: Raypak
Warranty: 1-Year
Model Number: P-R266A-MN-C


Warranty

One (1) Year Limited Warranty on Product, see Owner's Manual for a full description of warranty claims and coverage details.
