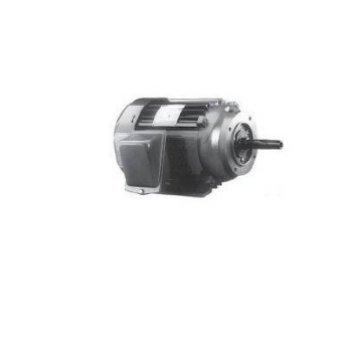

Century A.O. Smith - Industrial 182JM Horizontal 3HP Three Phase Close-Coupled Pump Motor, 200-230/460V
$425.99
The Century Industrial Close-Coupled Pump Motor is engineered for a corona-free, 9-lead design with 60Hz and runs at 1HP-25HP.
More Details
Membership Available
The Century Industrial Close-Coupled Pump Motor is engineered for a corona-free, 9-lead design with 60Hz and runs at 1HP-25HP.
- Ball Bearings
- Class B or F Insulation
- Oversize, Locked Shaft End Bearing
- Frame Suffix Letters JM and JP Designate NEMA Standard Motors
- Frame Suffix TCZ Designates Century West Coast Pump Standard Motors
- 60 Hertz, 9.0-8.0/4.0A
- 40C Ambient
- External Slinger
- Note: Formally known under part number N232
The Century Industrial Close-Coupled Pump Motor is engineered with 60Hz and runs at 1HP-25HP. Available in JM, JP, and TCZ frames, the Century Industrial Motor is Three Phase and sports ventilation openings that prevent water damage. This motor has a 1.15 service factor to protect against overloading. It is built with both an oversized, locked shaft end bearing and ball bearings for long lasting use, with both an external slinger and a 40C Ambient. The Century Industrial Close-Coupled Motor is Class B or Class F insulated, keeping cool at all times to avoid overheating. It is available with 3600RPM and 1800RPM.
Three Phase wiring runs steady and even for dependable performance and provides constant power without requiring a starting capacitor
The different frame types include: C, J, Y, Z, JM, JP, or TCZ. These letters are combined with numbers to define standard specifications including the way the motor mounts onto the pump, its shaft height, and diameter
This motor is designed with standard efficiency, running at a single speed for consistent and reliable operation
| Service Factor: | 1.00 - 1.25 |
| Horsepower: | 3 HP |
| Phase Type: | Three Phase |
| Speed Settings: | Single Speed |
| Voltage: | 200 - 230V / 460V |
| Installation Type: | Industrial |
| Motor Frame: | 182-254 Frame |
| Product Type: | Pool Motor |
| Energy Efficiency: | Standard |
| Manufacturer: | Century A.O. Smith |
| Warranty: | 1-Year |
One Year Warranty from Installation or Two Year Warranty from Manufacture Date, see Owner's Manual for a full description of warranty claims and coverage details.
