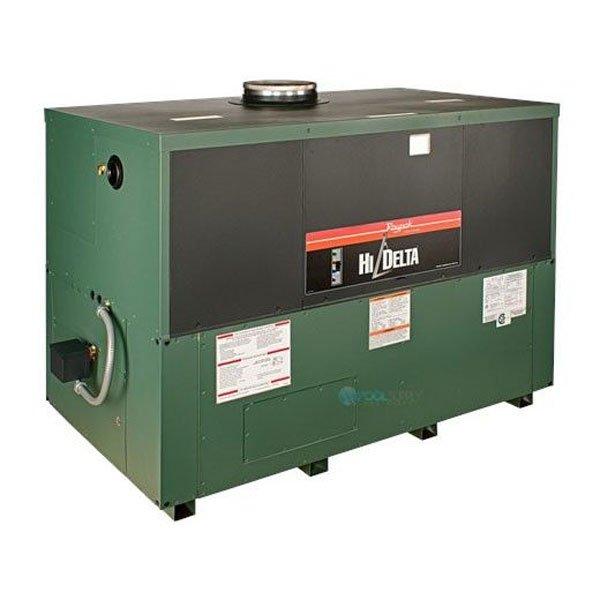

Raypak - Hi Delta P2002C Cold Run Natural Gas Low NOX Commercial Pool Heater

Raypak  Hi Delta P2002C Cold Run Natural Gas Low NOX Commercial Pool Heater
Raypak  Hi Delta P2002C Cold Run Natural Gas Low NOX Commercial Pool Heater
Raypak  Hi Delta P2002C Cold Run Natural Gas Low NOX Commercial Pool Heater
Hi Delta P2002C Cold Run Natural Gas Low NOX Commercial Pool Heater
Hi Delta P2002C Cold Run Natural Gas Low NOX Commercial Pool Heater
Hi Delta P2002C Cold Run Natural Gas Low NOX Commercial Pool Heater

Raypak - Hi Delta P2002C Cold Run Natural Gas Low NOX Commercial Pool Heater

Item No. 960879
Manufacturer SKU: 016092
3.8 out of 5 Customer Rating
The flexible controls of the Raypak Hi Delta P2002C Cold Run Natural Gas Low NOX Commercial Pool Heater provides user friendly diagnostics and solid performance! More Details

subscription order icon Subscription Available

$83,555.99

Standard Shipping - Ship To Home
Want it today?

Description

The flexible controls of the Raypak Hi Delta P2002C Cold Run Natural Gas Low NOX Commercial Pool Heater provides user friendly diagnostics and solid performance!
  • Certified to the ANSI Z21.5
  • Fan Assisted Combustion
  • Multiple vertical venting and sidewall venting options.
  • 105F minimum inlet water temperature
  • Patented burner "security blanket" enhances staged combustion, minimizes installation/start-up issues, and protects burners from metal fatigue.
  • Status display lights
  • Cascade control of up to 4 units, no external sequencer required
  • Cold Water Run
  • Model Number: P2002C

Details

Cold Water Start


It is commonly known that prolonged internal condensation will dramatically shorten the life of standard boilers and water heaters. While Raypak boilers and water heaters can operate without harmful condensation at lower inlet water temperatures than the competition, there are still applications that require reliable protection against harmful condensation caused by frequent, extended, cold water startups. Raypak's Cold Water Start protection system is only used with closed-loop heating systems and utilizes a proportional three-way valve to bypass water from the boiler outlet to the inlet during start-up, when the system return water temperature is below the minimum acceptable level.


Cold Water Run


For the same reason stated for Cold Water Starts, it is even more important to provide protection against condensation from cold inlet water on systems where the return water temperature to the boiler will always be below the acceptable minimum. Raypak's Cold Water Run system can be used on boilers, water heaters or pool heaters, and utilizes a variable-speed pump to inject just the right amount of water from the main system loop into the boiler to maintain the optimum inlet temperature. This approach allows the full capacity of the boiler to be utilized to meet the system load, while at the same time continuously maintaining the optimum inlet water temperature to prevent condensation.


VERSA IC Boiler Control and On-Board Diagnostic Center


VERSA IC merges safety, ignition, temperature control, multi-unit cascade outdoor reset, and freeze protection. Plus system monitoring, diagnostics, and BMS transmission all in one Integrated Control Platform. Easy front access to read, set up and trouble shoot on a 3.5" LCD screen. The entire package is CSA certified, and listed for each individual function.


Specs

Manufacturer: Raypak
Product Type: Pool Heater
Full Input BTUH: 1,999,000
Indoor Stack Diameter: 14 inches
H-Style Bypass: STD
CWR: Yes
Gas Type: Natural Gas
Elevation: 0-5000 ft
Ignition: Electronic
BTU Rating: 1990K
Location: Indoor/Outdoor
