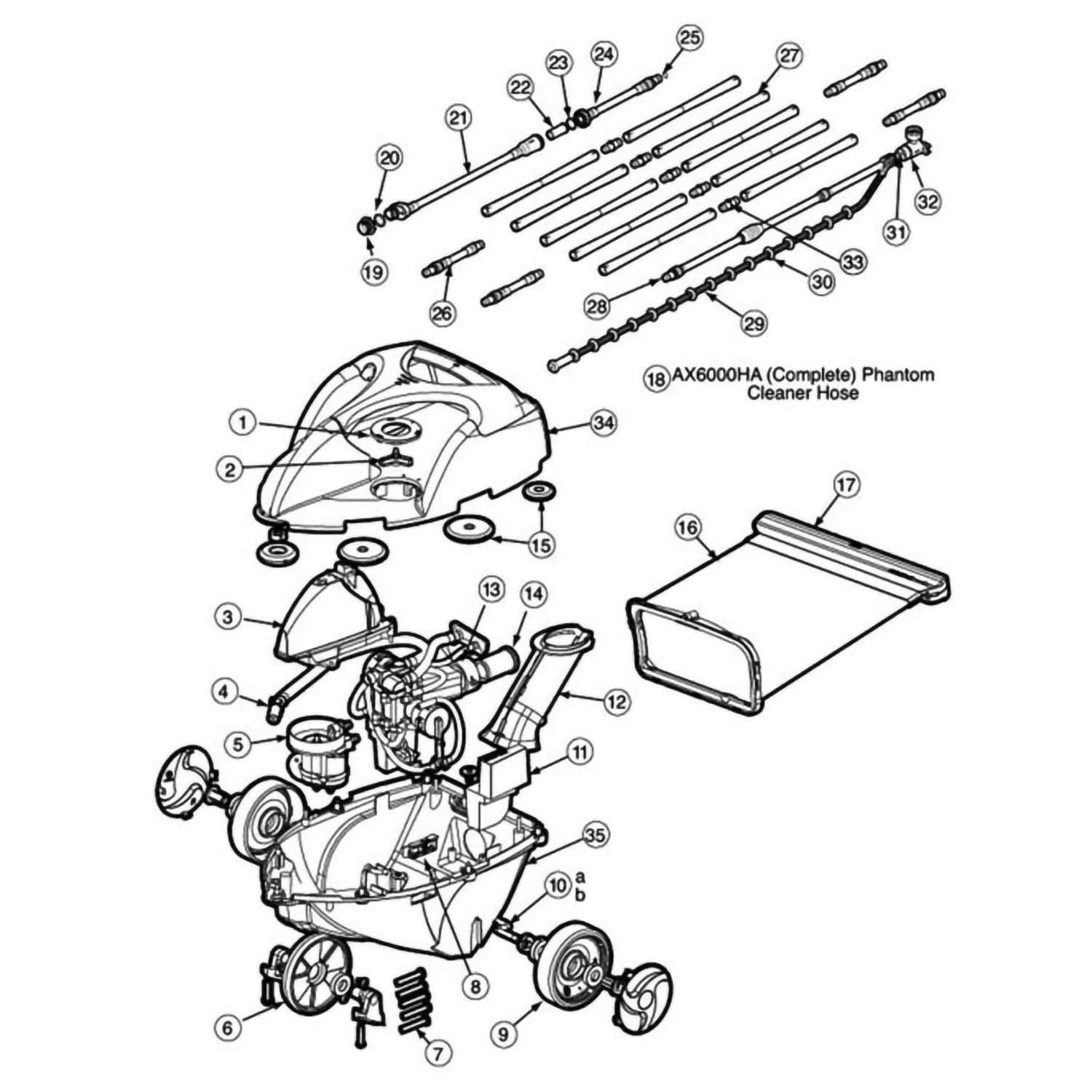

Hayward Phantom & Phantom Turbo Part Schematic

Part Selector:

Hayward Phantom & Phantom Turbo Part Schematic
(Click to view larger)

Parts:

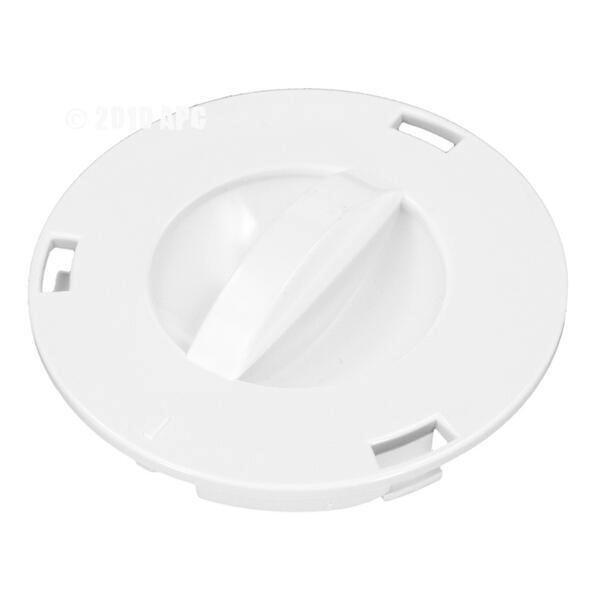

#1 Hayward - Cam Cap, Phantom
Hayward - Cam Cap, Phantom
SKU: 58159
Details: CAM CAP, PHANTOM
Availability: In Stock
$18.99

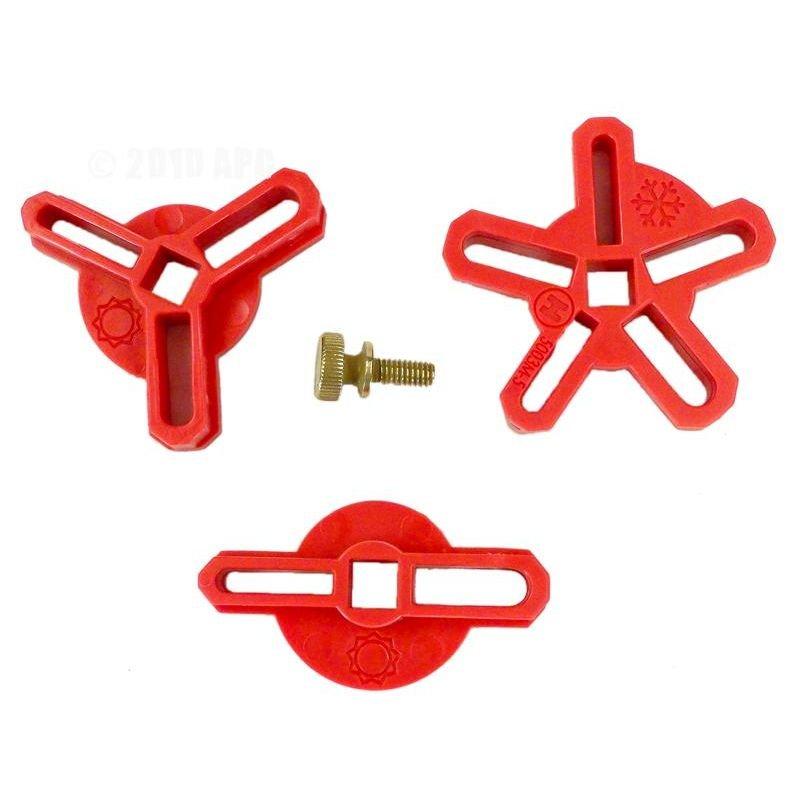

#2 Hayward - Pool Cleaner Cams (3 pack)
Hayward - Pool Cleaner Cams (3 pack)
SKU: 58102
Details: Hayward Pool Cleaner Cams (3 pack) - AX5003M
Availability: In Stock
$18.99

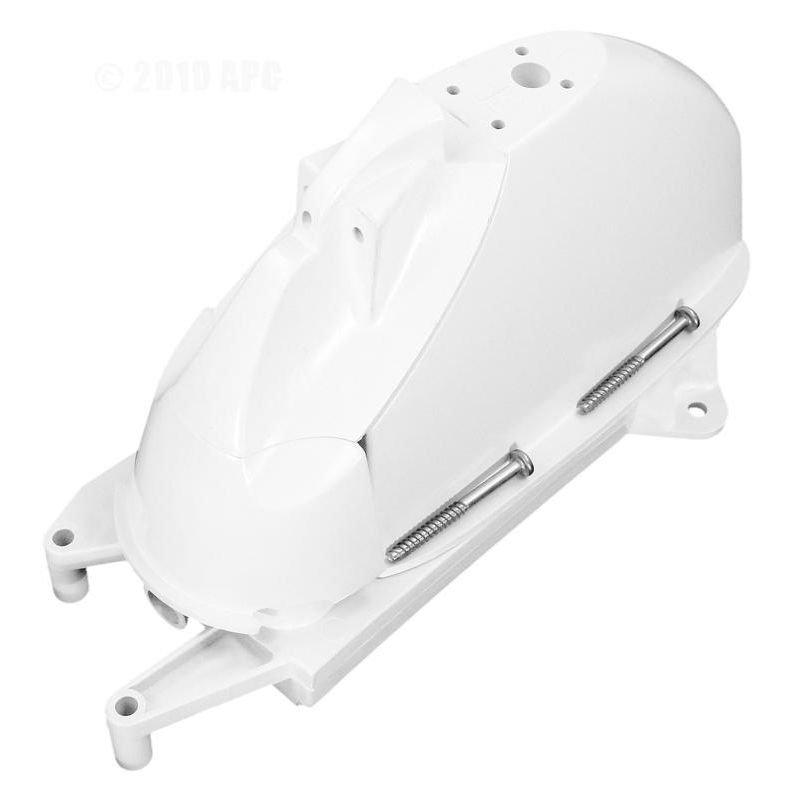

#3 Hayward - Nose Jet Tank
Hayward - Nose Jet Tank
SKU: 58152
Details: NOSE JET TANK
Availability: In Stock
$84.99

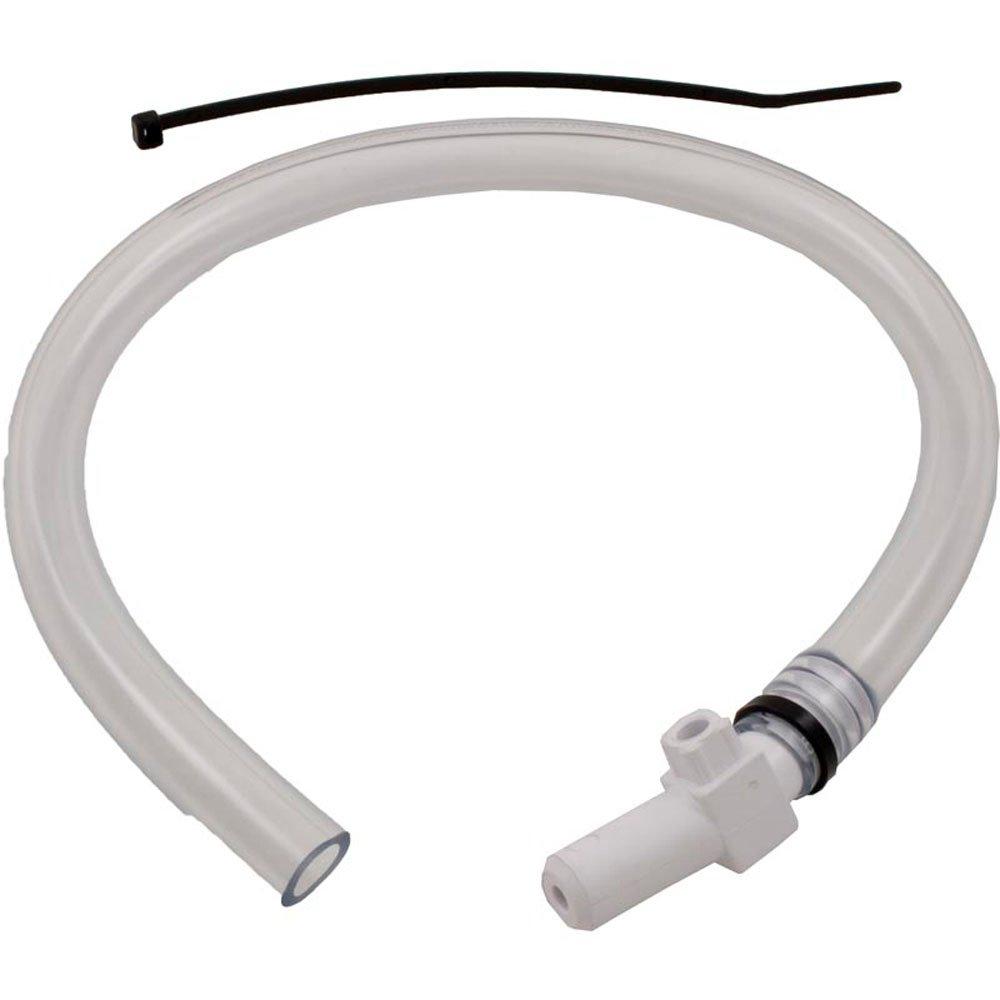

#4 Hayward - Front Spin-Out Jet with Hose and Tie
Hayward - Front Spin-Out Jet with Hose and Tie
SKU: 58149
Details: FRONT SPIN-OUT JET W/ HOSE & TIE
Availability: In Stock
$24.99

#5 Hayward - Gear Box, Phantom
Hayward - Gear Box, Phantom
SKU: 58145
Details: GEAR BOX, PHANTOM
Availability: In Stock
$51.99

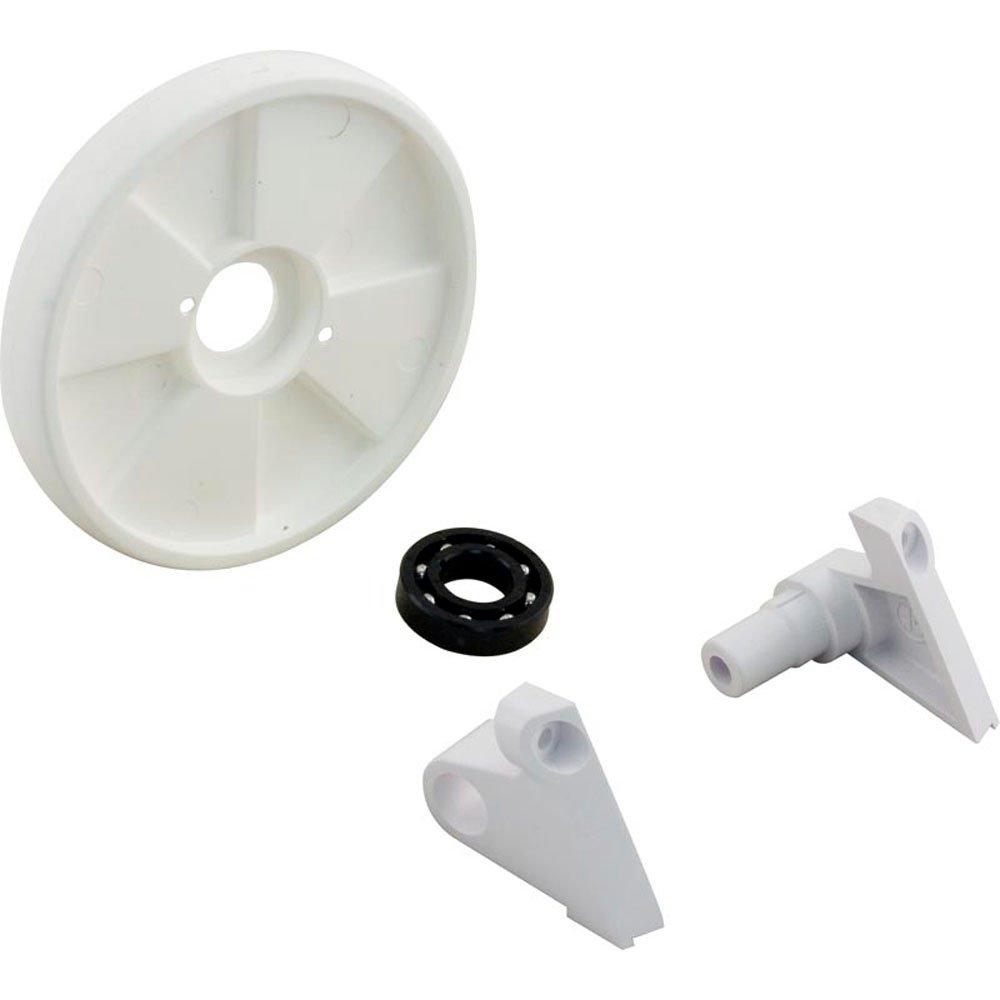

#6 Hayward - Pool Cleaner Front Wheel Kit with Retainer and Bearing
Hayward - Pool Cleaner Front Wheel Kit with Retainer and Bearing
SKU: 58157
Details: Hayward Pool Cleaner Front Wheel Kit with Retainer and Bearing - AX6009BF
Availability: In Stock
$33.99

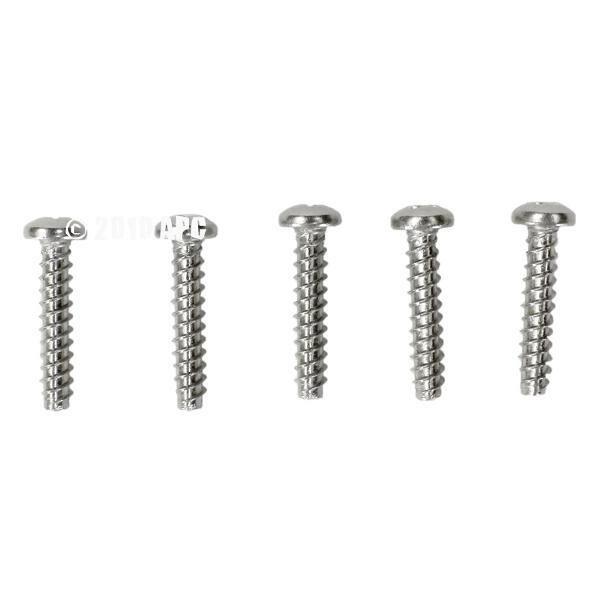

#7 Hayward - Pool Cleaner Screws (5 pack)
Hayward - Pool Cleaner Screws (5 pack)
SKU: 58104
Details: Hayward Pool Cleaner Screws (5 pack) - AX5010D4
Availability: In Stock
$8.99

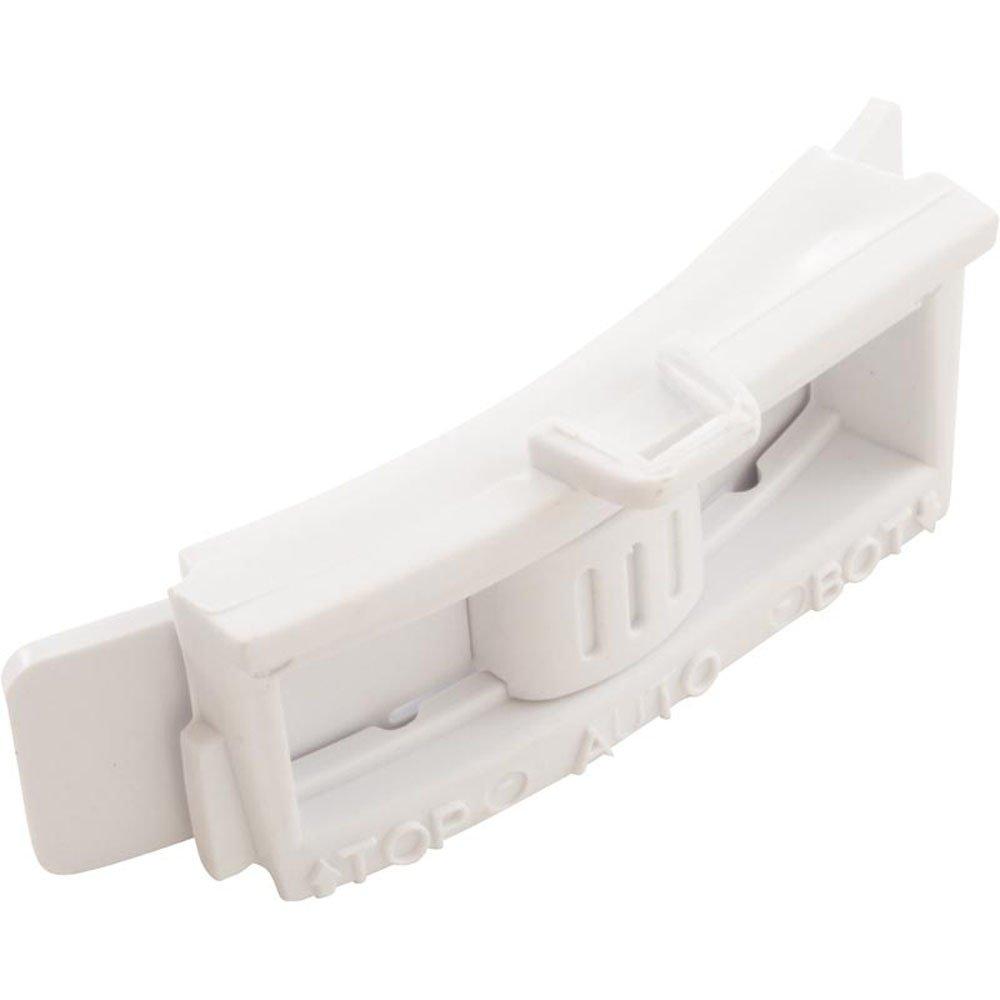

#8 Hayward - Top / Auto / Bot Switch
Hayward - Top / Auto / Bot Switch
SKU: 58156
Details: TOP / AUTO / BOT SWITCH
Availability: In Stock
$25.99

#9
Hayward - Rear Wheels with Bearings Nuts and Hubcaps
Hayward - Rear Wheels with Bearings Nuts and Hubcaps
SKU: 58158
Details: REAR WHEELS W/BEARINGS NUTS & HUBCAPS
Availability: This item is currently not available
$89.99
Out of Stock

#10 Hayward - Pool Cleaner One Piece Rear Axle (Prior to 6/2006)
Hayward - Pool Cleaner One Piece Rear Axle (Prior to 6/2006)
SKU: 58111
Details: Hayward Pool Cleaner One Piece Rear Axle (Prior to 6/2006) - AX5009E
Availability: In Stock
$21.99

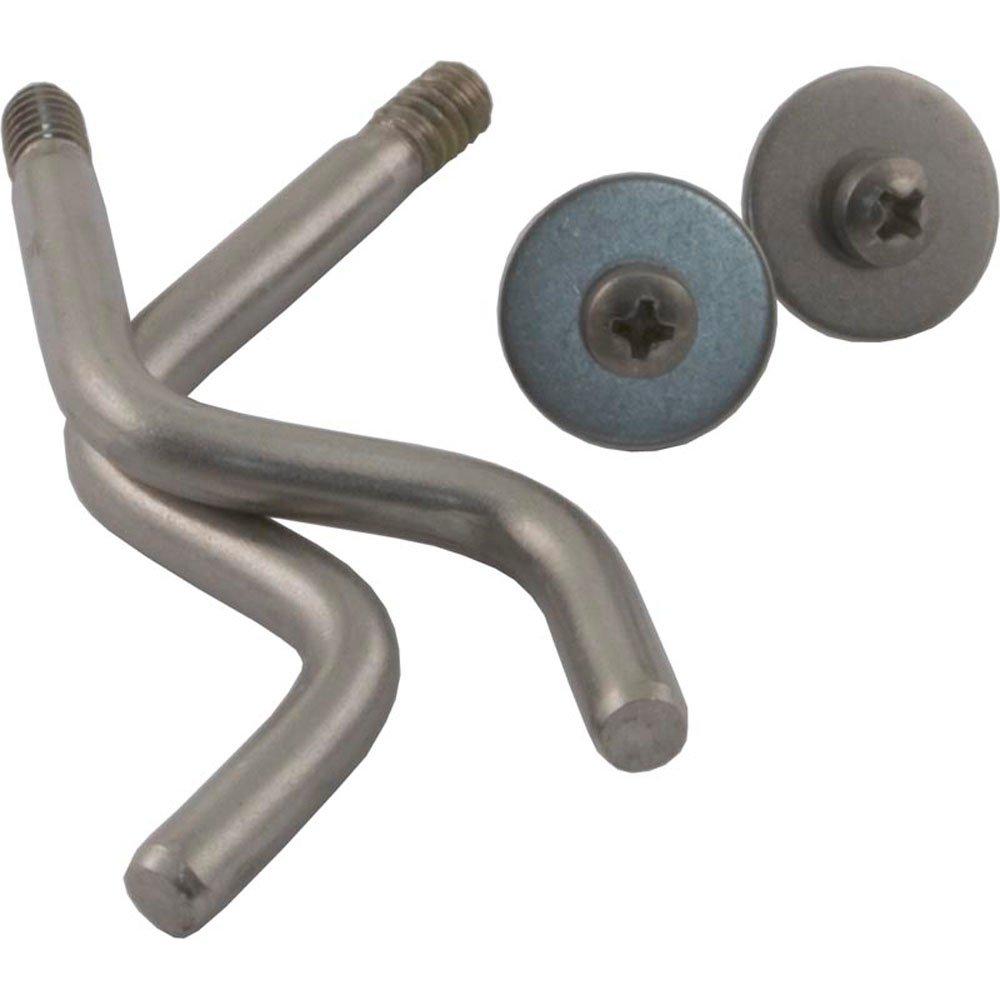

#10 Hayward - Pool Cleaner Split Rear Axle (After to 6/2006)
Hayward - Pool Cleaner Split Rear Axle (After to 6/2006)
SKU: 448696
Details: Hayward Pool Cleaner Split Rear Axle (After to 6/2006) - AX5009E1
Availability: In Stock
$32.99

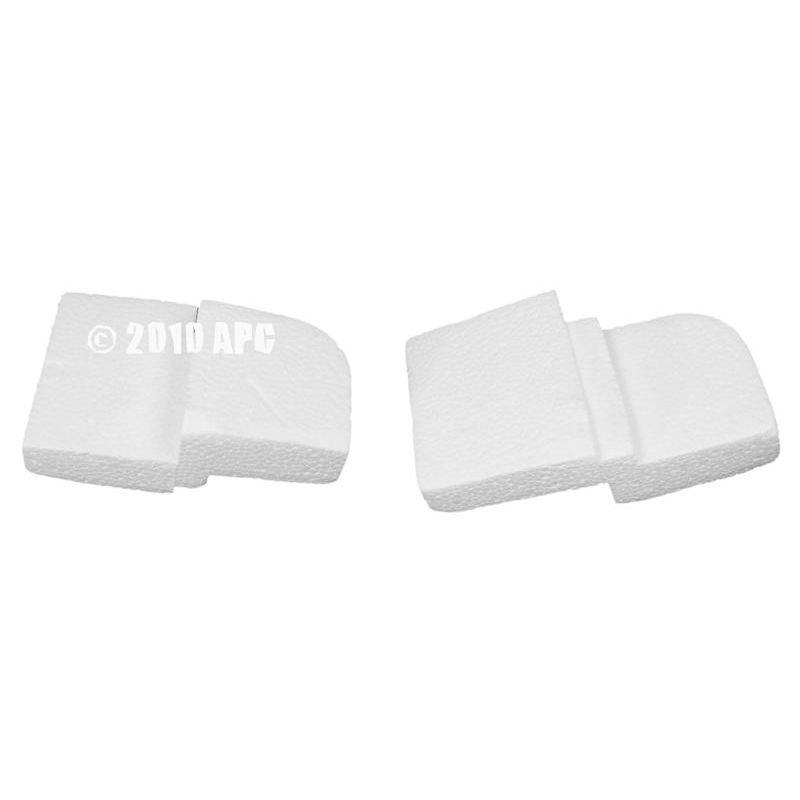

#11
Hayward - Floats, Left and Right
Hayward - Floats, Left and Right
SKU: 58153
Details: FLOATS, LEFT & RIGHT
Availability: This item is currently not available
$15.99
Out of Stock

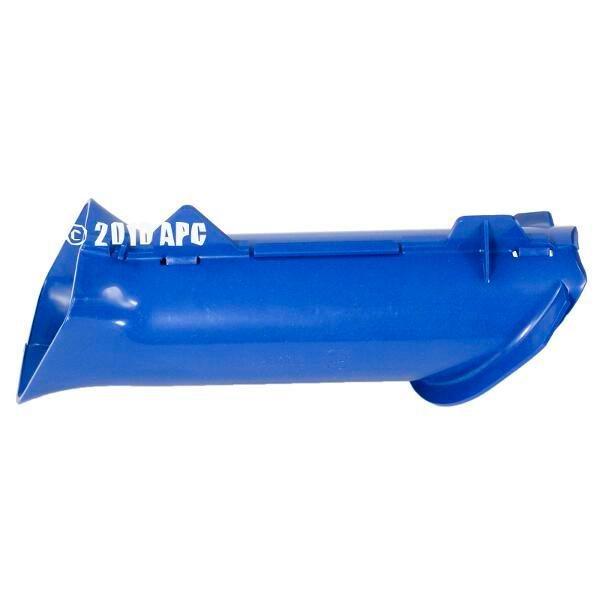

#12 Hayward - Pool Cleaner Vac Tube
Hayward - Pool Cleaner Vac Tube
SKU: 58109
Details: Hayward Pool Cleaner Vac Tube - AX5000B
Availability: In Stock
$14.99

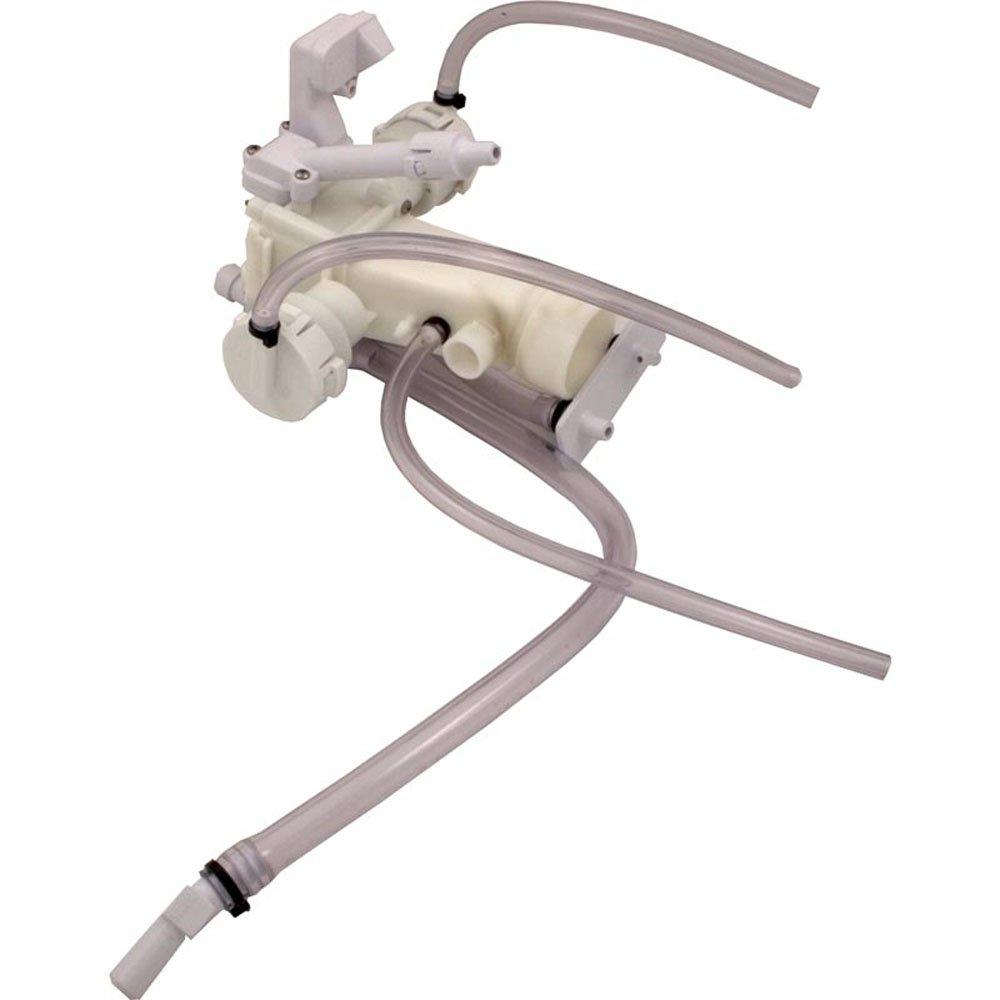

#13 Hayward - Manifold Kit-Phantom, Black
Hayward - Manifold Kit-Phantom, Black
SKU: 58146
Details: MANIFOLD KIT-PHANTOM, BLACK
Availability: In Stock
$239.99

#14 Hayward - Manifold Filter Screen
Hayward - Manifold Filter Screen
SKU: 58133
Details: MANIFOLD FILTER SCREEN
Availability: In Stock
$27.99

#15 Hayward - Pool Cleaner Soft Rollers with Bearings (7 pack)
Hayward - Pool Cleaner Soft Rollers with Bearings (7 pack)
SKU: 58106
Details: Hayward Pool Cleaner Soft Rollers with Bearings (7 pack) - AX6000D
Availability: In Stock
$37.99

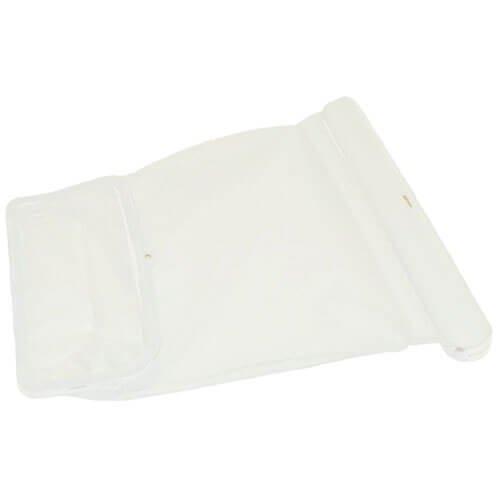

#16 Hayward - Debris Bag with Float, Black Phantom
Hayward - Debris Bag with Float, Black Phantom
SKU: 58132
Details: DEBRIS BAG W/ FLOAT, BLACK PHANTOM
Availability: In Stock
$69.99

#17 Hayward - Pool Cleaner Bag Closure with Float
Hayward - Pool Cleaner Bag Closure with Float
SKU: 58128
Details: Hayward Pool Cleaner Bag Closure with Float - AX6000FC
Availability: In Stock
$22.99

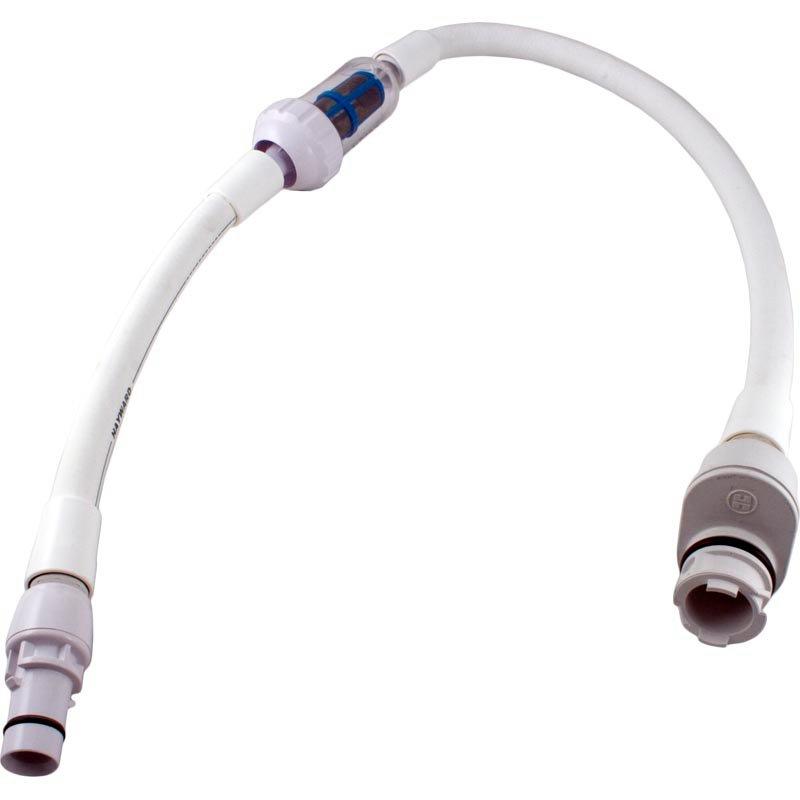

#18 Hayward - Pressure Hose Complete (Retrofit)
Hayward - Pressure Hose Complete (Retrofit)
SKU: 58099
Details: PRESSURE HOSE COMPLETE (RETROFIT)
Availability: In Stock
$579.99

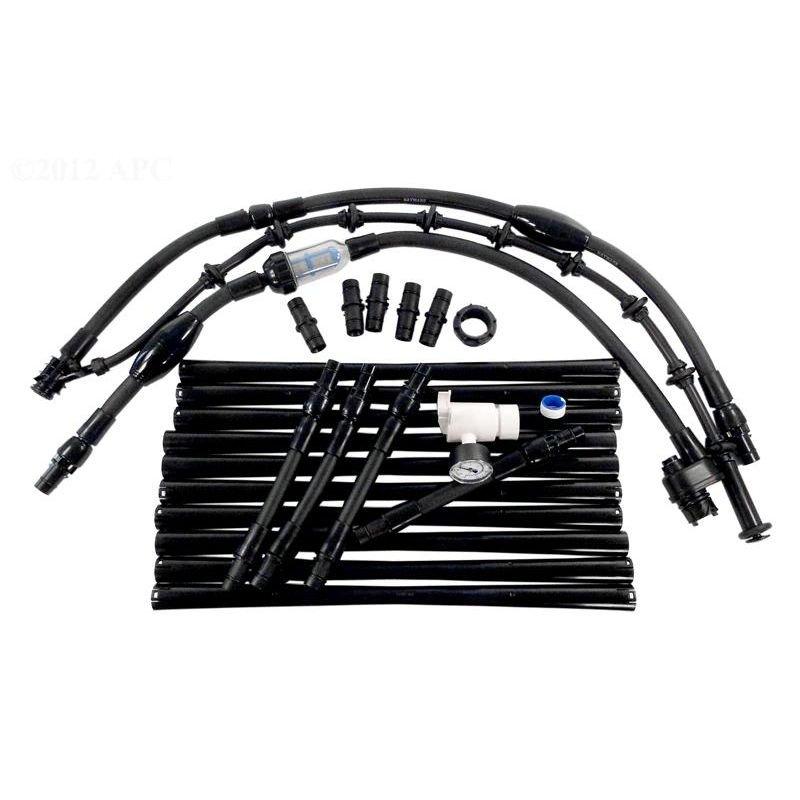

#18
Hayward - Black rigid hose, complete
Hayward - Black rigid hose, complete
SKU: 628182
Availability: This item is currently not available
$429.99
Out of Stock

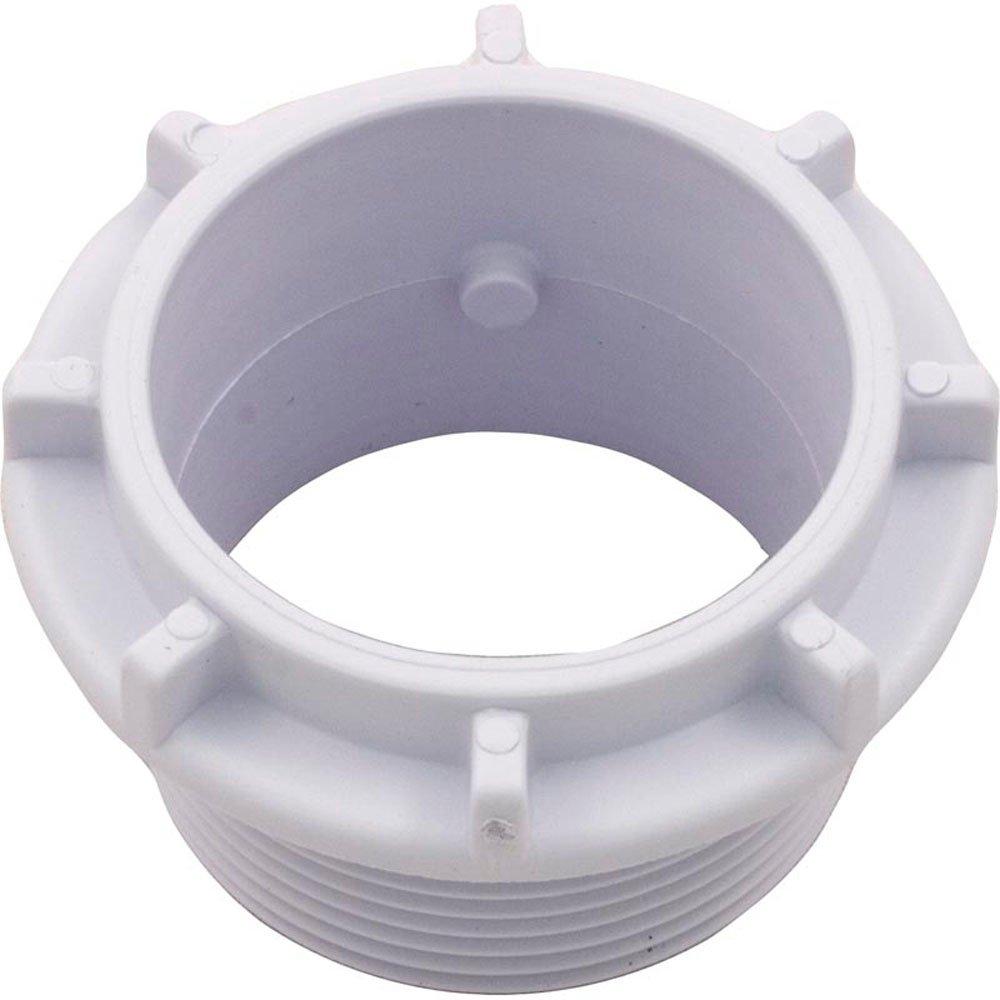

#19 Hayward - Pool Cleaner Universal Wall Fitting
Hayward - Pool Cleaner Universal Wall Fitting
SKU: 58124
Details: Hayward Pool Cleaner Universal Wall Fitting - AX5004L1
Availability: In Stock
$8.99

#20 Hayward - Pool Cleaner Wall Quick Connect O-Ring
Hayward - Pool Cleaner Wall Quick Connect O-Ring
SKU: 58142
Details: Hayward Pool Cleaner Wall Quick Connect O-Ring - AX5010G10
Availability: In Stock
$4.99

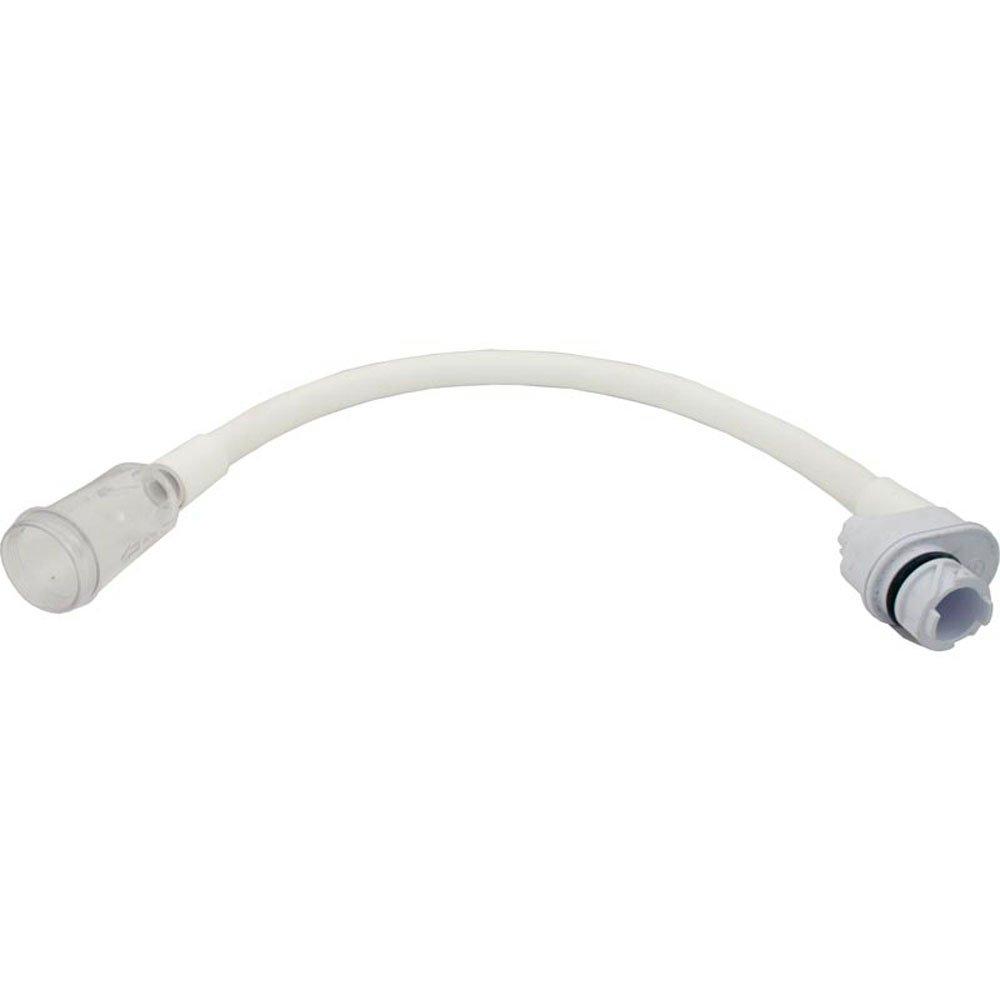

#21 Hayward - Wall Quick Connect, Hose, In-Line Filter Assembly
Hayward - Wall Quick Connect, Hose, In-Line Filter Assembly
SKU: 58140
Details: WALL QUICK CONNECT, HOSE, IN-LINE FILTER ASS'Y
Availability: In Stock
$119.99

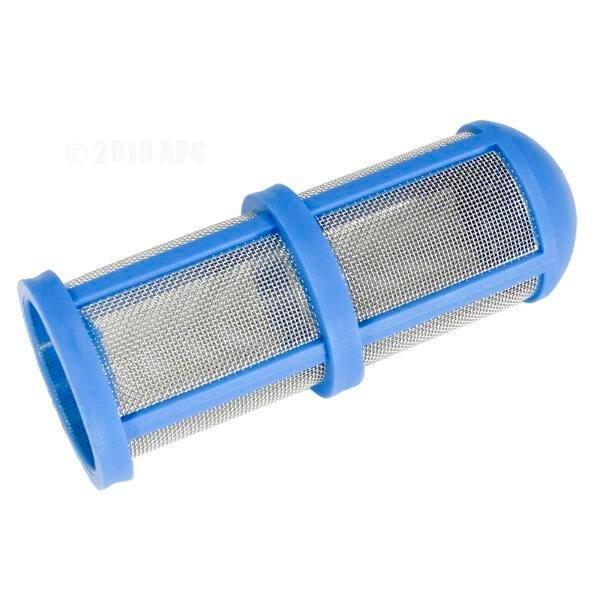

#22
Hayward - Pool Cleaner In-Line Filter Screen
Hayward - Pool Cleaner In-Line Filter Screen
SKU: 58136
Details: Hayward Pool Cleaner In-Line Filter Screen - AX6009S
Availability: This item is currently not available
$17.99
Out of Stock

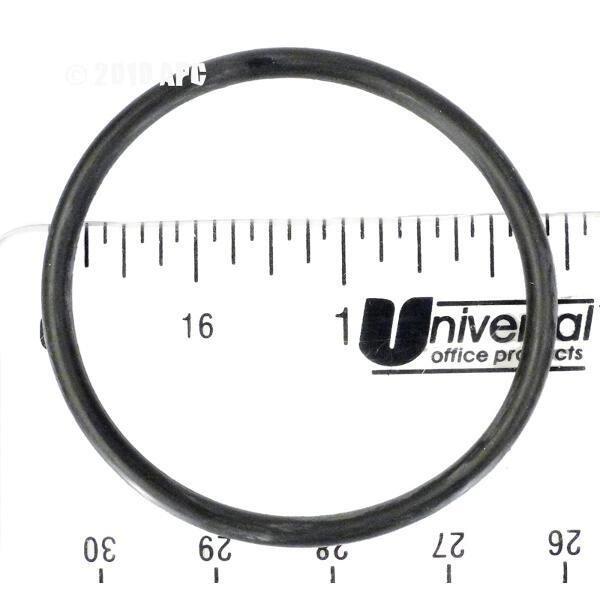

#23 Hayward - Pool Cleaner In-Line Filter O-Ring
Hayward - Pool Cleaner In-Line Filter O-Ring
SKU: 58144
Details: Hayward Pool Cleaner In-Line Filter O-Ring - AX5010G19
Availability: In Stock
$8.99

#25 Hayward - O-Ring, Pipe Connector 3-Pack
Hayward - O-Ring, Pipe Connector 3-Pack
SKU: 58137
Details: O-RING, PIPE CONNECTOR 3-PACK
Availability: In Stock
$11.99

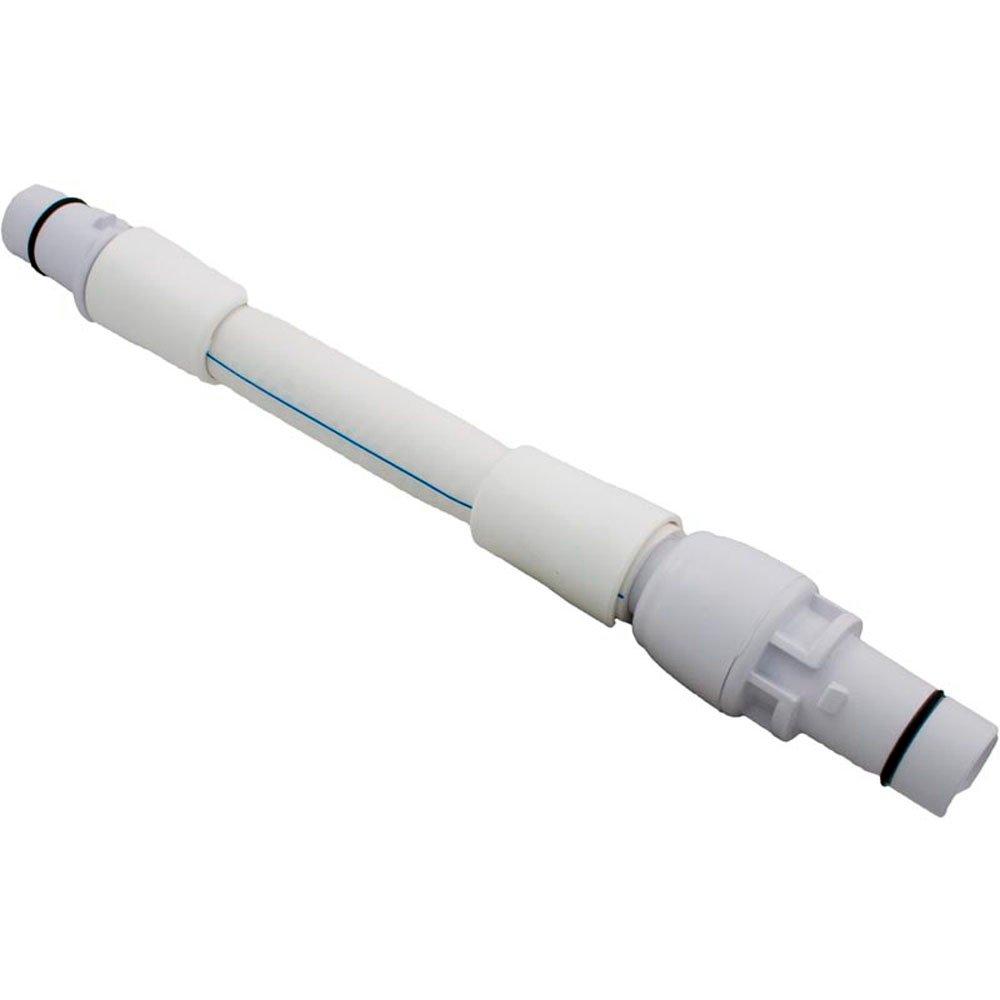

#26 Hayward - Hose Swivel Assembly
Hayward - Hose Swivel Assembly
SKU: 58138
Details: HOSE SWIVEL ASS'Y
Availability: In Stock
$54.99

#27 Hayward - Hose Pipe Section, 2 Rigid Pipes and 1 Coupling
Hayward - Hose Pipe Section, 2 Rigid Pipes and 1 Coupling
SKU: 58134
Details: HOSE PIPE SECTION, 2 RIGID PIPES & 1 COUPLING
Availability: In Stock
$65.99

#28

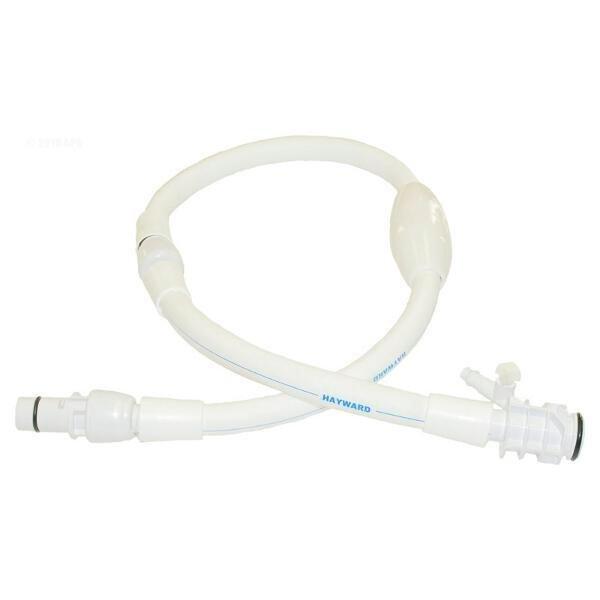

Hayward - Pressure Hose Cleaner End Assembly with O Sweep Hose
Hayward - Pressure Hose Cleaner End Assembly with O Sweep Hose
SKU: 58141
Details: PRESSURE HOSE CLEANER END ASS'Y W/O SWEEP HOSE
Availability: This item is currently not available
$143.99
Out of Stock

#29 Hayward - Pool Cleaner Sweep Hose with Roller and Hose Nut, White
Hayward - Pool Cleaner Sweep Hose with Roller and Hose Nut, White
SKU: 58120
Details: Hayward Pool Cleaner Sweep Hose with Roller and Hose Nut - White - AX5000RSHA
Availability: In Stock
$99.99

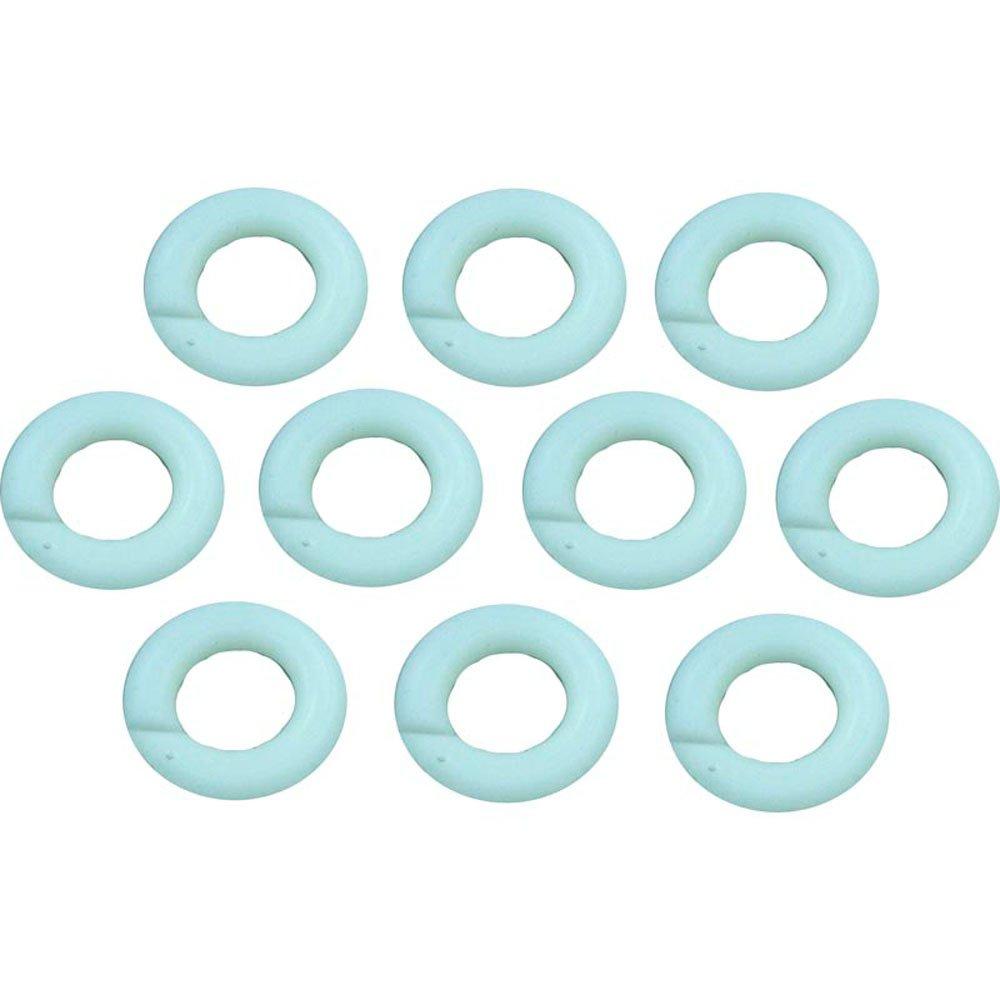

#30 Hayward - Pool Cleaner Wear Rollers (10 pack)
Hayward - Pool Cleaner Wear Rollers (10 pack)
SKU: 58127
Details: Hayward Pool Cleaner Wear Rollers (10 pack) - AX5006A
Availability: In Stock
$22.99

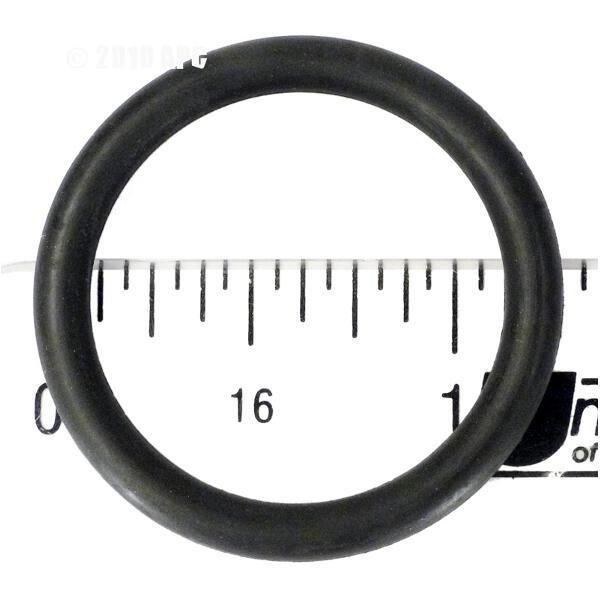

#31 Hayward - Pool Cleaner Connector O-Ring
Hayward - Pool Cleaner Connector O-Ring
SKU: 58143
Details: Hayward Pool Cleaner Connector O-Ring - AX5010G18
Availability: In Stock
$8.99

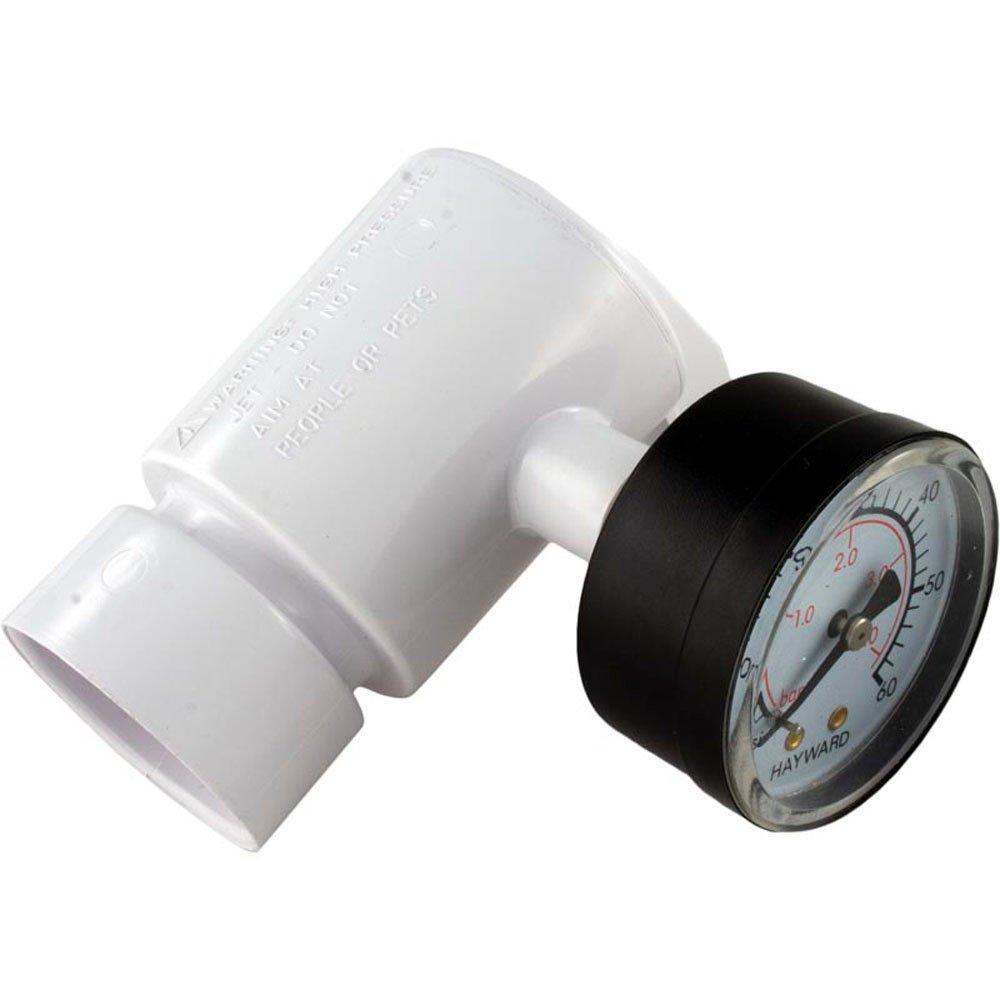

#32
Hayward - Pool Cleaner Pressure Tester Gauge Assembly
Hayward - Pool Cleaner Pressure Tester Gauge Assembly
SKU: 58121
Details: Hayward Pool Cleaner Pressure Tester Gauge Assembly - AX6000PTA
Availability: This item is currently not available
$79.99
Out of Stock

#34 Hayward - Deck with Wing and Cam Cap, Phantom
Hayward - Deck with Wing and Cam Cap, Phantom
SKU: 58147
Details: DECK W/ WING & CAM CAP, PHANTOM
Availability: In Stock
$229.99

#35 Hayward - Bottom Housing
Hayward - Bottom Housing
SKU: 58150
Details: BOTTOM HOUSING
Availability: In Stock
$339.99

#0 Hayward - Medium Turbine Case/Axle Assembly for Pool Vac XL/Navigator Pro
Hayward - Medium Turbine Case/Axle Assembly for Pool Vac XL/Navigator Pro
SKU: 58834
Details: Replacement Medium Turbine Case Assembly for the Hayward Pool Vac XL/Navigator Pro Suction Side Pool Cleaners.
Availability: In Stock
$64.99
