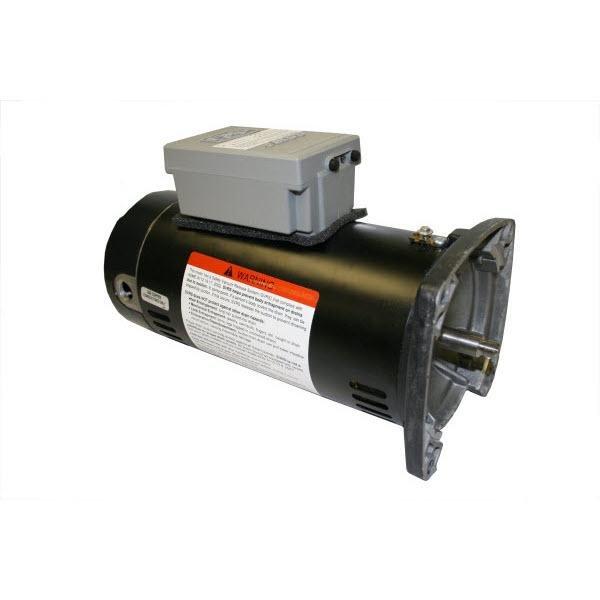

Century A.O. Smith - Guardian 56Y Square Flange 2 HP Single Speed SVRS Pool and Spa Motor, 230V
$659.99
Protect your pump while improving your pool safety with the A.O. Smith Guardian Pool Motor
More Details
Membership Available
Protect your pump while improving your pool safety with the A.O. Smith Guardian Pool Motor
- Easy to install
- Auto-Reset
- Auto-Calibration
- Ball Bearing
- Economical
- 60 Hertz
- Stainless Steel Shaft
- Nerve center (Lighting Sequence)
- Tamper-Resistant Housing
- Compatible with all flow rates
Protect your pump while improving your pool safety with the A.O. Smith Guardian Pool Motor. The Guardian Pool Motor is a single-speed, single phase motor that's economical and easy to install. Its tamper resistant housing and ball bearings make the Guardian Pool Motor reliable and efficient. Complying with the Virginia Graeme Baker Pool and Spa Safety Act, the Guardian Pool Motor is built with a Safety Vacuum Release System designed to automatically shut down when blockage or clogging is detected, providing added protection against entrapment. The Guardian Pool Motor is available in 3/4HP to 3HP and are compatible with all flow rates for strength and versatility.
Single Phase wiring is basic with an alternating current that delivers efficient operation. Little maintenance is required and provides reliable performance
The different frame types include: C, J, Y, Z, JM, JP, or TCZ. These letters are combined with numbers to define standard specifications including the way the motor mounts onto the pump, its shaft height, and diameter
This motor is designed with standard efficiency, running at a single speed for consistent and reliable operation
| Speed Settings: | Single Speed |
| Shaft Type: | Threaded |
| Installation Type: | Residential |
| Pool Type: | Spa/Hot Tub |
| Voltage: | 230V |
| Service Factor: | 1.25 - 1.50 |
| Phase Type: | Single Phase |
| Horsepower: | 2 HP |
| Flange Type: | Square Flange |
| Energy Efficiency: | Standard |
| Motor Frame: | 56 Frame |
| Manufacturer: | Century A.O. Smith |
| Warranty: | 1-Year |
| Product Type: | Pool Motor |
One Year Warranty from Installation or Two Year Warranty from Manufacture Date, see Owner's Manual for a full description of warranty claims and coverage details.
