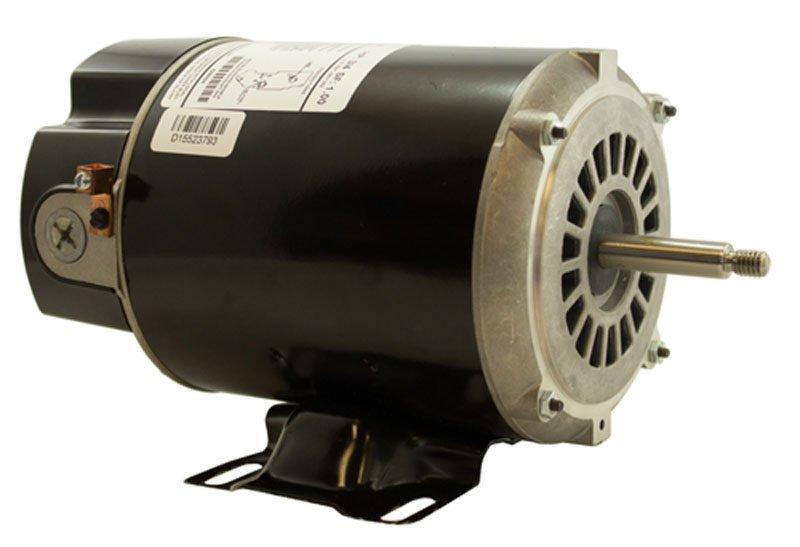

U.S. Motors - Emerson EZBN36 48 Frame Thru-Bolt 2-Speed 3/4 / 1/10 HP Pool and Spa Motor, 115V
$227.99
The EZBN36 Thru Bolt 3/4 / 1/10 HP, 115V Two-Speed Pool and Spa Motor is professionally designed for long lasting use and reliability.
More Details
Membership Available
The EZBN36 Thru Bolt 3/4 / 1/10 HP, 115V Two-Speed Pool and Spa Motor is professionally designed for long lasting use and reliability.
- Class B Insulated
- 50 Degree C Ambient
- 3 O'clock Conduit
- Shaft Threat 3/8-16 UNC 2A RH
- Thermally Protected
- 3 1/2 Shaft Height
- Service Factor: 1
- RPM: 3450/1725
- Length without Shaft: 8.7
- 9.8/3.2A 115V
With sealed ball bearings and a stainless steel shaft, the EZBN36 Thru Bolt Pool and Spa Motor is professionally designed for long lasting use and reliability. Engineered with 3/4 / 1/10 HP and 115V, the Emerson EZBN36 operates consistently at two speeds for ideal regularity, ensuring it reaches its full capacity with its full-rated power level. It sports a 1081 design, with open drip proof modeling to prevent water entrance and damage. The Emerson EZBN36 is easy to install with its thru-bolt mounting and rigid base, offering the best in mechanical replacement equipment.
Featuring basic Single Phase wiring, the Emerson 48 Y-Frame Thru-Bolt motor delivers efficient operation. Little maintenance is required and the Emerson 48 Y-Frame Thru-Bolt is built to last
Advanced in its design, the Emerson 48 Y-Frame Thru-Bolt motor comes with a Y-Frame, indicating a special non-standard mounting configuration
The Emerson 48 Y-Frame Thru-Bolt motor is designed with standard efficiency, promising durability and quality performance while operating at an efficient level just below a premium model
| Voltage: | 115V |
| Pool Type: | Above Ground |
| Flange Type: | Thru Bolt Mount |
| Pool Type: | Spa/Hot Tub |
| Service Factor: | 1.00 - 1.25 |
| Motor Frame: | EZ 48 Frame |
| Energy Efficiency: | Standard |
| Product Type: | Pool Motor |
| Manufacturer: | U.S. Motors Emerson |
| Horsepower: | 3/4 / 1/10 HP |
See Owner's Manual for details
