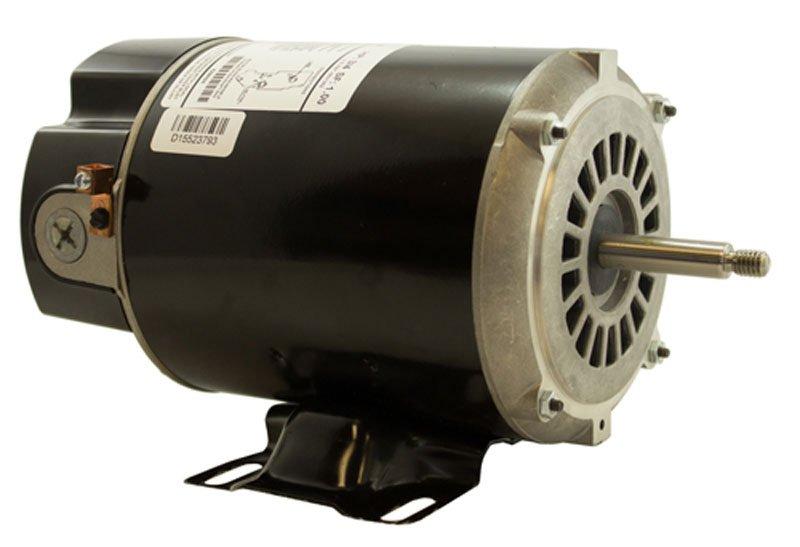

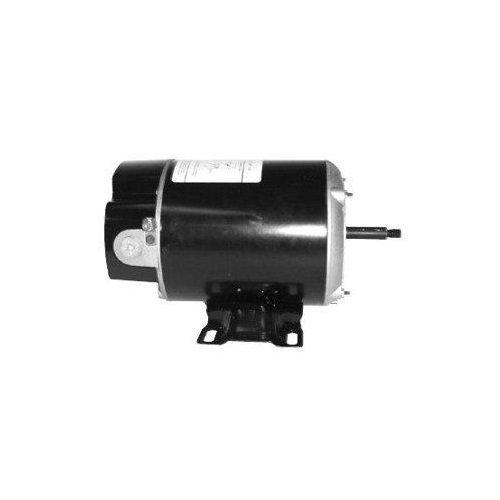

U.S. Motors - Emerson EZ48Y Thru-Bolt Single Speed 3/4HP Full Rated Pool and Spa Motor

Item No. 304830 | Manufacturer SKU: EZBN24
Item No. 304830 | Manufacturer SKU: EZBN24
U.S Motors Emerson EZ48Y Thru-Bolt Single Speed 3/4HP Full Rated Pool and Spa Motor
U.S Motors Emerson EZ48Y Thru-Bolt Single Speed 3/4HP Full Rated Pool and Spa Motor
U.S Motors Emerson EZ48Y Thru-Bolt Single Speed 3/4HP Full Rated Pool and Spa Motor U.S Motors Emerson EZ48Y Thru-Bolt Single Speed 3/4HP Full Rated Pool and Spa Motor
$175.99

The EZ48 Thru Bolt Pool and Spa Motor is professionally designed for long lasting use and reliability. More Details

subscription order icon Membership Available

The EZ48 Thru Bolt Pool and Spa Motor is professionally designed for long lasting use and reliability.
  • Class B Insulated
  • 50 Degree C Ambient
  • 3 O'clock Conduit
  • Shaft Threat 3/8-16 UNC 2A RH
  • Thermally Protected
  • 3 1/2
  • Service Factor: 1
  • RPM: 3450
  • 10A 115V
  • Length without Shaft: 8.7

With sealed ball bearings and a stainless steel shaft, the EZ48 Thru Bolt Pool and Spa Motor is professionally designed for long lasting use and reliability. Engineered with 3/4 HP and 115V, the Emerson EZ48 operates consistently at one speed for ideal regularity, ensuring it reaches its full capacity with its full-rated power level. It sports a 1081 design, with open drip proof modeling to prevent water entrance and damage. The Emerson EZ48 is easy to install with its thru-bolt mounting and rigid base, offering the best in mechanical replacement equipment.

Single Phase
Featuring basic Single Phase wiring, the Emerson 48 Y-Frame Thru-Bolt motor delivers efficient operation. Little maintenance is required and the Emerson 48 Y-Frame Thru-Bolt is built to last
Y-Frame
Advanced in its design, the Emerson 48 Y-Frame Thru-Bolt motor comes with a Y-Frame, indicating a special non-standard mounting configuration
Standard Efficiency
The Emerson 48 Y-Frame Thru-Bolt motor is designed with standard efficiency, promising durability and quality performance while operating at an efficient level just below a premium model

Motor Frame: EZ 48 Frame
Service Factor: 1.00 - 1.25
Voltage: 115V
Flange Type: Thru Bolt Mount
Horsepower: 3/4 HP
Pool Type: Above Ground
Speed Settings: Single Speed
Rating Type: Full-Rated
Energy Efficiency: Standard
Product Type: Pool Motor
Manufacturer: U.S. Motors Emerson
Product Type: Pool Pump
Pump Speed: Single
Service Factor: 1
Total Horsepower: 0.75 THP

See Owner's Manual for details
