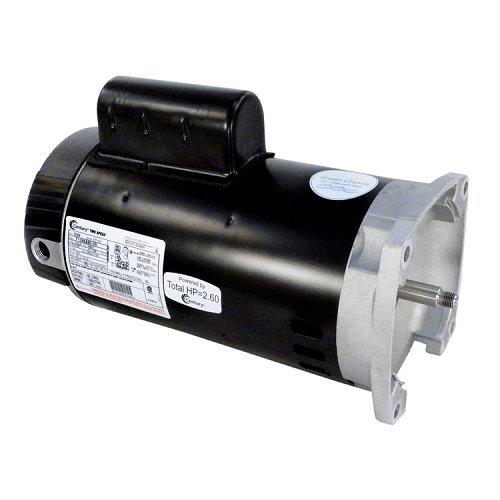

U.S. Motors - Emerson EB2984 Square Flange Dual Speed 2HP Full Rated 56Y Pump Motor

U.S Motors Emerson EB2984 Square Flange Dual Speed 2HP Full Rated 56Y Pump Motor

U.S. Motors - Emerson EB2984 Square Flange Dual Speed 2HP Full Rated 56Y Pump Motor

Item No. 38635
Manufacturer SKU: ASB2984
4.6 out of 5 Customer Rating
U.S. Motors Emerson EB2984 Square Flange Dual Speed 2HP Full Rated 56Y Pump Motor is a powerfully designed motor for your pool or spa. More Details

subscription order icon Subscription Available

$384.99

Standard Shipping - Ship To Home
Want it today?

Description

U.S. Motors Emerson EB2984 Square Flange Dual Speed 2HP Full Rated 56Y Pump Motor is a powerfully designed motor for your pool or spa.
  • Two Compartment
  • Shaft Threads 1/2-20 UNF 2A
  • 50 Degree C Ambient
  • 1081 Design
  • Continuous Duty
  • Class B Insulated
  • 303 Stainless Steel Shaft
  • 10.6/2.4A 230V

Details

The U.S. Motors Emerson EB2984 Motor is a quality replacement motor for your pool or spa. Its open drip-proof design prevents water damage with strategically placed ventilation openings. It sports a switchless design for higher efficiency, and it has been engineered with both sealed ball bearings and triple bearing protection for longevity. It is thermally protected to prevent overheating and comes with a stainless steel shaft for durability. The Emerson 56 Y-Frame Motor runs at dual speed with both 2HP and 1/3HP and 230V.

Please Note: When replacing the motor on the pump, replacing the mechanical pump seal is required to ensure proper installation. Pump seal size varies depending on the pump and not the motor.

Highlights

Single Phase
Featuring basic Single Phase wiring, the Emerson 56 Y-Frame Motor delivers efficient operation. Little maintenance is required and it is built to last
Y-Frame
Advanced in its design, The Emerson 56 Y-Frame Motor comes with a Y-Frame, indicating a special non-standard mounting configuration
Energy Efficiency
The Emerson 56 Y-Frame Motor operates at a higher efficiency level than standard motors. It has longer insulation and bearing lives, with lower heat output and vibration. With aggressive performance and lower failure rates, energy expenditures are greatly diminished, saving heavily on operating costs

Specs

Horsepower: 2/0.25 HP
Service Factor: 1.25 - 1.50
Voltage: 230V
Speed Settings: Dual Speed
Energy Efficiency: High Energy Efficiency
Flange Type: Square Flange
Rating Type: Full-Rated
Motor Frame: 56 Frame
Product Type: Pool Motor
Manufacturer: U.S. Motors Emerson
Product Type: Pool Part

Links

Emerson U.S. Motors Catalog

Warranty

See Owner's Manual for details
