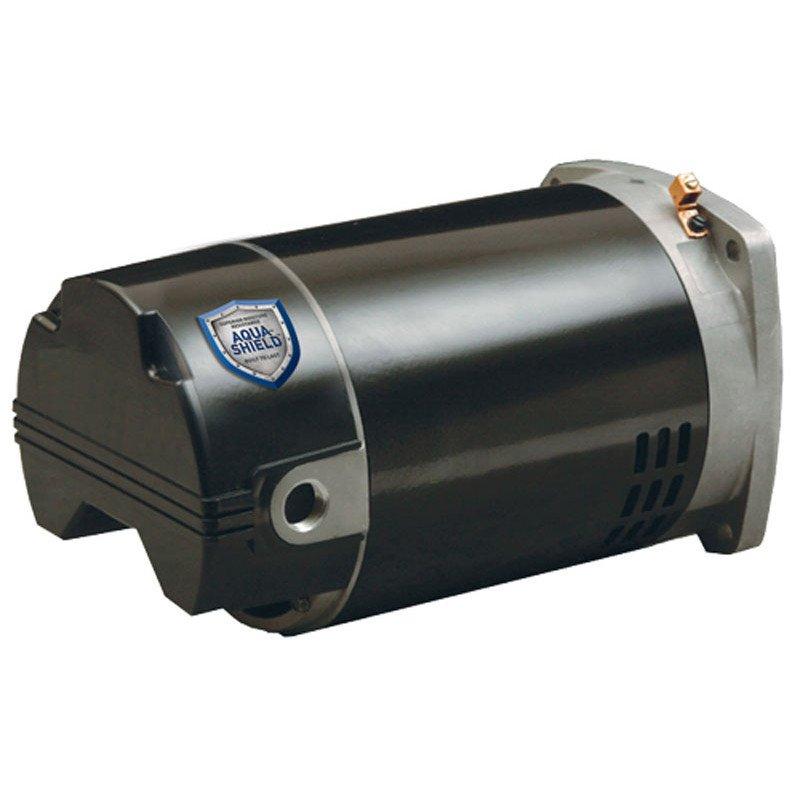

U.S. Motors - Emerson ASB848 Square Flange Single Speed 1HP Full Rated 56Y Pump Motor

Emerson ASB848 Square Flange Single Speed 1HP Full Rated 56Y Pump Motor
Emerson ASB848 Square Flange Single Speed 1HP Full Rated 56Y Pump Motor
Emerson ASB848 Square Flange Single Speed 1HP Full Rated 56Y Pump Motor
Emerson ASB848 Square Flange Single Speed 1HP Full Rated 56Y Pump Motor
Emerson ASB848 Square Flange Single Speed 1HP Full Rated 56Y Pump Motor
Emerson ASB848 Square Flange Single Speed 1HP Full Rated 56Y Pump Motor

U.S. Motors - Emerson ASB848 Square Flange Single Speed 1HP Full Rated 56Y Pump Motor

Item No. 623411
Manufacturer SKU: ASB848
5 out of 5 Customer Rating
U.S. Motor Emerson ASB848 Square Flange Single Speed 1HP Full Rated 56Y Pump Motor is a powerfully designed motor for your pool or spa. More Details
$199.99
Availability:
  • In Stock


Description

U.S. Motor Emerson ASB848 Square Flange Single Speed 1HP Full Rated 56Y Pump Motor is a powerfully designed motor for your pool or spa.
  • Two compartments
  • Shaft Threads: 1/2-20 UNF-2A
  • 50 degrees Celsius ambient
  • 1081 Design
  • Continuous Duty
  • Switchless design
  • Voltage selection device (dual voltage only)
  • Service Factor: 1.65
  • RPM: 3450
  • Length without Shaft: 11.74
  • 7.7/15.4A 115V/230V

Details

The Emerson 56 Y-Frame Square Flange motor is a powerfully designed motor for your pool or spa. Its Triple Bearing Protection prevents premature wear and tear and its sealed ball bearings provide additional support giving you long lasting performance. The Emerson 56 Y-Frame Square Flange motor has an open drip proof enclosure that keeps water from flowing into the motor and its rear mounted fan keeps it cool during operation. Its large 6.5 frame boasts a stainless steel shaft for extremely durable housing and its thermally protected, Class B insulated design keeps the motor cool to prevent overheating. The Emerson 56 Y-Frame Square Flange is a single speed pool and spa motor and its 1 HP rating delivers optimum performance.

Highlights

Single Phase
Featuring basic Single Phase wiring, the Emerson 56 Y-Frame Square Flange motor delivers efficient operation. Little maintenance is required and the Emerson 56 Y-Frame Square Flange motor is built to last
Y-Frame
Advanced in its design, the Emerson 56 Square Flange motor comes with a Y-Frame, indicating a special non-standard mounting configuration
Standard Efficiency
The Emerson 56 Y-Frame Square Flange motor is designed with standard efficiency, promising durability and quality performance while operating at an efficient level just below a premium model

Specs

Voltage: 120V / 240V
Voltage: 115V / 230V
Service Factor: 1.50 - 1.75
Pool Type: In Ground
Speed Settings: Single Speed
Motor Frame: 56Y Frame
Horsepower: 1 HP
Flange Type: Square Flange
Rating Type: Full-Rated
Energy Efficiency: Standard
Product Type: Pool Motor
Manufacturer: U.S. Motors Emerson
Product Type: Pool Pump


Warranty

See Owner's Manual for details
