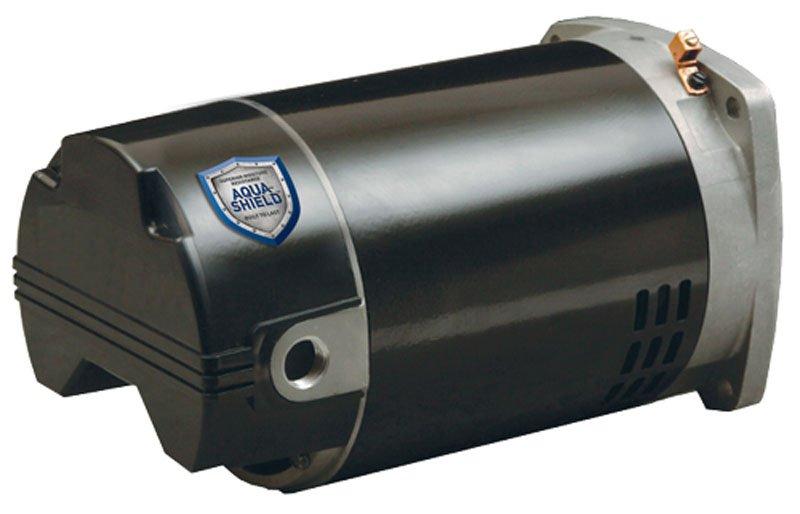

U.S. Motors - Emerson 56Y Square Flange Dual Speed 3/4 / 0.12HP Full Rated Pool and Spa Motor

Item No. 38518 | Manufacturer SKU: ASB2980
Item No. 38518 | Manufacturer SKU: ASB2980
U.S Motors  Emerson 56Y Square Flange Dual Speed 3/4  0.12HP Full Rated Pool and Spa Motor
U.S Motors  Emerson 56Y Square Flange Dual Speed 3/4  0.12HP Full Rated Pool and Spa Motor
$359.99

The Emerson 56 Y-Frame Square Flange motor is a powerfully designed motor for your pool or spa. More Details

subscription order icon Membership Available

The Emerson 56 Y-Frame Square Flange motor is a powerfully designed motor for your pool or spa.
  • Two compartments
  • Shaft Threads 1/2-20 UNF-2A
  • 50 degrees Celsius ambient
  • 1081 Design
  • Continuous Duty
  • Switchless design
  • Service Factor: 1.65
  • RPM: 3450/1725
  • 6.2/2.4A 230V
  • Length without Shaft: 12.3

The Emerson 56 Y-Frame Square Flange motor is a powerfully designed motor for your pool or spa. Its Triple Bearing Protection prevents premature wear and tear and its sealed ball bearings provide additional support giving you long lasting performance. The Emerson 56 Y-Frame Square Flange motor has an open drip proof enclosure that keeps water from flowing into the motor and its rear mounted fan keeps it cool during operation. Its large 6.5 frame boasts a stainless steel shaft for extremely durable housing and its thermally protected, Class B insulated design keeps the motor cool to prevent overheating. The Emerson 56 Y-Frame Square Flange is dual speed pool and spa motor and its 3/4 HP runs on 230V to deliver optimum performance.

Single Phase
Featuring basic Single Phase wiring, the Emerson 56 Y-Frame Square Flange motor delivers efficient operation. Little maintenance is required and the Emerson 56 Y-Frame Square Flange motor is built to last
Y-Frame
Advanced in its design, the Emerson 56 Square Flange motor comes with a Y-Frame, indicating a special non-standard mounting configuration
Energy Efficiency
The Emerson 56 Y-Frame Square Flange motor operates at a higher efficiency level than standard motors. It has longer insulation and bearing lives, with lower heat output and vibration. With aggressive performance and lower failure rates, energy expenditures are greatly diminished, saving heavily on operating costs

Pool Type: In Ground
Voltage: 240V
Service Factor: 1.50 - 1.75
Horsepower: 3/4 HP
Voltage: 230V
Energy Efficiency: High Energy Efficiency
Flange Type: Square Flange
Horsepower: 3/4 / 0.12 HP
Motor Frame: 56Y Frame
Speed Settings: Dual Speed
Rating Type: Full-Rated
Product Type: Pool Motor
Manufacturer: U.S. Motors Emerson

See Owner's Manual for details
