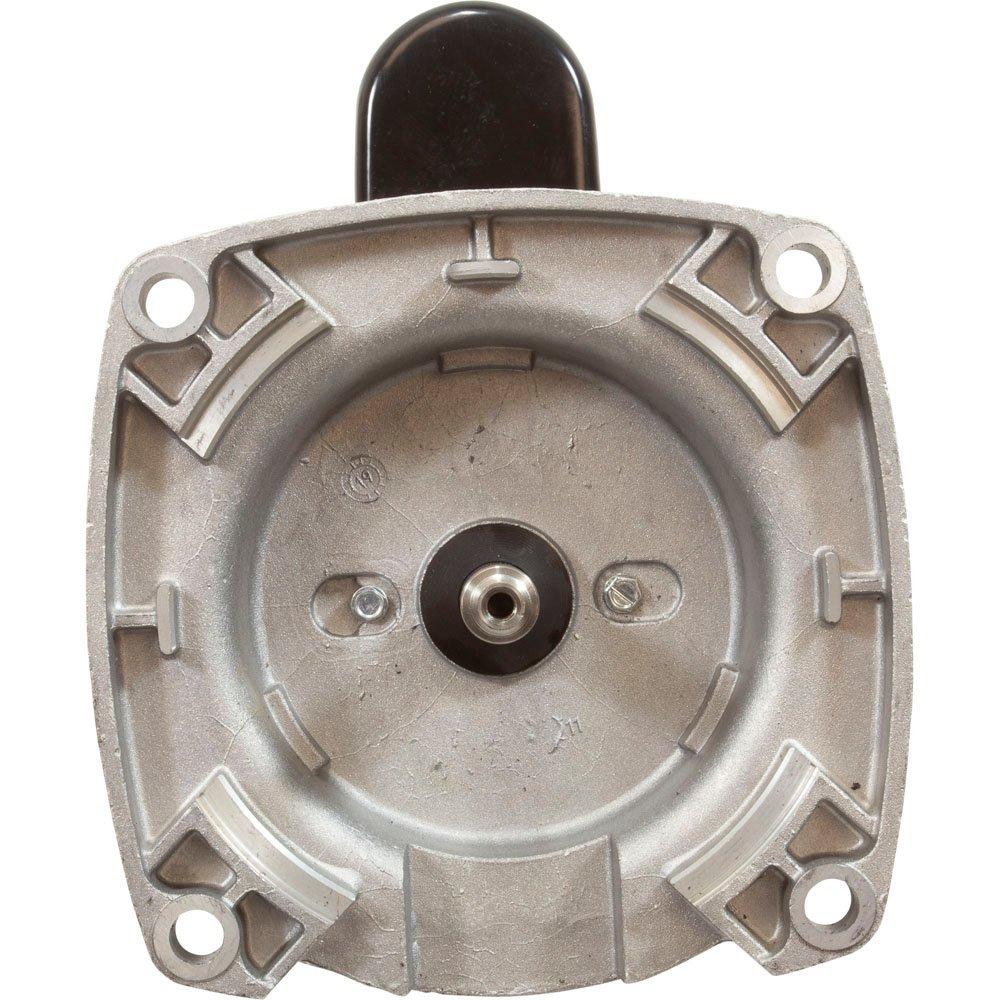

U.S. Motors - Emerson 56Y Square Flange 2-Speed 1.5/0.25HP Full Rated Pool and Spa Motor

Item No. 38634 | Manufacturer SKU: ASB2983
Item No. 38634 | Manufacturer SKU: ASB2983
U.S Motors Emerson 56Y Square Flange 2-Speed 1.5/0.25HP Full Rated Pool and Spa Motor
U.S Motors Emerson 56Y Square Flange 2-Speed 1.5/0.25HP Full Rated Pool and Spa Motor
U.S Motors Emerson 56Y Square Flange 2-Speed 1.5/0.25HP Full Rated Pool and Spa Motor
U.S Motors Emerson 56Y Square Flange 2-Speed 1.5/0.25HP Full Rated Pool and Spa Motor U.S Motors Emerson 56Y Square Flange 2-Speed 1.5/0.25HP Full Rated Pool and Spa Motor U.S Motors Emerson 56Y Square Flange 2-Speed 1.5/0.25HP Full Rated Pool and Spa Motor
$409.99

The Emerson 56 Y-Frame Square Flange motor is a powerfully designed motor for your pool or spa. More Details

subscription order icon Membership Available

The Emerson 56 Y-Frame Square Flange motor is a powerfully designed motor for your pool or spa.
  • Two compartments
  • Shaft Threads 1/2-20 UNF-2A
  • 50 degrees Celsius ambient
  • 1081 Design
  • Continuous Duty
  • Switchless design
  • Amps: 2.9-2.6/1.3
  • RPM: 3450/1725
  • Length without Shaft: 13.05
  • 10.0/3.5A 230V

The Emerson 56 Y-Frame Square Flange motor is a powerfully designed motor for your pool or spa. Its Triple Bearing Protection prevents premature wear and tear and its sealed ball bearings provide additional support giving you long lasting performance. The Emerson 56 Y-Frame Square Flange motor has an open drip proof enclosure that keeps water from flowing into the motor and its rear mounted fan keeps it cool during operation. Its large 6.5 frame boasts a stainless steel shaft for extremely durable housing and its thermally protected, Class B insulated design keeps the motor cool to prevent overheating. The Emerson 56 Y-Frame Square Flange is dual speed pool and spa motor and its 1.5/0.25 HP runs on 230V to deliver optimum performance.

Single Phase
Featuring basic Single Phase wiring, the Emerson 56 Y-Frame Square Flange motor delivers efficient operation. Little maintenance is required and the Emerson 56 Y-Frame Square Flange motor is built to last
Y-Frame
Advanced in its design, the Emerson 56 Square Flange motor comes with a Y-Frame, indicating a special non-standard mounting configuration
Energy Efficiency
The Emerson 56 Y-Frame Square Flange motor operates at a higher efficiency level than standard motors. It has longer insulation and bearing lives, with lower heat output and vibration. With aggressive performance and lower failure rates, energy expenditures are greatly diminished, saving heavily on operating costs

Energy Efficiency: High Energy Efficiency
Pool Type: In Ground
Service Factor: 1.50 - 1.75
Horsepower: 1.5/0.25 HP
Horsepower: 1-1/2 HP
Flange Type: Square Flange
Motor Frame: 56Y Frame
Voltage: 240V
Voltage: 230V
Speed Settings: Dual Speed
Rating Type: Full-Rated
Product Type: Pool Motor
Manufacturer: U.S. Motors Emerson
Product Type: Pool Part

See Owner's Manual for details
