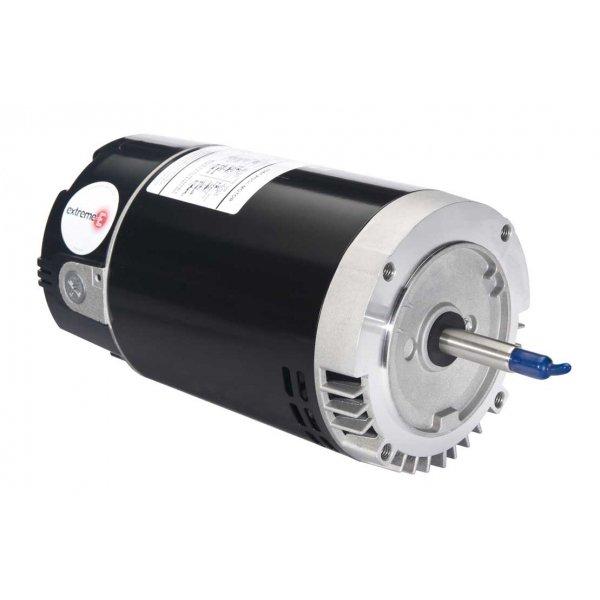

U.S. Motors - Emerson 56J TriStar Single Speed 2HP Full Rated Pool and Spa Motor

Item No. 38513 | Manufacturer SKU: ESN1202
Item No. 38513 | Manufacturer SKU: ESN1202
U.S Motors  Emerson 56J TriStar Single Speed 2HP Full Rated Pool and Spa Motor
$539.99

The Emerson 56 Frame C-Flange Hayward TriStar Motor for spas and pools offers high energy efficiency in replacement motors. More Details

subscription order icon Membership Available

The Emerson 56 Frame C-Flange Hayward TriStar Motor for spas and pools offers high energy efficiency in replacement motors.
  • Two Compartment
  • Triple Bearing Protection
  • 1081 Design
  • Shaft Threads - 7/16-20 UNF-2A
  • Class B Insulated
  • Continuous Duty
  • 60 Degree C Ambient
  • Service Factor: 1.35
  • RPM: 3450
  • Amps: 13.0-11.8A
  • Length without Shaft: 11.77
  • Voltage: 208-230V

The Emerson 56 Frame C-Flange Hayward TriStar Motor for spas and pools offers high energy efficiency in replacement motors. Operating consistently at a single speed, the Emerson 56 C-Flange Motor is highly dependable, running at 2HP and 208-230V. Sporting an open drip proof design, it is built with ventilation openings to prevent water from entering and damaging the electric motor. It models a stainless steel shaft and is thermally protected for the most reliable service available. The Emerson 56 C-Flange Motor also offers the best in premium energy efficiency, providing aggressive operation as one of the best replacement motors on the market.

Single Phase
Featuring basic Single Phase wiring, the Emerson 56 C-Flange Motor delivers efficient operation. Little maintenance is required and the Emerson 56 C-Flange Dual Speed Motor is built to last
J-Frame
The Emerson 56 C-Flange Motor features a J-Frame that's ideal for jet pump service and is completely versatile with its threaded shaft and 56 C-Flange face
Energy Efficiency
The Emerson 56 C-Flange Motor operates at a higher efficiency level than standard motors. It has longer insulation and bearing lives, with lower heat output and vibration. With aggressive performance and lower failure rates, energy expenditures are greatly diminished, saving heavily on operating costs

Speed Settings: Single Speed
Flange Type: C Flange
Horsepower: 2 HP
Voltage: 208 - 230V
Energy Efficiency: High Energy Efficiency
Service Factor: 1.25 - 1.50
Rating Type: Full-Rated
Product Type: Pool Motor
Motor Frame: 56 Frame
Manufacturer: U.S. Motors

See Owner's Manual for details
