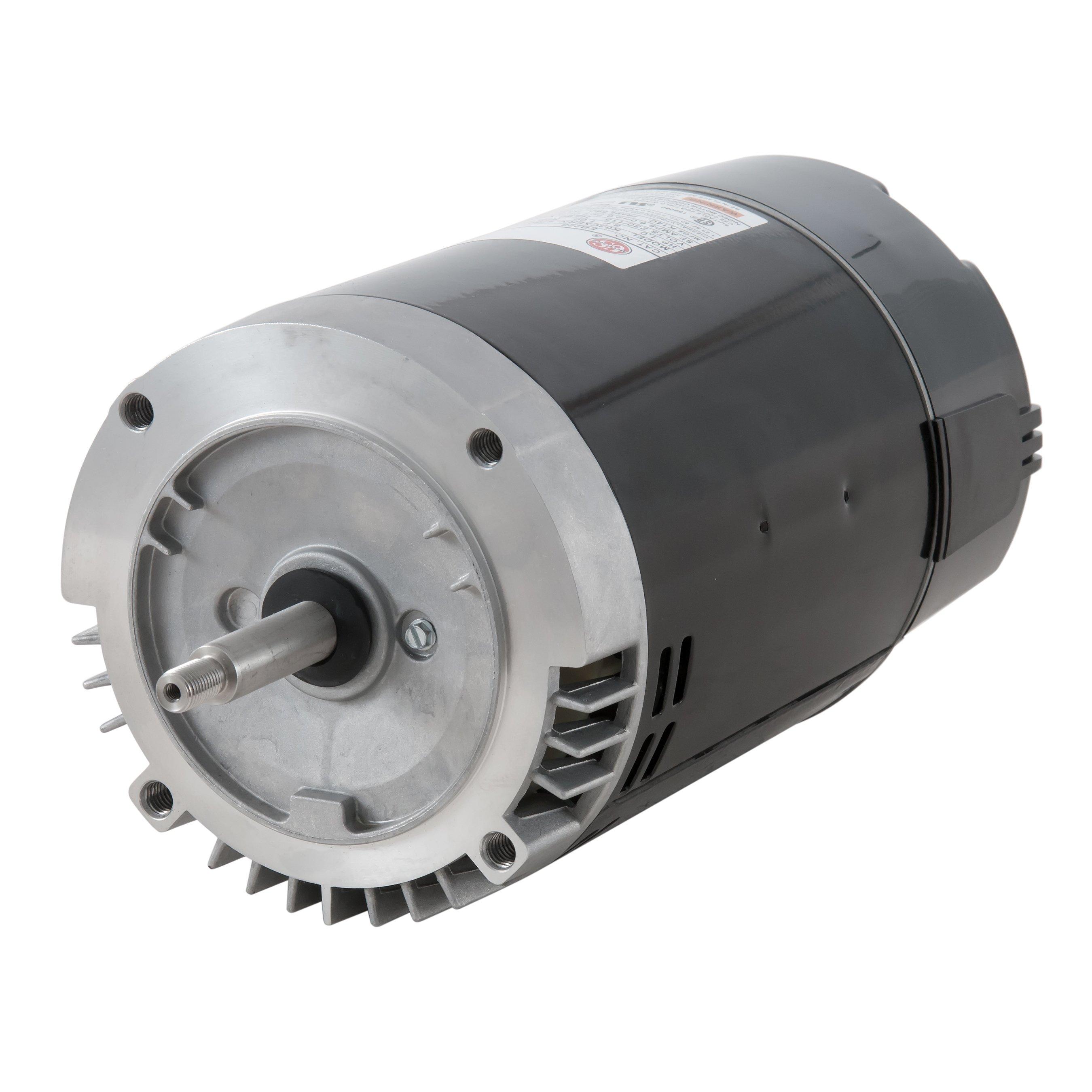

U.S. Motors - Emerson 56J C-Flange Single Speed 1-1/2HP Up-Rated Pool and Spa Motor

Item No. 38565 | Manufacturer SKU: EB229
Item No. 38565 | Manufacturer SKU: EB229
U.S Motors  Emerson 56J C-Flange Single Speed 1-1/2HP Up-Rated Pool and Spa Motor
U.S Motors  Emerson 56J C-Flange Single Speed 1-1/2HP Up-Rated Pool and Spa Motor
$256.99

The Emerson 56 C-Flange Motor offers a sleek style with high-quality performance, designed to replace your existing pool or spa motor. More Details

subscription order icon Membership Available

The Emerson 56 C-Flange Motor offers a sleek style with high-quality performance, designed to replace your existing pool or spa motor.
  • Two Compartment
  • Shaft Threads - 7/16-20 UNF-2A
  • 50 Degree C Ambient
  • 1081 Design
  • Continuous Duty
  • Class B Insulated
  • Open Dripproof
  • Thermally Protected
  • Service Factor: 1
  • RPM: 3450
  • Length without Shaft: 10.77
  • 7.0/14.0A 115V/230V

The Emerson 56 C-Flange Motor offers a sleek style with high-quality performance, designed to replace your existing pool or spa motor. The Emerson 56 C-Flange Motor is up-rated, operating with more efficiency at a higher level than full-rated models, making it one of the most reliable models on the market. With triple bearing protection and sealed ball bearings, it is constructed with dependability in mind, sporting stainless steel shafts as well as a state of the art switchless design. The Emerson 56 C-Flange is an excellent choice in motor replacement, promising efficiency and consistent presentation with 1-1/2"P and 115V/230V.

Single Phase
Featuring basic Single Phase wiring, the Emerson 56 C-Flange Motor delivers efficient operation. Little maintenance is required and the Emerson 56 C-Flange Motor is built to last
C-Frame
The Emerson 56 C-Flange Motor boasts a C-Frame body with a threaded shaft for durable mounting and stability
Standard Efficiency
Emerson 56 C-Flange Motor is designed with standard efficiency, promising durability and quality performance while operating at an efficient level just below a premium model

Speed Settings: Single Speed
Flange Type: J Flange
Pool Type: In Ground
Service Factor: 1.00 - 1.25
Voltage: 115V / 230V
Horsepower: 1-1/2 HP
Voltage: 120V / 240V
Rating Type: Up-Rated
Motor Frame: 56 Frame
Energy Efficiency: Standard
Product Type: Pool Motor
Manufacturer: U.S. Motors Emerson

See Owner's Manual for details
