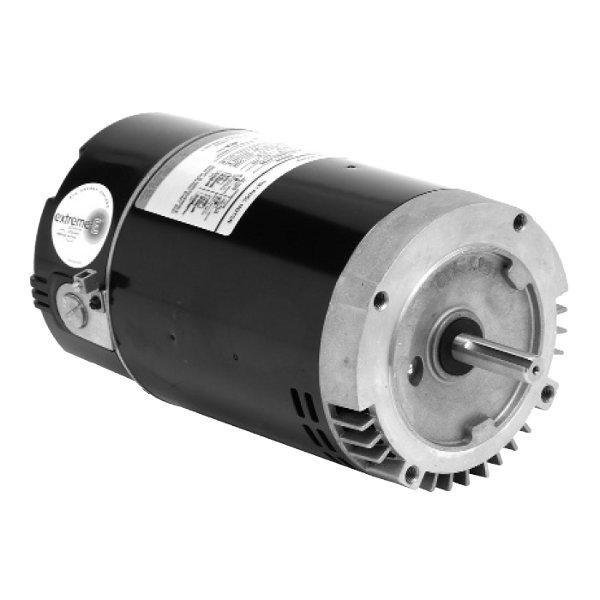

U.S. Motors - Emerson 56J C-Flange 1.0/0.12HP Full Rated Pool and Spa Motor
$529.99
The Emerson 56 J-Frame Motor is a distinguished choice in pool and spa motor replacements.
More Details
Membership Available
The Emerson 56 J-Frame Motor is a distinguished choice in pool and spa motor replacements.
- Two Compartment
- Shaft Threads 7/16-20 UNF-2A
- 50 Degree C Ambient
- 1081 Design
- Continuous Duty
- Class B Insulated
- 303 Stainless Steel Shaft
- Thermally Protected
- 6.5 Diameter Frame
- Fully Integrated Motor Timer
- Program for Low and High Speeds
- High/Low Speed Override
- California Title 20 Compliant
- 6.5/1.3A 230V
The Emerson 56 J-Frame Motor is a distinguished choice in pool and spa motor replacements. Designed with premium energy efficient operation, the Emerson 56 J-Frame Motor is built with triple bearing protection and sealed ball bearings for durability. It includes two settings: Monday to Friday and Saturday/Sunday options and has been manufactured with a switchless design meant to increase efficiency and diminish noisy operation. This motor type is open drip proof with ventilation openings to prevent water entrance and damage. The Emerson 56 J-Frame Motor has also been designed with a freeze sensor, engineered to protect your motor against freeze damage. This motor has a 1.0 HP and .12HP rating with 230V.
Featuring basic Single Phase wiring, the Emerson 56 Motor delivers efficient operation. Little maintenance is required and it is built to last
The Emerson 56 Motor features a J-Frame thats ideal for ojet pump" service and is completely versatile with its threaded shaft and 56 C-Flange face
The Emerson 56 Motor operates at a higher efficiency level than standard motors. It has longer insulation and bearing lives, with lower heat output and vibration. With aggressive performance and lasting performance rating, energy expenditures are greatly diminished, saving heavily on operating costs
| Speed Settings: | Single Speed |
| Horsepower: | 1.0/0.12 HP |
| Service Factor: | 1.25 - 1.50 |
| Flange Type: | C Flange |
| Voltage: | 230V |
| Energy Efficiency: | High Energy Efficiency |
| Rating Type: | Full-Rated |
| Product Type: | Pool Motor |
| Motor Frame: | 56 Frame |
| Manufacturer: | U.S. Motors Emerson |
See Owner's Manual for details
