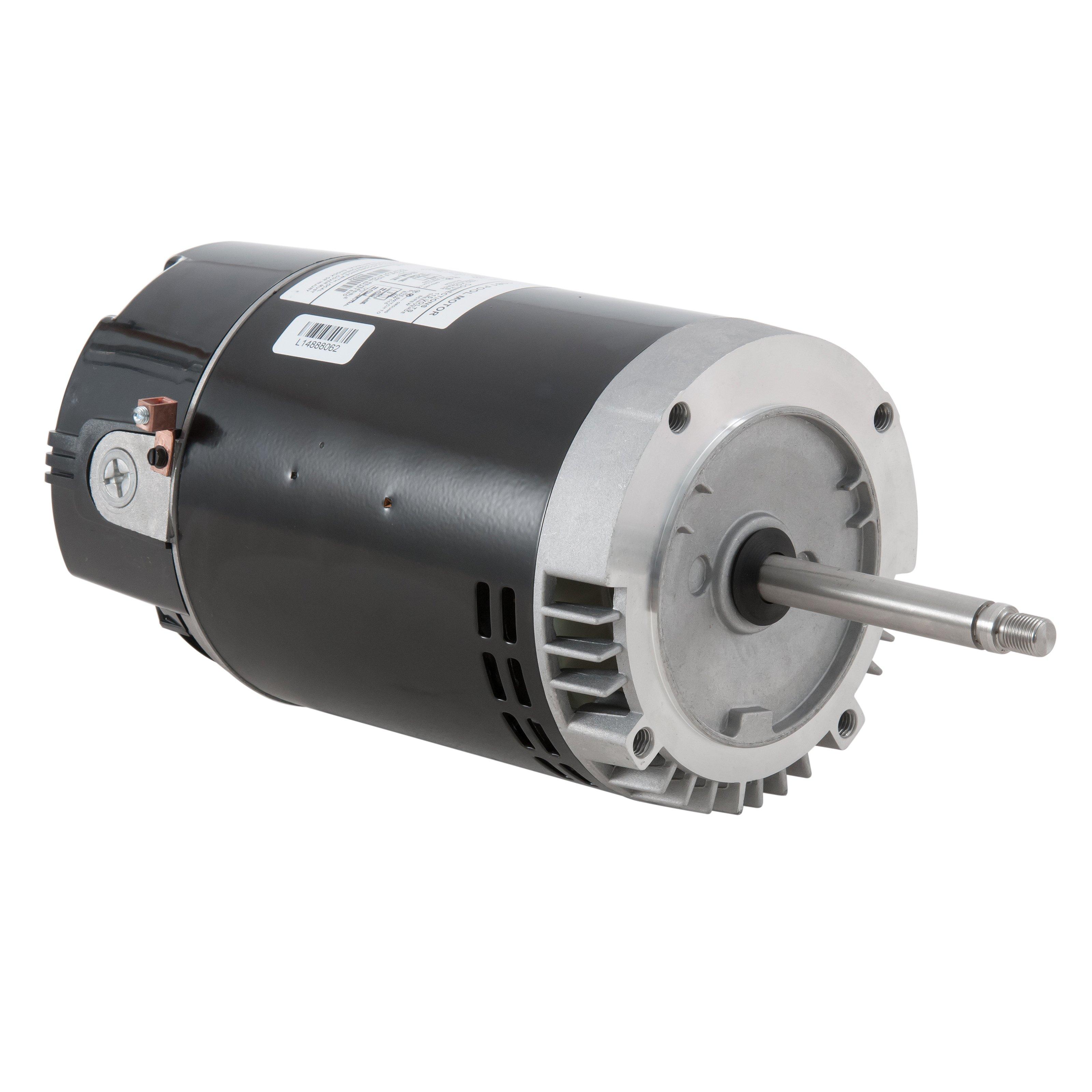

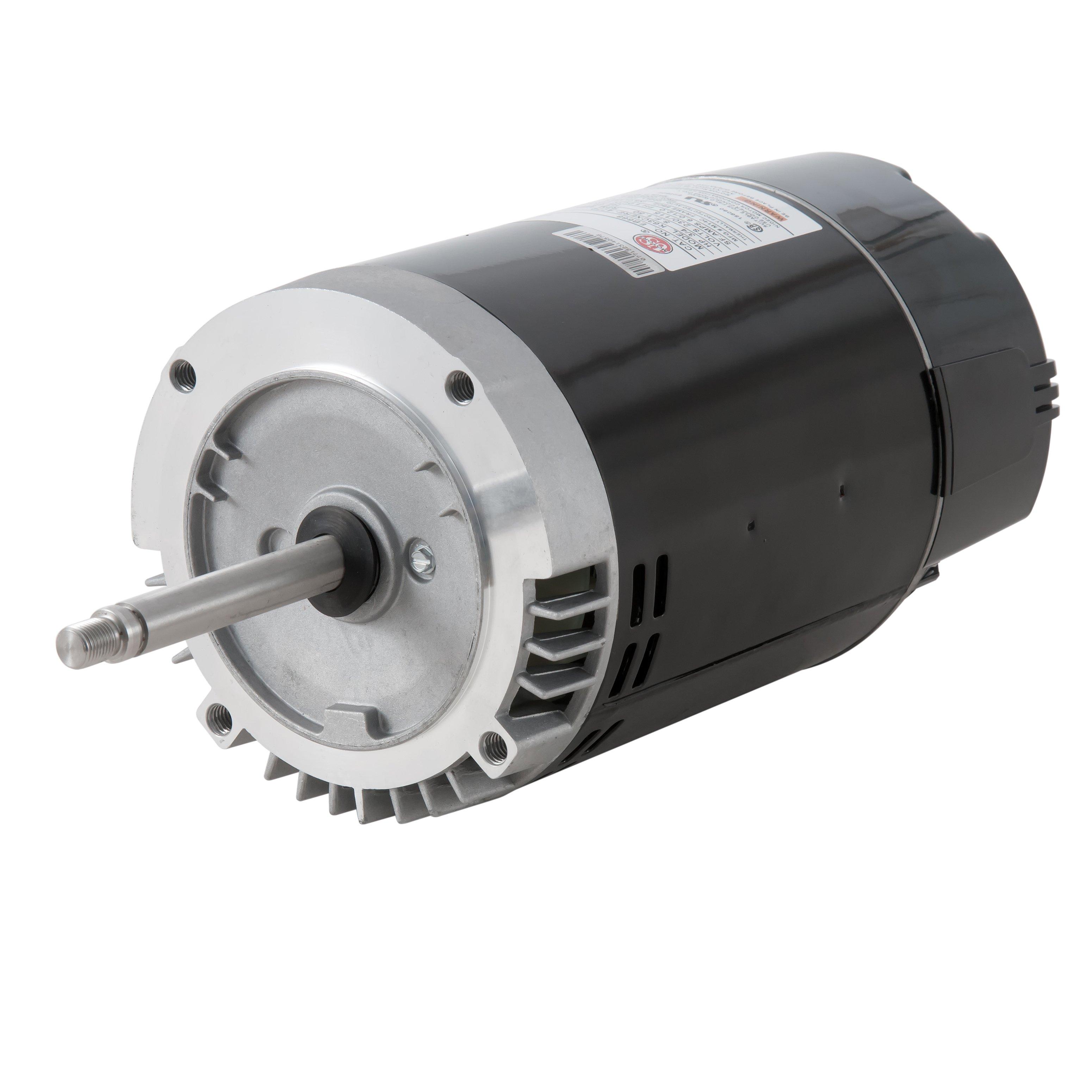

U.S. Motors - Emerson 56CZ Single Speed 3/4HP Full Rated Pool Booster Pump Replacement Motor

Item No. 61003 | Manufacturer SKU: EB668
Item No. 61003 | Manufacturer SKU: EB668
U.S Motors Emerson 56CZ Single Speed 3/4HP Full Rated Pool Booster Pump Replacement Motor
U.S Motors Emerson 56CZ Single Speed 3/4HP Full Rated Pool Booster Pump Replacement Motor
U.S Motors Emerson 56CZ Single Speed 3/4HP Full Rated Pool Booster Pump Replacement Motor
U.S Motors Emerson 56CZ Single Speed 3/4HP Full Rated Pool Booster Pump Replacement Motor U.S Motors Emerson 56CZ Single Speed 3/4HP Full Rated Pool Booster Pump Replacement Motor U.S Motors Emerson 56CZ Single Speed 3/4HP Full Rated Pool Booster Pump Replacement Motor
$249.99

The Emerson 56 CZ-Frame Motor is a replacement motor for your pool cleaner booster pump. More Details

subscription order icon Membership Available

The Emerson 56 CZ-Frame Motor is a replacement motor for your pool cleaner booster pump.
  • Shaft Threads - 1/2-20 UNF-2A
  • 50 Degree C Ambient
  • 1081 Design
  • 303 Stainless Steel Shaft
  • Service Factor: 1.5
  • RPM: 3450
  • Voltage selection device (dual voltage only)
  • Amps: 6.0/12.0
  • 6.0/12.0A 115V/230V
  • Length without Shaft: 10.77
Installation Instructions:
  • Ensure the pool motor is compatible with your pool pump.
  • Turn pump power off during replacement.
  • Check voltage requirements on your current setup.
  • Always replace the mechanical pump seal. It's recommended to replace all gaskets when replacing the motor.
  • Turn on the pump to test for leaks and pump operation.
  • Please reference additional installation instructions in owner's manual in Guides and Documentation section below.
  • Please Note: We recommend professional installation or the manufacturer warranty may be void. See Warranty section below.

The Emerson 56 CZ-Frame Motor is a replacement motor for your pool cleaner booster pump. Similar to spa and pool replacement motors, the Emerson 56 CZ-Frame Motor is a two-compartment model with a voltage selection device, running at 3/4HP and 115V/230V. It is Class B-insulated for efficient operation and has been designed with both sealed ball bearing sand triple bearing protection. The Emerson pool cleaner replacement motor has an open drip proof design for water damage prevention and is thermally protection. As an efficient model, the Emerson 56 CZ-Frame motor offers a dependable option in mechanical pool equipment.

Standard Efficiency
The Emerson 56 CZ-Frame Motor is designed with standard efficiency, promising durability and quality performance while operating at an efficient level just below a premium model
Single Phase
Featuring basic Single Phase wiring, the Emerson 56 CZ-Frame Motor delivers efficient operation. Little maintenance is required and the Emerson 56 CZ-Frame Motor is built to last
CZ-Frame
Designed with CZ-face mounted motor, Emerson 56 CZ-Frame Motor accommodates a specific bolt pattern on the shaft end of the motor's design, illustrated as a ?bolt circle". Threaded mounting holes are also present in the face of the motor. The Z aspect of a CZ motor indicates your motor has a specially designed shaft for superior dependability

Speed Settings: Single Speed
Voltage: 115V / 230V
Service Factor: 1.50 - 1.75
Voltage: 120V / 240V
Flange Type: J Flange
Horsepower: 3/4 HP
Rating Type: Full-Rated
Energy Efficiency: Standard
Motor Frame: 56 Frame
Product Type: Pool Motor
Manufacturer: U.S. Motors Emerson
Replacement For: Pentair
Pump Speed: Single
Service Factor: 1.5
Total Horsepower: 1.13 THP

See Owner's Manual for details
