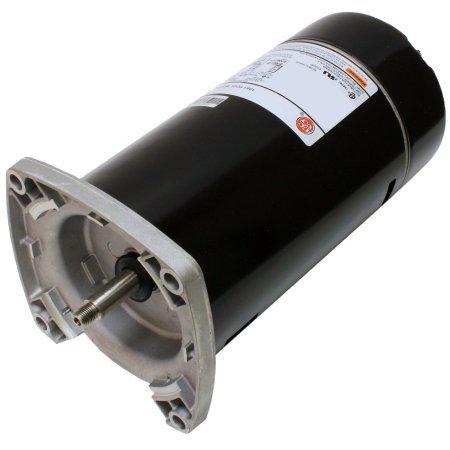

U.S. Motors - Emerson 56 Y-Frame Square Flange 3-Phase 2HP Full-Rated Pool and Spa Motor

Emerson 56 Y-Frame Square Flange 3-Phase 2HP Full-Rated Pool and Spa Motor

U.S. Motors - Emerson 56 Y-Frame Square Flange 3-Phase 2HP Full-Rated Pool and Spa Motor

Item No. 627244
Manufacturer SKU: EH637
4.4 out of 5 Customer Rating
The Emerson 56 Y-Frame Square Flange boasts efficient performance ensures the motor is protected and stays dry. More Details
$314.99
Availability:
  • In Stock


Description

The Emerson 56 Y-Frame Square Flange boasts efficient performance ensures the motor is protected and stays dry.
  • Triple Bearing Protection
  • Class B Insulated
  • Continuous Duty
  • Rated for 50Hz, 1.0 SF
  • Service Factor: 1.3
  • RPM: 3450
  • Length without Shaft: 11.02
  • 7.0-6.6/3.3A 208-230/460V

Details

The Emerson 56 Y-Frame Square Flange boasts efficient performance with its single compartment and open drip proof enclosure to ensure the motor is protected and stays dry. Perfect for your pool or spa, the Emerson 56 Y-Frame Square Flange motor is designed to last with its stainless steel shaft and sealed ball bearings. Its threaded shaft allows for a secure fit while providing a stronger structure. Featuring an effective 2 HP and three phase wiring, you can be sure to get consistent and reliable operation.

Highlights

Three Phase
The Emerson 56 Y-Frame Square Flange runs steady for dependable performance. Its continuous Three Phase provides constant power with no internal starting switch and is the ultimate in reliability
Y-Frame
Advanced in its design, the Emerson 56 Y-Frame Square Flange comes with a Y-Frame, indicating a special non-standard mounting configuration
Standard Efficiency
The Emerson 56 Y-Frame Square Flange is designed with standard efficiency, promising durability and quality performance while operating at an efficient level just below a premium model

Specs

Flange Type: Square Flange
Flange Type: C Flange
Horsepower: 2 HP
Speed Settings: Single Speed
Service Factor: 1.25 - 1.50
Voltage: 208 - 230V / 460V
Rating Type: Up-Rated
Rating Type: Full-Rated
Product Type: Pool Part
Energy Efficiency: Standard
Motor Frame: 56 Frame
Manufacturer: U.S. Motors Emerson


Warranty

See Owner's Manual for details
