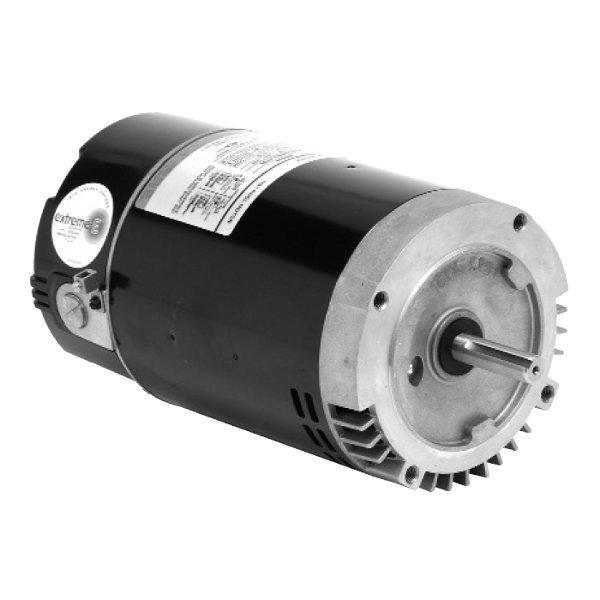

U.S. Motors - Emerson 56 J-Frame C-Flange 2/0.25HP Full Rated Pool and Spa Motor

U.S Motors Emerson 56 J-Frame C-Flange 2/0.25HP Full Rated Pool and Spa Motor

U.S. Motors - Emerson 56 J-Frame C-Flange 2/0.25HP Full Rated Pool and Spa Motor

Item No. 38583
Manufacturer SKU: ASB2979T
3.8 out of 5 Customer Rating
The Emerson 56 J-Frame Motor is a distinguished choice in pool and spa motor replacements. More Details

subscription order icon Subscription Available

$469.99

Standard Shipping - Ship To Home
Want it today?

Description

The Emerson 56 J-Frame Motor is a distinguished choice in pool and spa motor replacements.
  • Two Compartment
  • Shaft Threads 7/16-20 UNF-2A
  • 50 Degree C Ambient
  • 1081 Design
  • Continuous Duty
  • Class B Insulated
  • 303 Stainless Steel Shaft
  • Thermally Protected
  • 6.5 Diameter Frame
  • Fully Integrated Motor Timer
  • Program for Low and High Speeds
  • High/Low Speed Override
  • California Title 20 Compliant
  • 10.0/2.1A, 230V

Details

The Emerson 56 J-Frame Motor is a distinguished choice in pool and spa motor replacements. Designed with premium energy efficient operation, the Emerson 56 J-Frame Motor is built with triple bearing protection and sealed ball bearings for durability. It includes two settings: Monday to Friday and Saturday/Sunday options and has been manufactured with a switchless design meant to increase efficiency and diminish noisy operation. This motor type is open drip proof with ventilation openings to prevent water entrance and damage. The Emerson 56 J-Frame Motor has also been designed with a freeze sensor, engineered to protect your motor against freeze damage. It includes speeds of 2 HP and .25HP with 230V.

Highlights

Single Phase
Featuring basic Single Phase wiring, the Emerson 56 Motor delivers efficient operation. Little maintenance is required and it is built to last
J-Frame
The Emerson 56 Motor features a J-Frame thats ideal for ojet pump" service and is completely versatile with its threaded shaft and 56 C-Flange face
Energy Efficiency
The Emerson 56 Motor operates at a higher efficiency level than standard motors. It has longer insulation and bearing lives, with lower heat output and vibration. With aggressive performance and lower failure rates, energy expenditures are greatly diminished, saving heavily on operating costs

Specs

Service Factor: 1.00 - 1.25
Speed Settings: Single Speed
Voltage: 230V
Horsepower: 2/0.25 HP
Energy Efficiency: High Energy Efficiency
Flange Type: C Flange
Rating Type: Full-Rated
Product Type: Pool Motor
Motor Frame: 56 Frame
Manufacturer: U.S. Motors Emerson

Links

Emerson U.S. Motors Catalog

Warranty

See Owner's Manual for details
