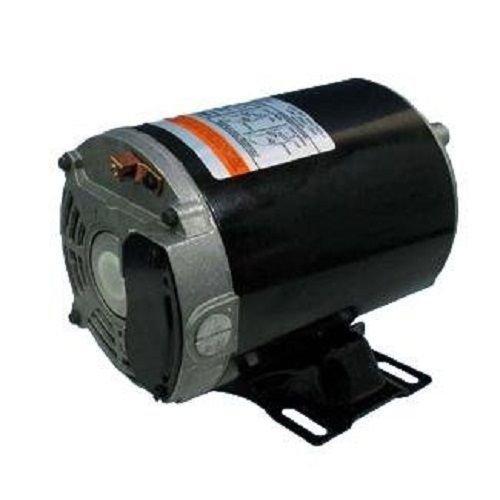

U.S. Motors - Emerson 48Y Thru-Bolt 2-Speed 2/0.25HP Full Rated Pool and Spa Motor

Item No. 38484 | Manufacturer SKU: SPH20FL2CS
Item No. 38484 | Manufacturer SKU: SPH20FL2CS
U.S Motors  Emerson 48Y Thru-Bolt 2-Speed 2/0.25HP Full Rated Pool and Spa Motor
U.S Motors  Emerson 48Y Thru-Bolt 2-Speed 2/0.25HP Full Rated Pool and Spa Motor
$369.99

The Emerson 48 Frame Thru-Bolt Pool and Spa Motor is programmed to operate at two different speeds with outstanding quality and efficiency. More Details

subscription order icon Membership Available

The Emerson 48 Frame Thru-Bolt Pool and Spa Motor is programmed to operate at two different speeds with outstanding quality and efficiency.
  • Class F Insulated
  • 50 Degree C Ambient
  • 3 O'clock Conduit
  • 3/8-16 UNC 2A RH Shaft Thread
  • Service Factor: 1
  • RPM: 3450/1725
  • Length without Shaft: 10.2
  • 10.5/2.6A 230V
  • Allied SKU: 1-20-0011

With both 2 and .25 HP, the Emerson 48 Frame Thru-Bolt Pool and Spa Motor is programmed to operate at two different speeds with outstanding quality and efficiency. Engineered with open drip proof technology, the Emerson 48 Motor is designed with ventilation openings, preventing water from damaging the motor while keeping it long lasting and reliable. Its soft starter model ensures the voltage torque is gently delivered throughout the motor, gaining power gradually to ensure maximum performance. Thermally protected, it can withstand harsh conditions and can install easily with its thru bolt mounting. For the best in replacement motors, Emerson offers the 48 Frame with 230V for reliable quality.

Single Phase
Featuring basic Single Phase wiring, the Emerson 48 Y-Frame Thru-Bolt motor delivers efficient operation. Little maintenance is required and the Emerson 48 Y-Frame Thru-Bolt is built to last
Y-Frame
Advanced in its design, the Emerson 48 Y-Frame Thru-Bolt motor comes with a Y-Frame, indicating a special non-standard mounting configuration
Standard Efficiency
The Emerson 48 Y-Frame Thru-Bolt motor is designed with standard efficiency, promising durability and quality performance while operating at an efficient level just below a premium model

Pool Type: Above Ground
Horsepower: 2 HP
Speed Settings: Dual Speed
Service Factor: 1.00 - 1.25
Flange Type: Thru Bolt Mount
Voltage: 230V
Pool Type: Spa/Hot Tub
Rating Type: Full-Rated
Product Type: Spa Part
Energy Efficiency: Standard
Motor Frame: 48 Frame
Manufacturer: U.S. Motors Emerson
Product Type: Pool Part

See Owner's Manual for details
